SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for RH Side)  INSPECTION

1.5,0.25 1.917,0.5 0.417,0.25 1.125,1.813 1.375,1.229 true 1.729,1.813 1.563,1.229 true 0.188,0.135 0.375,0.323 0.188,0.188 10 false *a 1.573,0.313 2.031,0.51 0.458,0.198 10 false O84 0.938,1.833 1.552,2.031 0.615,0.198 10 false RBR+ 1.573,1.833 2.188,2.031 0.615,0.198 10 false RBR-

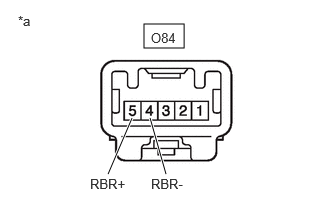

*a	Component without harness connected (Rear Seat Inner Belt Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O84-5(RBR+) - O84-4(RBR-)	Rear RH seat belt unfastened	Below 1 Ω
	Rear RH seat belt fastened	10 kΩ or higher

If the result is not as specified, replace the rear seat inner belt assembly.
