RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509300 FRONT SEAT OUTER BELT ASSEMBLY G

SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73220 1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

a.

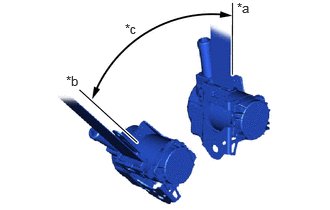

B591117C01
2.469,0 2.781,0.198 0.313,0.198 10 false *a 0.688,0.76 1,0.958 0.313,0.198 10 false *b 1.302,0.219 1.615,0.417 0.313,0.198 10 false *c
*a Unlock
*b Lock
*c 45°


Before installing the front seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the front seat outer belt assembly.
