RM38T0EC _58 Vehicle Interior _114203 SEAT _0509292 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT FRONT SEAT ASSEMBLY(for Power Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

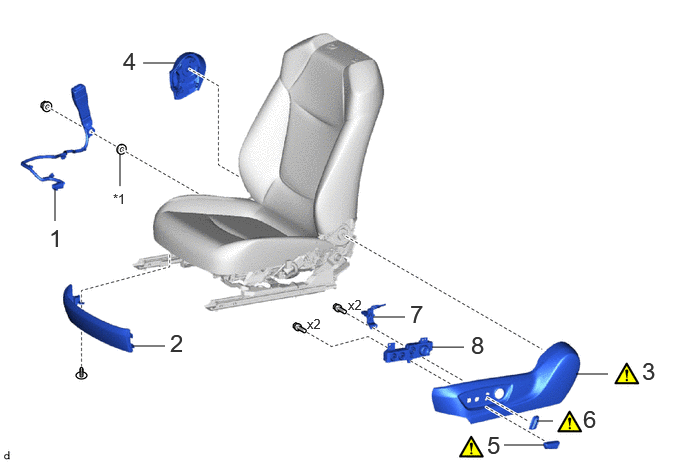

COMPONENTS (DISASSEMBLY)

1.49,0.656 1.823,0.656 false 6,3.896 6.333,3.896 false 5.594,4.385 5.76,4.385 false 5.25,4.635 5.667,4.635 false 4.5,3.615 4.833,3.615 false 1.385,3.604 1.719,3.604 false 3.885,3.302 4.219,3.302 false 1.25,1.604 1.25,1.938 false 0.573,1.969 0.573,2.302 false 0.51,2.333 0.781,2.615 0.271,0.281 18 false 1 1.771,3.427 2.031,3.698 0.26,0.271 18 false 2 6.688,3.719 6.969,3.969 0.281,0.25 18 false 3 1.281,0.49 1.552,0.75 0.271,0.26 18 false 4 5.073,4.49 5.365,4.76 0.292,0.271 18 false 5 6.073,4.219 6.354,4.479 0.281,0.26 18 false 6 4.271,3.125 4.521,3.396 0.25,0.271 18 false 7 4.906,3.448 5.146,3.708 0.24,0.26 18 false 8 3.198,3.292 3.51,3.49 0.313,0.198 10 false x2 3.625,3.094 3.938,3.292 0.313,0.198 10 false x2 1.177,1.99 1.448,2.271 0.271,0.281 10 false *1

Procedure		Part Name Code
1	FRONT SEAT INNER BELT ASSEMBLY	73240	-	-	-
2	FRONT SEAT FRONT CUSHION SHIELD	71868N	-	-	-
3	FRONT SEAT CUSHION SHIELD	71812D	(202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0008,)	-	-
4	FRONT SEAT INNER CUSHION SHIELD	71862	-	-	-
5	REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	84921R	(202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0073,)	-	-
6	RECLINING POWER SEAT SWITCH KNOB	84921Q	(202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0072,)	-	-
7	SEAT ADJUSTER SHIELD CLAMP BRACKET	72714	-	-	-
8	FRONT POWER SEAT SWITCH	84922	-	-	-

Front Seat Belt Anchor Plate

4.979,1.302 5.313,1.302 false 5.396,1.125 5.677,1.479 0.281,0.354 18 false 9 5.302,2.656 5.563,2.875 0.26,0.219 10 false x4

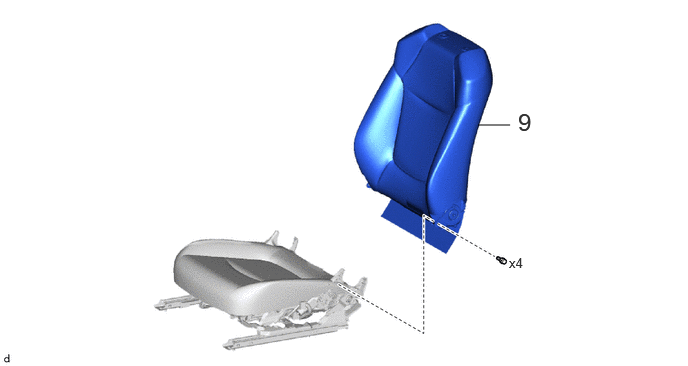

Procedure		Part Name Code
9	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-

0.167,0.167 4.417,5.583 4.25,5.417 0.167,2.917 4.417,2.917 false 4.417,1.583 4.75,1.583 false 4.417,4.25 4.75,4.25 false 1.958,1 2.292,1 false 1.885,3.75 2.219,3.75 false 2.667,2.052 2.667,2.385 false 2.656,4.771 2.656,5.104 false 6.167,1.833 6.5,1.833 false 5.948,1.573 6.365,1.573 6.365,1.573 6.365,1.823 false 0.26,0.219 0.635,0.458 0.375,0.24 12 false *A 0.292,3.01 0.667,3.25 0.375,0.24 12 false *B 2.333,0.823 2.823,1.198 0.49,0.375 18 false 12 2.281,3.573 2.771,3.948 0.49,0.375 18 false 12 4.823,1.427 5.313,1.802 0.49,0.375 18 false 11 4.813,4.073 5.302,4.448 0.49,0.375 18 false 11 6.573,1.667 7.063,2.042 0.49,0.375 18 false 10 2.583,2.427 2.896,2.625 0.313,0.198 10 false *1 2.573,5.125 2.885,5.323 0.313,0.198 10 false *1

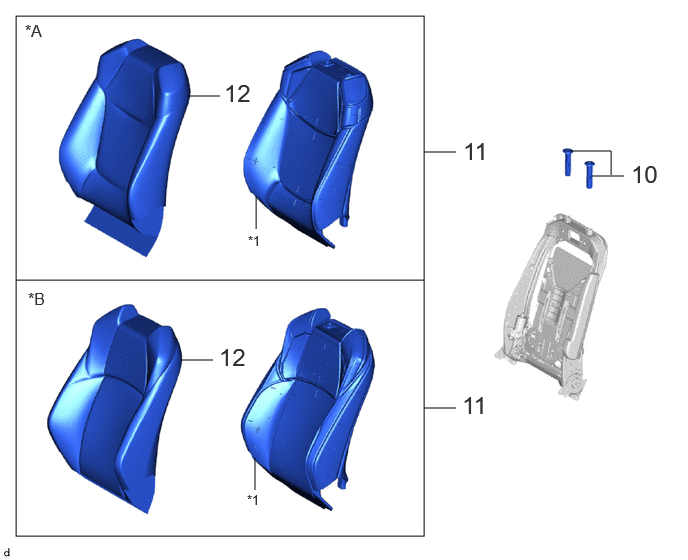

Procedure		Part Name Code
10	FRONT SEAT HEADREST SUPPORT	71931	-	-	-
11	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-	-	-
12	SEPARATE TYPE FRONT SEATBACK COVER	7181B	-	-	-

*A	for TFTM Made	*B	for GTMC Made
*1	SEPARATE TYPE FRONT SEATBACK PAD	-	-

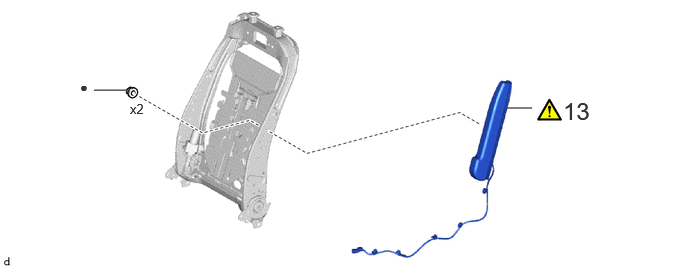

5.281,1.125 5.542,1.125 false 0.979,0.938 1.313,0.938 false 5.865,1.01 6.417,1.365 0.552,0.354 18 false 13 1.354,1.052 1.667,1.25 0.313,0.198 10 false x2 0.833,0.823 1.146,1.021 0.313,0.198 10 false ●

Procedure		Part Name Code
13	FRONT SEAT AIRBAG ASSEMBLY	73920A	(202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0077,)	-	-

●

Non-reusable part

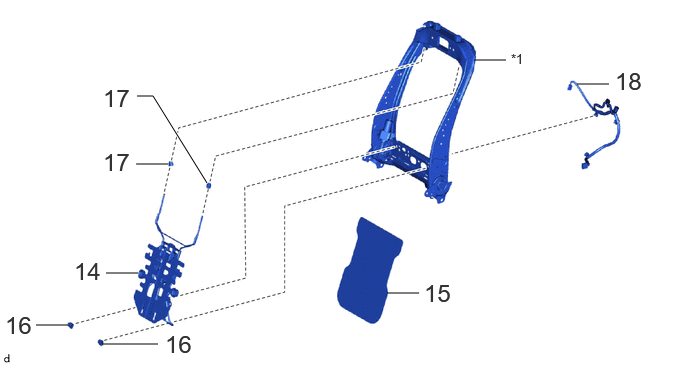

5.271,0.625 4.938,0.625 false 1.438,2.844 1.104,2.844 false 1.75,1.708 1.417,1.708 false 0.708,3.385 0.375,3.385 false 1.646,3.583 1.063,3.583 false 6.344,0.875 6.01,0.875 false 4.365,3.052 4.031,3.052 false 2.156,1.906 1.594,1 1.594,1 1.427,1 true 0.052,3.24 0.604,3.594 0.552,0.354 18 false 16 1.719,3.438 2.281,3.719 0.563,0.281 18 false 16 1.073,1.542 1.625,1.896 0.552,0.354 18 false 17 4.417,2.906 4.969,3.26 0.552,0.354 18 false 15 6.406,0.698 6.802,1.052 0.396,0.354 18 false 18 5.323,0.531 5.708,0.781 0.385,0.25 10 false *1 0.771,2.677 1.323,3.031 0.552,0.354 18 false 14 1.073,0.875 1.625,1.229 0.552,0.354 18 false 17

Procedure		Part Name Code
14	LUMBAR SUPPORT ADJUSTER ASSEMBLY	72760D	-	-	-
15	FRONT SEATBACK FELT	79977A	-	-	-
16	FRONT SEATBACK EDGE PROTECTOR	71587	-	-	-
17	FRONT SEATBACK HOOK	71759B	-	-	-
18	NO. 2 FRONT SEAT WIRE	8219B	-	-	-

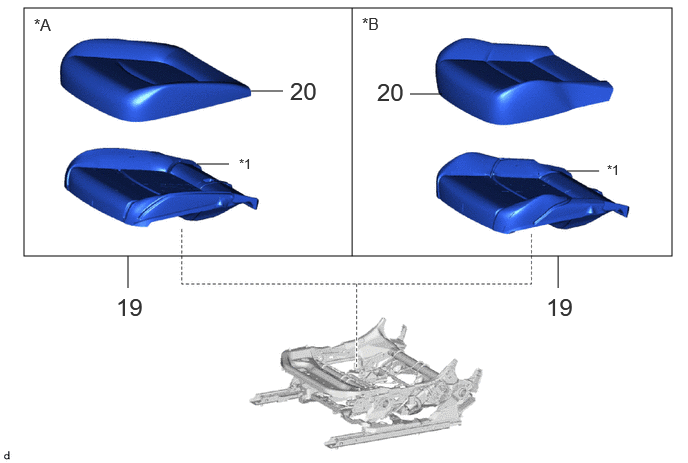

FRONT SEATBACK FRAME SUB-ASSEMBLY

0.25,0.083 7,2.667 6.75,2.583 5.906,1.781 6.24,1.781 false 4.271,0.979 4.604,0.979 false 2.615,0.948 2.948,0.948 false 1.333,3 1.333,2.667 false 2.052,1.708 2.385,1.708 false 3.667,0.083 3.667,2.667 false 5.813,3 5.813,2.667 false 3.927,0.813 4.479,1.167 0.552,0.354 18 false 20 2.49,1.625 3.042,1.979 0.552,0.354 10 false *1 1.208,3.052 1.76,3.406 0.552,0.354 18 false 19 3.771,0.146 4.135,0.427 0.365,0.281 12 false *B 3.021,0.802 3.573,1.156 0.552,0.354 18 false 20 5.688,3.052 6.24,3.406 0.552,0.354 18 false 19 6.323,1.688 6.875,2.042 0.552,0.354 10 false *1 0.354,0.156 0.719,0.438 0.365,0.281 12 false *A

Procedure		Part Name Code
19	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-
20	SEPARATE TYPE FRONT SEAT CUSHION COVER	71072S	-	-	-

*A	for TFTM Made	*B	for GTMC Made
*1	SEPARATE TYPE FRONT SEAT CUSHION PAD	-	-

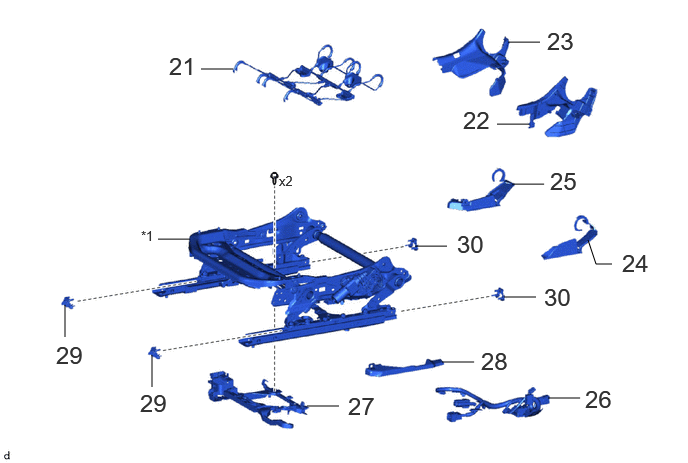

2.094,0.719 2.427,0.719 false 5.292,0.438 5.625,0.438 false 5.177,1.292 5.51,1.292 false 5.333,1.917 5.667,1.917 false 6.125,2.5 6.208,2.75 6.208,2.75 6.375,2.75 false 5.708,4.146 6.042,4.146 false 5.25,3.094 5.583,3.094 false 4.604,3.771 4.938,3.771 false 4.323,2.563 4.656,2.563 false 0.677,3.177 0.677,3.51 false 1.583,3.698 1.583,4.031 false 1.646,2.49 1.979,2.49 false 3.198,4.229 3.531,4.229 false 5.698,0.281 6.25,0.635 0.552,0.354 18 false 23 6.479,2.594 7.031,2.948 0.552,0.354 18 false 24 5.729,1.74 6.281,2.094 0.552,0.354 18 false 25 6.094,4.01 6.646,4.365 0.552,0.354 18 false 26 3.625,4.083 4.177,4.438 0.552,0.354 18 false 27 5.01,3.615 5.563,3.969 0.552,0.354 18 false 28 0.583,3.552 1.135,3.906 0.552,0.354 18 false 29 5.667,2.948 6.219,3.302 0.552,0.354 18 false 30 1.76,0.542 2.313,0.896 0.552,0.354 18 false 21 1.458,4.052 2.01,4.406 0.552,0.354 18 false 29 4.823,1.104 5.375,1.458 0.552,0.354 18 false 22 2.906,1.802 3.219,2 0.313,0.198 10 false x2 1.469,2.375 1.781,2.573 0.313,0.198 10 false *1 4.76,2.396 5.313,2.75 0.552,0.354 18 false 30

Procedure		Part Name Code
21	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY	71052A	-	-	-

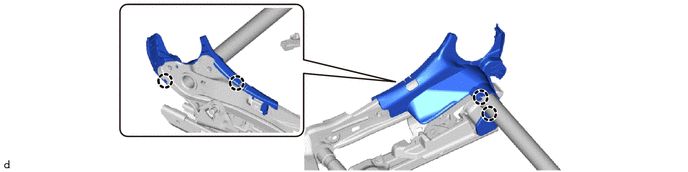

22	SEAT RECLINING ADJUSTER INSIDE COVER LH	71876G	-	-	-

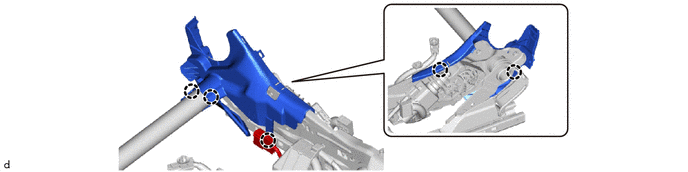

23	SEAT RECLINING ADJUSTER INSIDE COVER RH	71875G	-	-	-
24	FRONT SEAT LOWER CUSHION SHIELD LH	71874A	-	-	-
25	FRONT SEAT LOWER CUSHION SHIELD RH	71873U	-	-	-
26	FRONT SEAT WIRE	82192	-	-	-
27	FRONT SEAT CUSHION WIRE HARNESS HOLDER	7181B	-	-	-
28	FRONT SEAT LOWER CUSHION SHIELD	71874C	-	-	-

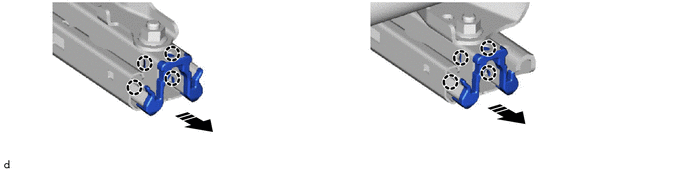

29	SEAT TRACK UPPER RAIL COVER	72266	-	-	-
30	SEAT TRACK REAR UPPER COVER	72125V	-	-	-

FRONT SEAT ADJUSTER ASSEMBLY

CAUTION / NOTICE / HINT

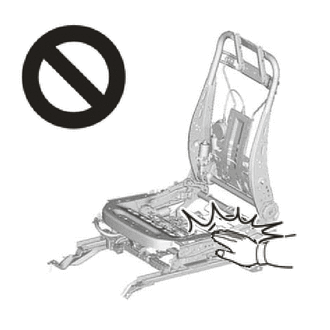

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Power seat is available only on the driver side.

PROCEDURE

Hide Display 73240 1.REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY>REMOVAL202201,202307,_58,_114202,_0509299,RM10000000204IZ_02_0086,202307,999999,_58,_114202,_0509299,RM100000002BZY6_02_0086,

Hide Display 71868N 2.REMOVE FRONT SEAT FRONT CUSHION SHIELD

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

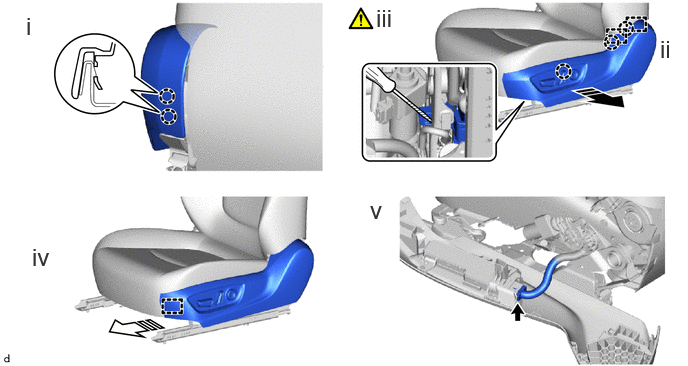

Hide Display 71812D 3.REMOVE FRONT SEAT CUSHION SHIELD

0.271,0.125 0.552,0.479 0.281,0.354 18 false i 0.333,2.531 0.615,2.885 0.281,0.354 18 false iv 3.854,2.042 4.135,2.396 0.281,0.354 18 false v 3.917,0.042 4.198,0.396 0.281,0.354 18 false iii 6.875,0.365 7.156,0.719 0.281,0.354 18 false ii

Remove in this Direction (1)

Remove in this Direction (2)

Disengage the claws.

ii.

Disengage the claw and guides.

iii.

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

HINT:: Tape the thin-bladed screwdriver tip before use.

iv.

Disengage the guide as shown in the illustration.

Disconnect the connector to remove the front seat cushion shield.

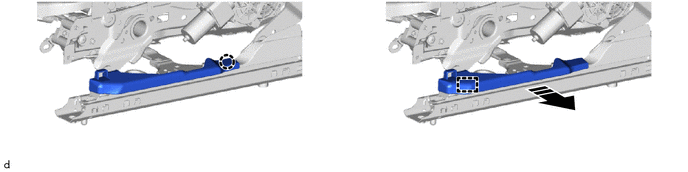

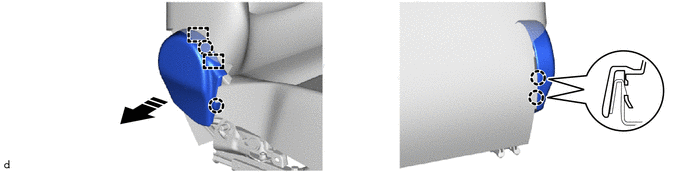

Hide Display 71862 4.REMOVE FRONT SEAT INNER CUSHION SHIELD

0,0 0,0 false

Remove in this Direction

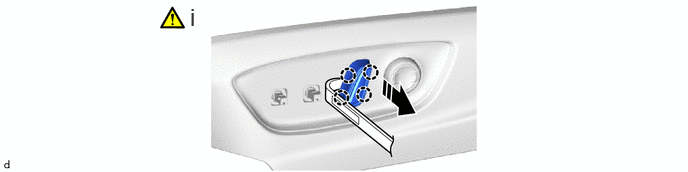

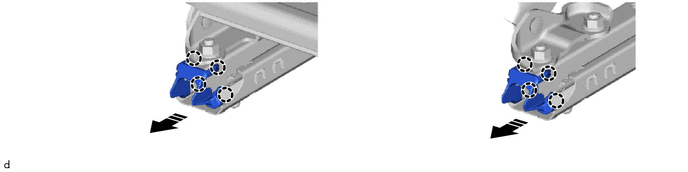

Hide Display 84921R 5.REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

1.99,0.052 2.271,0.406 0.281,0.354 18 false i

Remove in this Direction

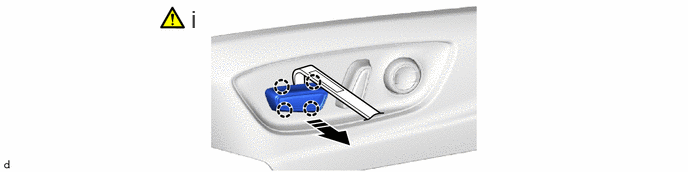

Using a moulding remover A, disengage the claws to remove the slide and vertical power seat switch knob.

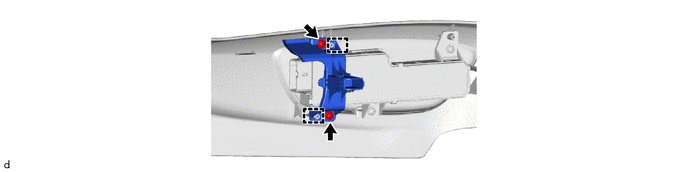

Hide Display 84921Q 6.REMOVE RECLINING POWER SEAT SWITCH KNOB

1.979,0.031 2.26,0.385 0.281,0.354 18 false i

Remove in this Direction

Using a moulding remover A, disengage the claws to remove the reclining power seat switch knob.

Hide Display 72714 7.REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET

Hide Display 84922C 8.REMOVE FRONT POWER SEAT SWITCH LH

Click hereVehicle Interior>SEAT>POWER SEAT SWITCH>REMOVAL202201,202307,_58,_114203,_0509294,RM10000000204IE_06_0008,202307,999999,_58,_114203,_0509294,RM100000002BZY3_06_0008,

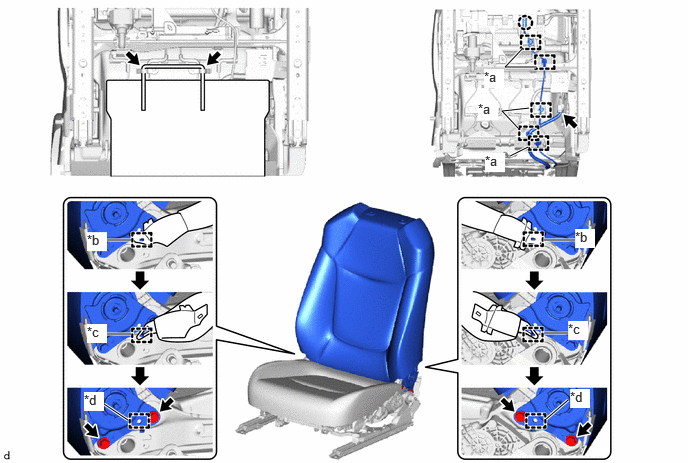

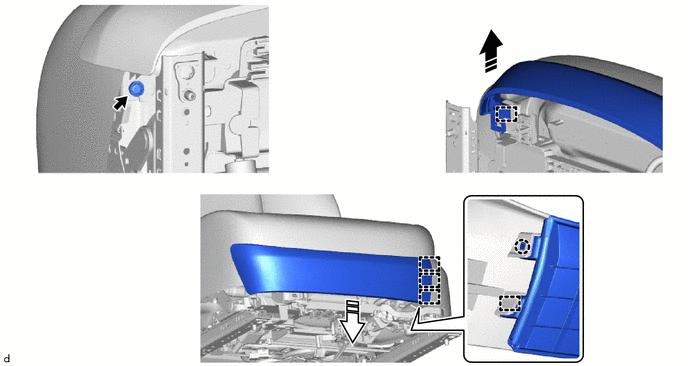

Hide Display 9.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

5.583,0.698 5.26,0.698 5.26,0.698 5.438,0.51 true 1.115,2.5 1.365,2.5 true 5.99,2.5 5.656,2.5 true 5.667,3.469 5.917,3.469 true 5.688,4.365 5.917,4.167 true 1.083,4.208 1.333,4.375 true 1.115,3.479 1.365,3.479 true 5.396,1.333 5.229,1.156 5.229,1.156 5.51,1.125 true 5.313,1.625 5.5,1.531 true 5.042,0.719 5.25,0.917 0.208,0.198 10 true *a 4.979,1.052 5.188,1.25 0.208,0.198 10 true *a 5.052,1.594 5.26,1.792 0.208,0.198 10 true *a 0.906,2.417 1.115,2.615 0.208,0.198 10 true *b 5.99,2.385 6.198,2.583 0.208,0.198 10 true *b 5.917,3.344 6.125,3.542 0.208,0.198 10 true *c 0.906,3.375 1.115,3.573 0.208,0.198 10 true *c 0.875,4.083 1.083,4.281 0.208,0.198 10 true *d 5.938,4.052 6.146,4.25 0.208,0.198 10 true *d

*a	Clamp	*b	Hook (A)
*c	Hook (B)	*d	Guide

Hide Display 71931 10.REMOVE FRONT SEAT HEADREST SUPPORT

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0068,

Hide Display 11.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0070,

Hide Display 71074S 12.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0092,

Hide Display 73920A 13.REMOVE FRONT SEAT AIRBAG ASSEMBLY

(

202201,202307,_58,_115188,_0510628,RM1000000020A9U_01_0005,202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0005,)

Hide Display 72760D 14.REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>REMOVAL202201,202307,_58,_114203,_0509295,RM10000000204IJ_07_0006,202307,999999,_58,_114203,_0509295,RM100000002BZY4_07_0006,

Hide Display 79977H 15.REMOVE FRONT SEATBACK FELT

Click hereVehicle Interior>SEAT>LUMBAR SUPPORT ADJUSTER ASSEMBLY>REMOVAL202201,202307,_58,_114203,_0509295,RM10000000204IJ_07_0026,202307,999999,_58,_114203,_0509295,RM100000002BZY4_07_0026,

Hide Display 16.REMOVE FRONT SEATBACK EDGE PROTECTOR

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0133,

Hide Display 17.REMOVE FRONT SEATBACK HOOK

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0105,

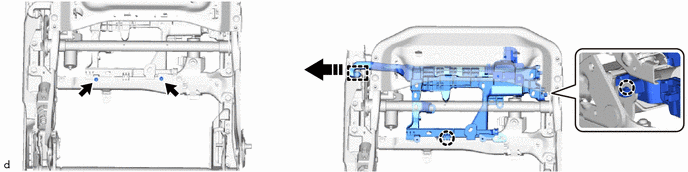

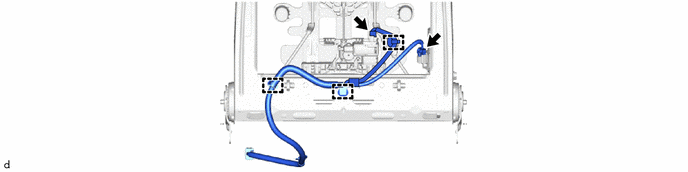

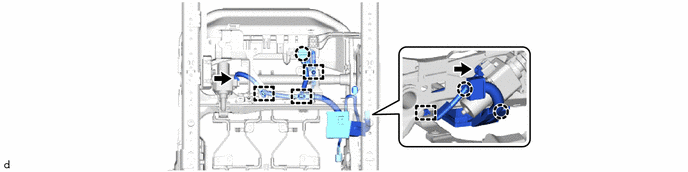

Hide Display 8219B 18.REMOVE NO. 2 FRONT SEAT WIRE

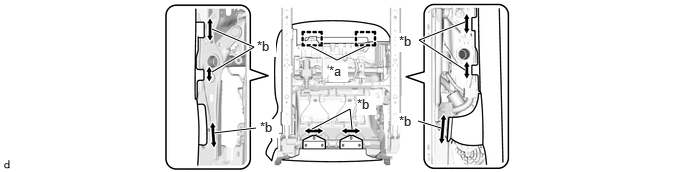

Hide Display 19.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

3.229,0.479 3.51,0.625 3.51,0.625 3.813,0.479 true 2.208,0.75 2.646,0.49 2.646,0.49 2.208,0.302 true 2.229,1.385 2.667,1.333 true 3.25,1.344 3.646,1.135 3.646,1.135 3.667,1.344 true 4.844,0.729 4.365,0.417 4.365,0.417 4.844,0.229 true 4.354,1.26 4.594,1.333 true 2.677,0.396 2.875,0.594 0.198,0.198 10 true *b 2.708,1.24 2.906,1.438 0.198,0.198 10 true *b 4.156,0.344 4.354,0.542 0.198,0.198 10 true *b 3.427,0.656 3.625,0.854 0.198,0.198 10 true *a 3.719,1 3.917,1.198 0.198,0.198 10 true *b 4.156,1.177 4.354,1.375 0.198,0.198 10 true *b

Hook (A)

Hook (B)

Hide Display 71072S 20.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0071,

Hide Display 71052A 21.REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0104,

Hide Display 71876G 22.REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH
