RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505967 WASHER NOZZLE(for Rear Side) A

WIPER / WASHER WASHER NOZZLE(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

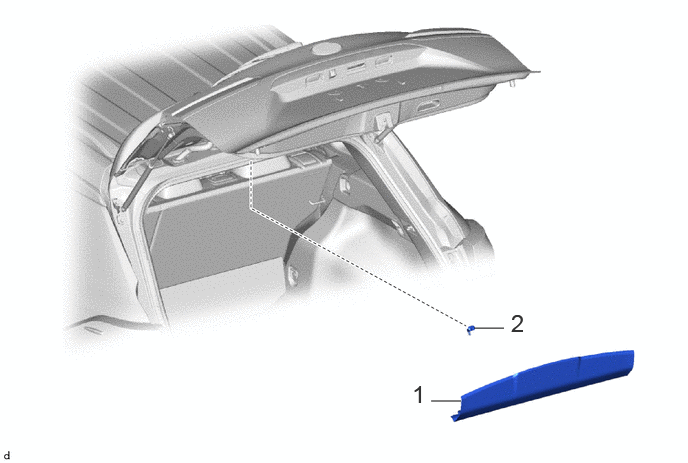

COMPONENTS (REMOVAL)

4.938,3.417 5.25,3.417 false 4.49,4.177 4.802,4.177 false 4.292,3.958 4.573,4.313 0.281,0.354 18 false 1 5.323,3.219 5.604,3.573 0.281,0.354 18 false 2

Procedure		Part Name Code
1	BACK DOOR TRIM UPPER PANEL ASSEMBLY	64790B	-	-	-
2	WASHER NOZZLE SUB-ASSEMBLY	85345R	-	-	-

PROCEDURE

Hide Display 64790B 1.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202201,202307,_59,_113746,_0510837,RM1000000020B7O_01_0296,202307,202405,_59,_113746,_0510837,RM100000002C1AM_01_0296,202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0296,

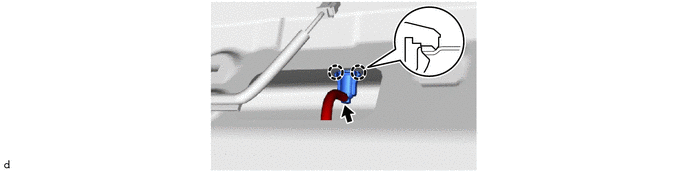

Hide Display 85345R 2.REMOVE REAR WASHER NOZZLE
