Vehicle Exterior
_114146
WIPER / WASHER
_0505966
WASHER NOZZLE(for Front Side)
A
WIPER / WASHER WASHER NOZZLE(for Front Side) REMOVAL
CAUTION / NOTICE / HINT

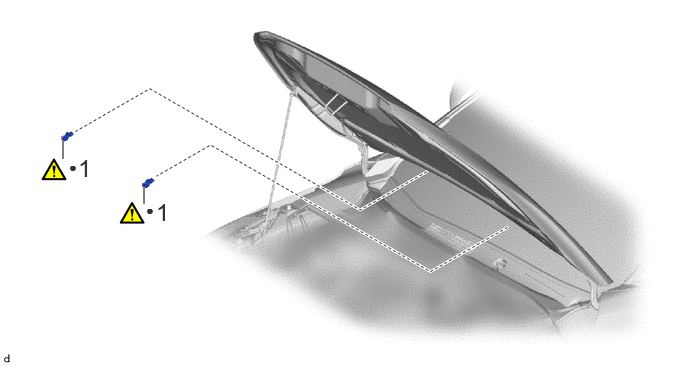

COMPONENTS (REMOVAL)
0.656,1.458 0.656,1.656
false
1.5,1.948 1.5,2.125
false
0.813,1.604 1.094,1.958
0.281,0.354
18
false
1
1.625,2.063 1.906,2.417
0.281,0.354
18
false
1
0.719,1.656 0.875,1.854
0.156,0.198
10
false
●
1.521,2.104 1.677,2.302
0.156,0.198
10
false
●
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | WASHER NOZZLE SUB-ASSEMBLY | 85035 | ( 202201,999999,_59,_114146,_0505966,RM100000001ZPJH_01_0001,)
|
- | - |
| ● | Non-reusable part | - | - |
PROCEDURE
85035
1.REMOVE WASHER NOZZLE SUB-ASSEMBLY
a.
0.594,0.042 0.813,0.365
0.219,0.323
18
false
i
3.927,0.281 4.146,0.604
0.219,0.323
18
false
ii
|
Separate in this Direction (1) |
|
Separate in this Direction (2) |

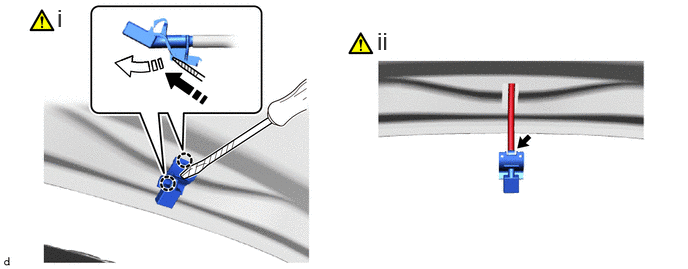

i.
Using a screwdriver with its tip wrapped with protective tape, disengage the claws to separate the washer nozzle sub-assembly as shown in the illustration.
- NOTICE:
-
Be careful not to damage the windshield glass.
ii.
Disconnect the washer hose to remove the washer nozzle sub-assembly.
- NOTICE:
-
Washer nozzle sub-assemblies cannot be reused.
