RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505964 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  REMOVAL


CAUTION / NOTICE / HINT

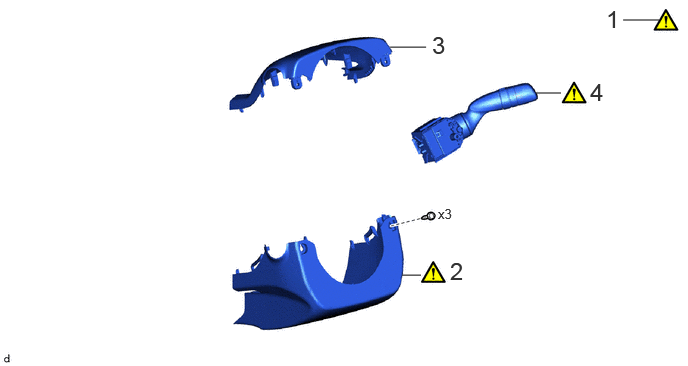

COMPONENTS (REMOVAL)
B582082N01
5.583,0.969 5.844,0.969 false 4.063,0.49 4.438,0.49 false 6.49,0.208 6.865,0.208 false 4.188,2.865 4.385,2.865 false 4.5,0.323 4.781,0.677 0.281,0.354 18 false 3 6.146,0.813 6.427,1.167 0.281,0.354 18 false 4 6.313,0.052 6.594,0.406 0.281,0.354 18 false 1 4.688,2.677 4.969,3.031 0.281,0.354 18 false 2 4.563,2.146 4.833,2.354 0.271,0.208 10 false x3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 STEERING WHEEL POSITION - (Click here) - -
2 LOWER STEERING COLUMN COVER 45287 (Click here) - -
3 UPPER STEERING COLUMN COVER 45286B - - -
4 WINDSHIELD WIPER SWITCH ASSEMBLY 84650 (Click here) - -

PROCEDURE

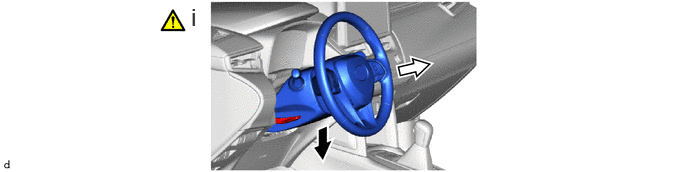

Hide 1.ADJUST STEERING WHEEL POSITION

a.
B582100C01
1.99,0.031 2.271,0.385 0.281,0.354 18 false i
V100135

Lower
V100136

Extend


i.

Adjust steering wheel position by the below procedure.

1. Release the tilt and telescopic lever and fully extend and lower the steering column sub-assembly.

2. Lock the tilt and telescopic lever.

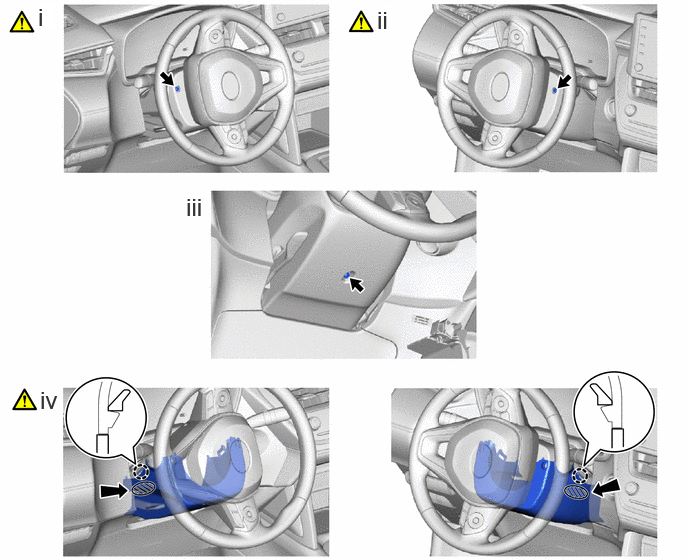

Hide 45287 2.REMOVE LOWER STEERING COLUMN COVER

Z101186

NOTICE:

Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.



a.
B582084C01
0.396,0.031 0.563,0.302 0.167,0.271 18 true i 3.927,0.063 4.094,0.333 0.167,0.271 18 true ii 0.417,4.021 1.25,4.375 0.833,0.354 18 false iv 1.938,2.01 2.771,2.365 0.833,0.354 18 false iii
V100155

Push Area
V100135

Push


i.

Turn the steering wheel assembly to the left to remove the screw.


ii.

Turn the steering wheel assembly to the right to remove the screw.


iii.

Remove the screw.


iv.

Disengage the claws to remove the lower steering column cover as show in the illustration.

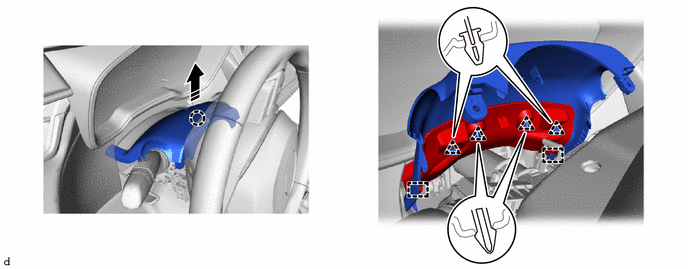

Hide 45286B 3.REMOVE UPPER STEERING COLUMN COVER

a.
B635828C01
0,0 0,0 false
V113147

Remove in this Direction - -

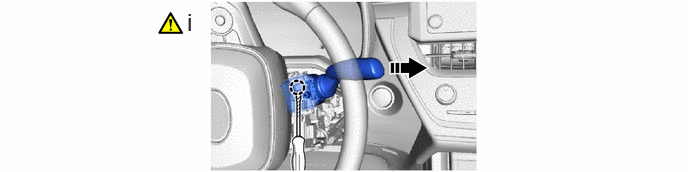

Hide 84650 4.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

a.
B582085C01
1.948,0.083 2.156,0.406 0.208,0.323 18 false i
V113147

Remove in this Direction - -


i.

Using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the windshield wiper switch assembly as shown in the illustration.

NOTICE:

If the claw is pulled with excessive force, it may break.
