WIPER / WASHER  REAR WIPER MOTOR  INSPECTION

1.5,0.219 1.917,0.469 0.417,0.25 1.094,1.333 0.917,1.802 true 1.542,1.813 1.406,1.333 true 1.708,1.323 1.99,1.781 true 0.156,0.167 0.469,0.365 0.313,0.198 10 false *a 1.948,1.823 2.26,2.021 0.313,0.198 10 false LS 0.875,1.844 1.188,2.042 0.313,0.198 10 false E 1.479,1.844 1.792,2.042 0.313,0.198 10 false +B 1.615,0.25 1.927,0.448 0.313,0.198 10 false U8

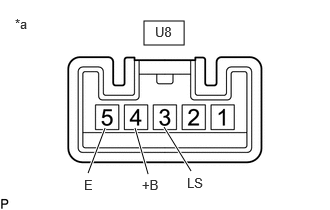

*a	Component without harness connected (Rear Wiper Motor Assembly)

Apply auxiliary battery voltage to the rear wiper motor connector and check the speed of the rear wiper motor assembly.

OK:

Auxiliary Battery Connection	Specified Condition
U8-4 (B) - Auxiliary battery positive (+) U8-1 (+1) - Auxiliary battery negative (-) U8-3 (E) - Auxiliary battery negative (-)	Motor operates

If the result is not as specified, replace the rear wiper motor assembly.
