RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505961 REAR WIPER MOTOR A

WIPER / WASHER REAR WIPER MOTOR REMOVAL

CAUTION / NOTICE / HINT

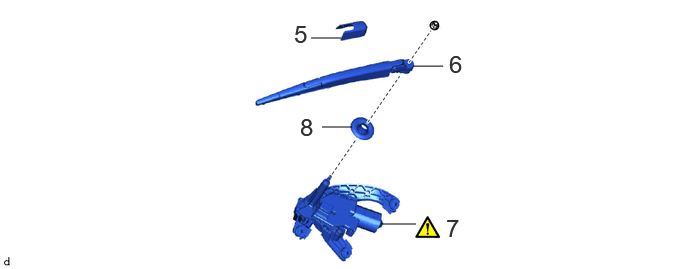

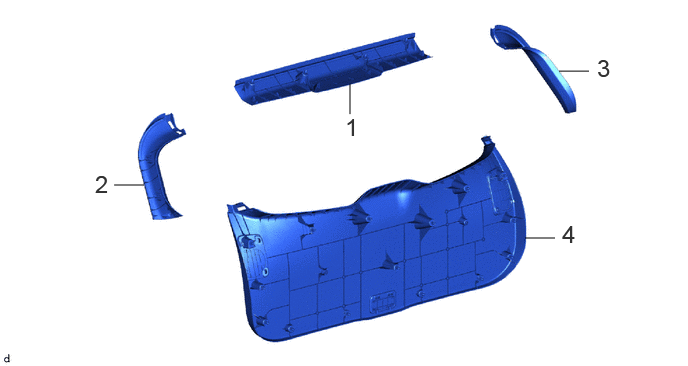

COMPONENTS (REMOVAL)

5.823,0.74 6.135,0.74 false 1.188,1.927 1.5,1.927 false 3.646,0.875 3.646,1.188 false 5.469,2.479 5.781,2.479 false 0.99,1.771 1.271,2.125 0.281,0.354 18 false 2 3.594,1.177 3.875,1.531 0.281,0.354 18 false 1 5.854,2.292 6.135,2.646 0.281,0.354 18 false 4 6.219,0.563 6.5,0.917 0.281,0.354 18 false 3

Procedure		Part Name Code
1	BACK DOOR TRIM UPPER PANEL ASSEMBLY	64790B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-

3.24,0.396 3.552,0.396 false 4.302,0.688 4.615,0.688 false 3.354,1.323 3.667,1.323 false 3.969,2.333 4.333,2.333 false 3.063,0.208 3.344,0.563 0.281,0.354 18 false 5 4.677,0.521 4.958,0.875 0.281,0.354 18 false 6 3.125,1.177 3.406,1.531 0.281,0.354 18 false 8 4.646,2.229 4.927,2.583 0.281,0.354 18 false 7

Procedure		Part Name Code
5	REAR WIPER ARM HEAD CAP	85292A	-	-	-
6	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
7	REAR WIPER MOTOR ASSEMBLY	85110R	(202201,999999,_59,_114146,_0505961,RM100000001ZPJ3_01_0004,)	-	-
8	REAR WIPER MOTOR GROMMET	85143R	-	-	-

PROCEDURE

Hide Display 64790B 1.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202201,202307,_59,_113746,_0510837,RM1000000020B7O_01_0296,202307,202405,_59,_113746,_0510837,RM100000002C1AM_01_0296,202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0296,

Hide Display 67938A 2.REMOVE BACK DOOR SIDE GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202201,202307,_59,_113746,_0510837,RM1000000020B7O_01_0275,202307,202405,_59,_113746,_0510837,RM100000002C1AM_01_0275,202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0275,

Hide Display 67937B 3.REMOVE BACK DOOR SIDE GARNISH RH

Use the same procedure as for the LH side.

Hide Display 64780A 4.REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202201,202307,_59,_113746,_0510837,RM1000000020B7O_01_0266,202307,202405,_59,_113746,_0510837,RM100000002C1AM_01_0266,202405,999999,_59,_113746,_0510837,RM100000002ML4T_01_0266,

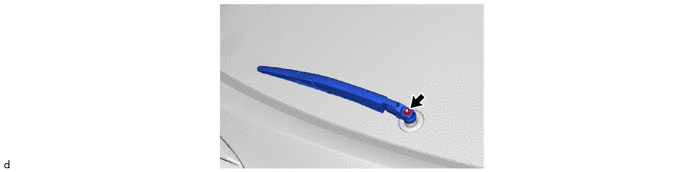

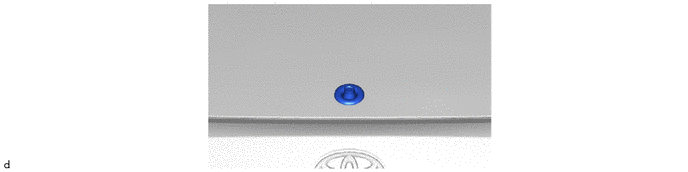

Hide Display 85292A 5.REMOVE REAR WIPER ARM HEAD CAP

0,0 0,0 false

Remove in this Direction

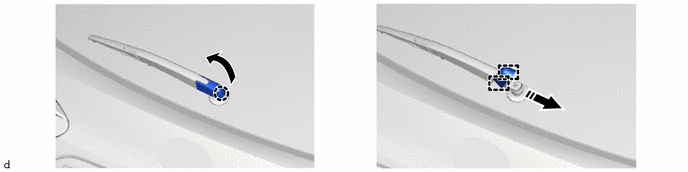

Hide Display 6.REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

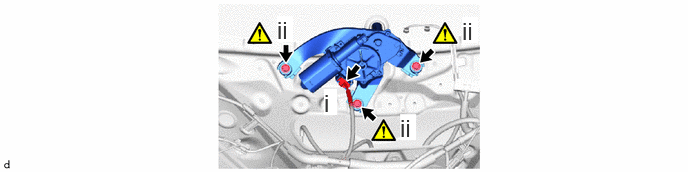

Hide Display 85110R 7.REMOVE REAR WIPER MOTOR ASSEMBLY

2.885,0.167 3.052,0.438 0.167,0.271 18 true ii 4.813,0.177 4.979,0.448 0.167,0.271 18 true ii 4.167,1.188 4.333,1.458 0.167,0.271 18 true ii 3.375,0.927 3.51,1.198 0.135,0.271 18 true i

Disconnect the connector.

ii.

Loosen the 3 bolts to remove the rear wiper motor assembly.

HINT:: Remove the 3 bolt and rear wiper motor assembly as a set.

Hide Display 85143R 8.REMOVE REAR WIPER MOTOR GROMMET
