RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505960 FRONT WIPER MOTOR G

WIPER / WASHER  FRONT WIPER MOTOR  INSPECTION


CAUTION / NOTICE / HINT

CAUTION:

Ensure that fingers or articles of clothing do not get caught in moving parts when performing this test.


PROCEDURE

Hide 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

a.

Check the LO operation.

i.

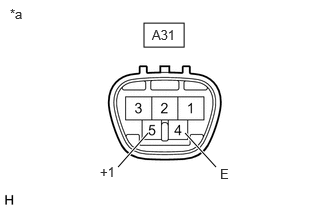

E239382C28
1.5,0.24 1.917,0.49 0.417,0.25 1.542,1.385 1.229,1.74 true 1.927,1.385 2.25,1.74 true 2.292,1.729 2.583,1.969 0.292,0.24 10 false E 1.042,1.708 1.323,1.885 0.281,0.177 10 false +1 0.104,0.063 0.385,0.24 0.281,0.177 10 false *a 1.583,0.281 1.906,0.469 0.323,0.188 10 false A31
*a Component without harness connected
(Windshield Wiper Motor Assembly)


Apply auxiliary battery voltage to the windshield wiper motor connector and check the speed of the windshield wiper motor assembly.

OK:
Auxiliary Battery Connection Specified Condition
A31-5 (+1) - Auxiliary battery positive (+)
A31-4 (E) - Auxiliary battery positive (-) 		Motor operates at low speed (LO)


If the result is not as specified, replace the windshield wiper motor assembly.



b.

Check the HI operation.

i.
E239382C29
1.5,0.24 1.917,0.49 0.417,0.25 1.927,1.385 2.25,1.74 true 0.948,0.792 1.365,1.052 true 0.75,0.677 0.99,0.854 0.24,0.177 10 false +2 2.292,1.729 2.583,1.969 0.292,0.24 10 false E 0.104,0.063 0.385,0.24 0.281,0.177 10 false *a 1.583,0.281 1.906,0.469 0.323,0.188 10 false A31
*a Component without harness connected
(Windshield Wiper Motor Assembly)


Apply auxiliary battery voltage to the windshield wiper motor connector and check the speed of the windshield wiper motor assembly.

OK:
Auxiliary Battery Connection Specified Condition
A31-3 (+2) - Auxiliary battery positive (+)
A31-4 (E) - Auxiliary battery positive (-) 		Motor operates at high speed (HI)


If the result is not as specified, replace the windshield wiper motor assembly.
