RM38T0EC _V1 General _104397 MAINTENANCE _0505956 REAR WIPER RUBBER A

MAINTENANCE  REAR WIPER RUBBER  INSTALLATION


CAUTION / NOTICE / HINT

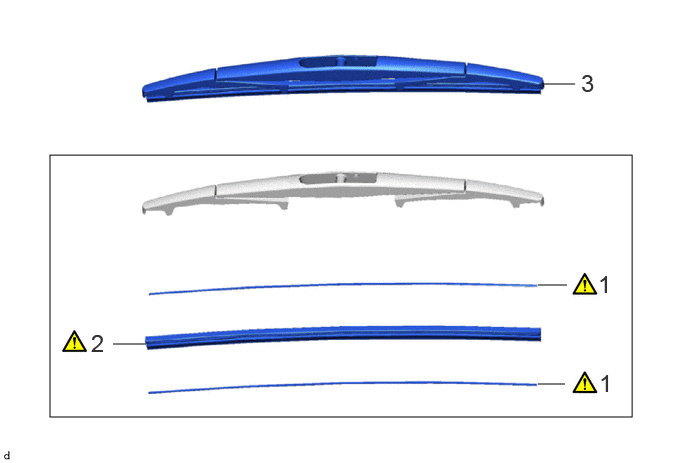

COMPONENTS (INSTALLATION)
B590572N01
0.521,1.615 6.583,4.344 6.063,2.729 5.656,0.875 5.99,0.875 false 1.177,3.583 1.521,3.583 false 5.604,2.969 5.906,2.969 false 5.604,4 5.885,4 false 6.229,2.813 6.51,3.167 0.281,0.354 18 false 1 6.24,3.844 6.521,4.198 0.281,0.354 18 false 1 0.948,3.427 1.229,3.781 0.281,0.354 18 false 2 6.052,0.719 6.333,1.073 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 WIPER BLADE RUBBER BACKING PLATE - (Click here) - -
2 REAR WIPER RUBBER 85214R (Click here) - -
3 REAR WIPER BLADE 85242 - - -

PROCEDURE

Hide 1.INSTALL WIPER BLADE RUBBER BACKING PLATE

a.
B590573N01
2.177,0.052 2.458,0.406 0.281,0.354 18 false i

i.

Install the 2 rear wiper rubber backing plates to the rear wiper rubber as shown in the illustration.

NOTICE:

Install the backing plates facing the correct direction.




Hide 85214R 2.INSTALL REAR WIPER RUBBER

a.

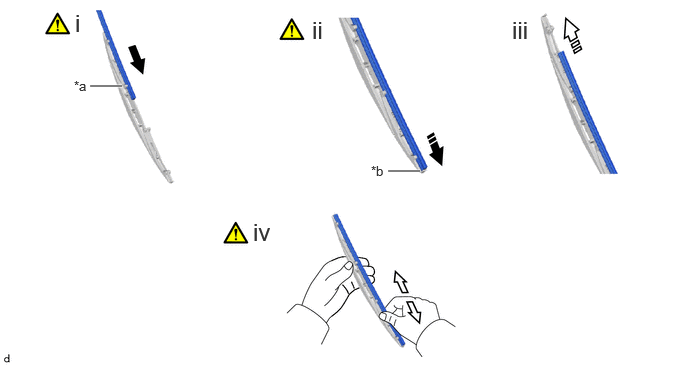

B590574C01
0.938,0.896 1.271,0.896 true 4.042,1.781 4.375,1.781 true 0.771,0.813 1.083,1.01 0.313,0.198 10 false *a 3.865,1.698 4.177,1.896 0.313,0.198 10 false *b 0.781,0.094 1.063,0.448 0.281,0.354 18 false i 3.25,0.167 3.802,0.521 0.552,0.354 18 false ii 5.333,0.167 5.75,0.5 0.417,0.333 18 false iii 2.635,2.271 3.188,2.625 0.552,0.354 18 false iv
*a Second Claw *b Stopper
V100135

Insert
V100136

Slide
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


i.

Insert the rear wiper rubber with the 2 rear wiper rubber backing plates through the second claw from the front of the rear wiper blade and then push it through each claw until the rear claw.


ii.

After pushing the rear wiper rubber through the rear claw, pull it slightly over the rear stopper as shown in the illustration.


iii.

Slide the rear wiper rubber through the front claw as shown in the illustration.


iv.

Securely engage the rear wiper blade claw to the rear wiper rubber groove as shown in the illustration.

HINT:
·

If the front claw of the rear wiper blade is not in the rear wiper rubber groove, grasp the rear wiper rubber and slide it up and down multiple times to insert the claw into the groove.

·

Applying a small amount of window washer fluid to the rear wiper rubber can make it easier to insert the claw into the groove.





Hide 85242 3.INSTALL REAR WIPER BLADE
