RM38T0EC _V1 General _104397 MAINTENANCE _0505956 REAR WIPER RUBBER A

MAINTENANCE  REAR WIPER RUBBER  REMOVAL


CAUTION / NOTICE / HINT

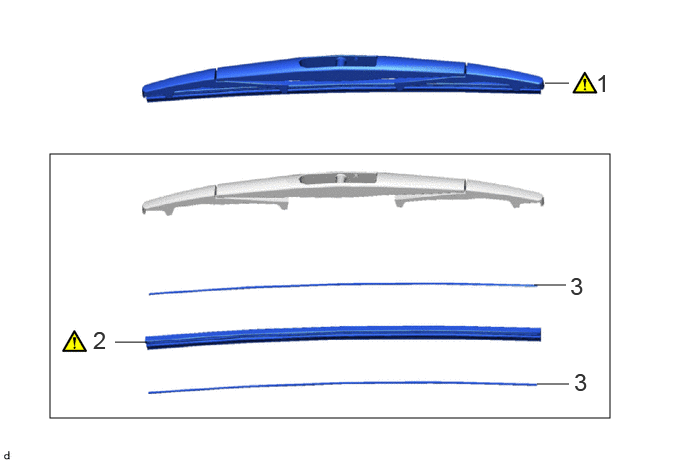

COMPONENTS (REMOVAL)
B590568N01
0.521,1.604 6.354,4.354 5.833,2.75 5.677,0.865 5.927,0.865 false 1.198,3.563 1.531,3.563 false 5.563,2.969 5.896,2.969 false 5.594,4 5.927,4 false 0.969,3.396 1.25,3.75 0.281,0.354 18 false 2 5.938,2.833 6.219,3.188 0.281,0.354 18 false 3 5.979,3.833 6.26,4.188 0.281,0.354 18 false 3 6.208,0.719 6.49,1.073 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR WIPER BLADE 85242 (Click here) - -
2 REAR WIPER RUBBER 85214R (Click here) - -
3 WIPER BLADE RUBBER BACKING PLATE - - - -

PROCEDURE

Hide 85242 1.REMOVE REAR WIPER BLADE

a.

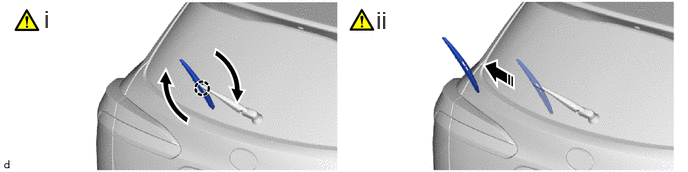

B590569C01
0.458,0.052 0.74,0.406 0.281,0.354 18 false i 3.917,0.063 4.469,0.417 0.552,0.354 18 false ii
V113147

Remove in this Direction - -


i.

Raise the rear wiper blade to the position where the claw disengages with a click sound as shown in the illustration.

NOTICE:

Be careful not to damage the claw.



ii.

Remove the rear wiper blade from the rear wiper arm as shown in the illustration.

NOTICE:

Place a piece of cloth between the rear wiper arm and back door glass to avoid damaging the back door glass.




Hide 85214R 2.REMOVE REAR WIPER RUBBER

a.
B590570C01
3.271,1.417 3.76,1.417 false 2.198,0.052 2.479,0.406 0.281,0.354 18 false i 3.063,1.292 3.375,1.49 0.313,0.198 10 false *a
*a Stopper - -
V100135

Push
V100136

Pull Out
V113147

Remove in this Direction - -


i.

Remove the rear wiper rubber by the below procedure.

1. Lift and pull the end of the rear wiper rubber over the stopper as shown in the illustration.

NOTICE:

Do not forcibly pull out the rear wiper rubber as the rear wiper rubber backing plates may be deformed or the claws of the rear wiper blade may be damaged.


HINT:

Lightly pushing the middle of the rear wiper rubber will allow it to be removed more easily.


2. Remove the rear wiper rubber with the 2 rear wiper rubber backing plates from the rear wiper blade.



Hide 3.REMOVE WIPER BLADE RUBBER BACKING PLATE

a.
B590571
