RM38T0EC _V1 General _104397 MAINTENANCE _0505955 FRONT WIPER RUBBER A

MAINTENANCE  FRONT WIPER RUBBER  INSTALLATION


CAUTION / NOTICE / HINT

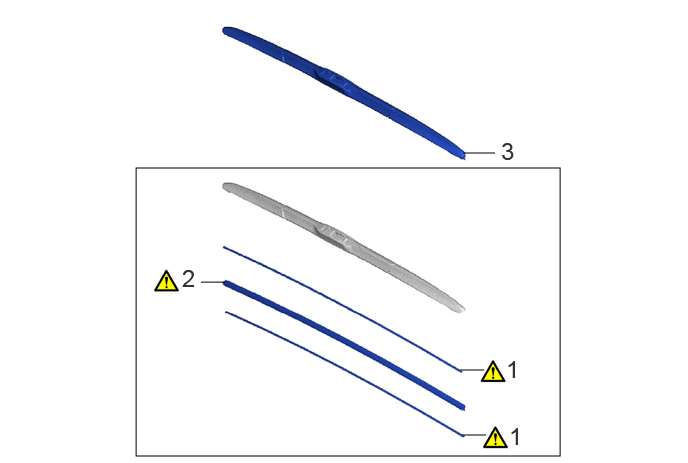

COMPONENTS (INSTALLATION)
B582105N01
1.417,1.75 5.833,4.75 4.417,3 4.823,1.594 5.156,1.594 false 2.094,2.938 2.344,2.938 false 4.792,3.854 5.042,3.854 false 4.813,4.531 5.063,4.531 false 5.219,1.427 5.5,1.781 0.281,0.354 18 false 3 1.896,2.75 2.177,3.104 0.281,0.354 18 false 2 5.271,3.698 5.552,4.052 0.281,0.354 18 false 1 5.302,4.396 5.583,4.75 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 WIPER BLADE RUBBER BACKING PLATE - (Click here) - -
2 WIPER RUBBER 85214B (Click here) - -
3 FRONT WIPER BLADE 85222A - - -

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL WIPER BLADE RUBBER BACKING PLATE

a.

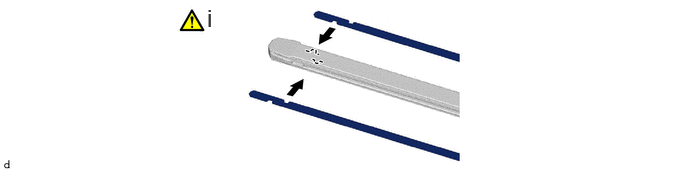

B582109C01
2.156,0.042 2.438,0.396 0.281,0.354 18 false i

i.

Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.

NOTICE:
·

Align the protrusions on the wiper rubber and the notches of the backing plates.

·

Align the curves of the backing plates and the windshield glass.





Hide 85214B 2.INSTALL WIPER RUBBER

a.

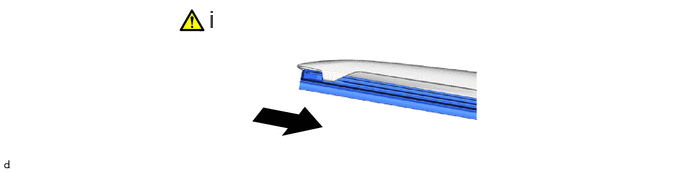

B582110C01
2.177,0.052 2.458,0.406 0.281,0.354 18 false i

i.

Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

NOTICE:

Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.




Hide 85222A 3.INSTALL FRONT WIPER BLADE
