General
_104397
MAINTENANCE
_0505955
FRONT WIPER RUBBER
A
MAINTENANCE FRONT WIPER RUBBER REMOVAL
CAUTION / NOTICE / HINT

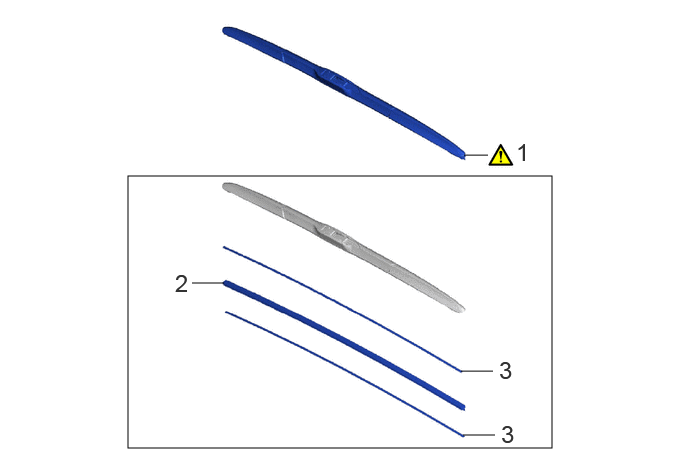

COMPONENTS (REMOVAL)
1.333,1.833 5.75,4.667
4.417,2.833
4.833,1.615 5.083,1.615
false
2,2.948 2.333,2.948
false
4.802,3.865 5.135,3.865
false
4.823,4.531 5.156,4.531
false
5.375,1.438 5.656,1.792
0.281,0.354
18
false
1
1.823,2.802 2.104,3.156
0.281,0.354
18
false
2
5.198,3.708 5.479,4.063
0.281,0.354
18
false
3
5.219,4.375 5.5,4.729
0.281,0.354
18
false
3
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT WIPER BLADE | 85222A | ( 202201,999999,_V1,_104397,_0505955,RM100000001ZPIS_01_0006,)
|
- | - |
| 2 | WIPER RUBBER | 85214B | - | - | - |
| 3 | WIPER BLADE RUBBER BACKING PLATE | - | - | - | - |
CAUTION / NOTICE / HINT
- NOTICE:
-
Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
85222A

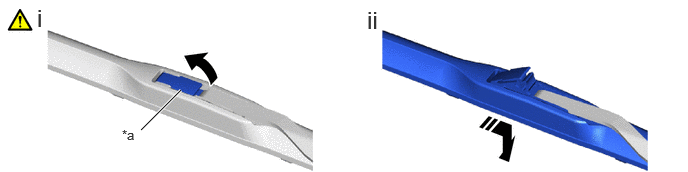

1.REMOVE FRONT WIPER BLADE
a.
1.469,1.354 1.885,0.938
true
0.385,0.042 0.667,0.396
0.281,0.354
18
false
i
3.823,0.063 4.375,0.417
0.552,0.354
18
false
ii
1.271,1.323 1.583,1.521
0.313,0.198
10
false
*a
| *a | Holder | - | - |
|
Pull Up |
|
Remove in this Direction |
i.
Pull up the holder of the front wiper blade as shown in the illustration.
ii.
Remove the front wiper blade from the front wiper arm as shown in the illustration.
- NOTICE:
-
Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.
85214B
2.REMOVE WIPER RUBBER
a.
3.REMOVE WIPER BLADE RUBBER BACKING PLATE
a.
