RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505942 FRONT PILLAR UPPER COVER A

EXTERIOR PANELS / TRIM  FRONT PILLAR UPPER COVER  REASSEMBLY


CAUTION / NOTICE / HINT

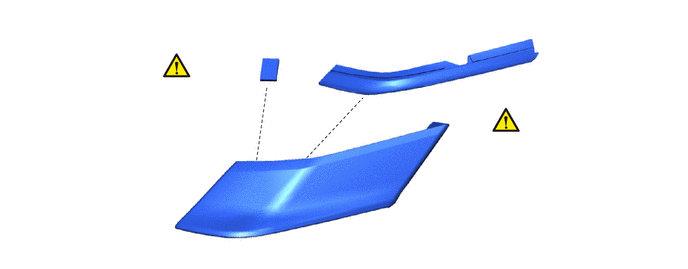

COMPONENTS (REASSEMBLY)
B583331
2.333,0.677 2.75,0.677 false 5.396,0.667 5.396,1.083 false 4.396,1.667 4.729,1.667 false 2.156,0.5 2.438,0.854 0.281,0.354 18 false 2 5.552,1.115 5.833,1.469 0.281,0.354 18 false 1 2.01,0.552 2.167,0.75 0.156,0.198 10 false ● 5.417,1.146 5.573,1.344 0.156,0.198 10 false ● 4.813,1.563 4.969,1.76 0.156,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT PILLAR COVER PROTECTOR 61992 (Click here) - -
2 NO. 1 MOULDING TAPE 75895A (Click here) - -

*1 FRONT PILLAR UPPER COVER - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

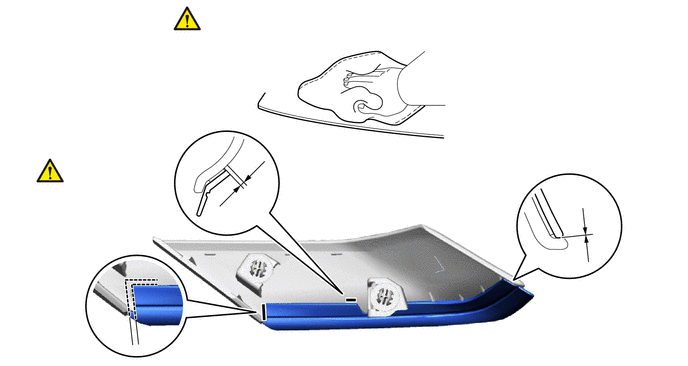

Hide 61992 1.INSTALL FRONT PILLAR COVER PROTECTOR

a.
B583282
1.375,3.542 1.135,3.313 1.135,3.313 1.406,3.406 true 0.979,3.198 1.177,3.385 0.198,0.188 10 false *a 6.229,2.323 6.427,2.51 0.198,0.188 10 false A 2.563,1.969 2.76,2.156 0.198,0.188 10 false B 2.146,0.031 2.354,0.344 0.208,0.313 18 false i 0.74,1.646 0.948,1.958 0.208,0.313 18 false ii
*a Location Line - -


i.

Clean the front pillar cover.

1. Using a heat light, heat the front pillar cover surface.

Standard:
Item Temperature Item Temperature
Front Pillar Upper Cover 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front pillar cover excessively.


2. Remove any remaining double-sided tape from the front pillar cover.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the front pillar cover protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new front pillar cover protector.

1. Using a heat light, heat the front pillar cover.

Standard:
Item Temperature Item Temperature
Front Pillar Upper Cover 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front pillar cover excessively.


2. Remove the release paper from the front pillar cover protector.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the front pillar cover protector as shown in the illustration.

Standard Measurement:
Area Measurement Area Measurement
A 0 mm (0 in.) B 1.0 mm (0.04 in.)


HINT:
·

Make sure that the end of the front pillar cover protector is between the location line.

·

Press the front pillar cover protector firmly to install it.

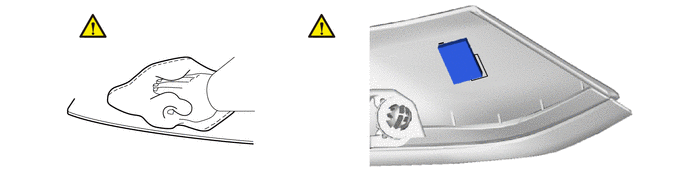

Hide 75895A 2.INSTALL NO. 1 MOULDING TAPE

a.
B583281
4.958,0.823 5.302,0.823 5.302,0.823 5.021,0.656 true 0,0 0.188,0.177 0.188,0.177 10 true *a 0,0 0.188,0.177 0.188,0.177 10 true *a 1.167,0.125 1.406,0.438 0.24,0.313 18 false i 3.563,0.094 3.802,0.406 0.24,0.313 18 false ii 5.323,0.76 5.51,0.948 0.188,0.188 10 true *a
*a Location Line - -


i.

Clean the front pillar cover.

1. Using a heat light, heat the front pillar cover surface.

Standard:
Item Temperature Item Temperature
Front Pillar Upper Cover 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front pillar cover excessively.


2. Remove any remaining double-sided tape from the front pillar cover.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 1 moulding tape with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 1 moulding tape.

1. Using a heat light, heat the front pillar cover.

Standard:
Item Temperature Item Temperature
Front Pillar Upper Cover 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front pillar cover excessively.


2. Remove the release paper from the No. 1 moulding tape.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 1 moulding tape as shown in the illustration.

HINT:
·

Install the No. 1 moulding tape along the location line on the front pillar cover.

·

Press the No. 1 moulding tape firmly to install it.
