RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505942 FRONT PILLAR UPPER COVER A

EXTERIOR PANELS / TRIM  FRONT PILLAR UPPER COVER  INSTALLATION


CAUTION / NOTICE / HINT

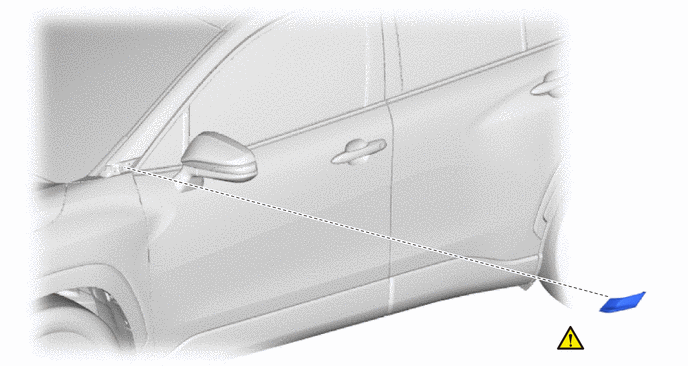

COMPONENTS (INSTALLATION)
B577704
6.292,3.531 6.458,3.531 6.458,3.531 6.594,3.177 false 6.094,3.354 6.375,3.708 0.281,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT PILLAR UPPER COVER SUB-ASSEMBLY 60118 (Click here) - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 60118 1.INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY

a.

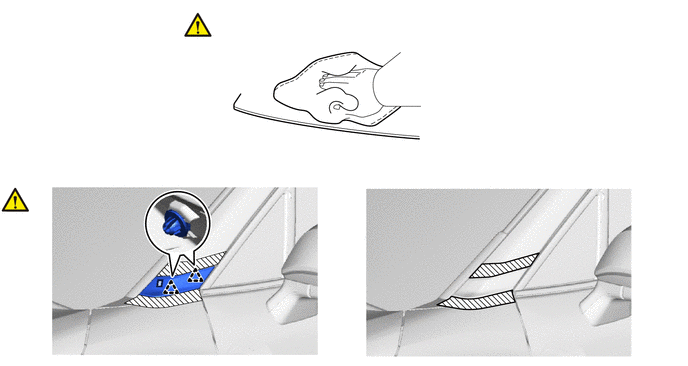

B583295
1.229,3.375 1.646,2.958 true 2.26,0.115 2.542,0.469 0.281,0.354 18 false i 0.354,1.948 0.604,2.281 0.25,0.333 18 false ii 3.583,1.979 3.833,2.313 0.25,0.333 18 false iii 1.073,3.354 1.302,3.552 0.229,0.198 10 true *a
*a Double-sided Tape - -


i.

Clean the vehicle body.

1. Using a heat light, heat the vehicle body surface.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F) - -


CAUTION:
E306500C35

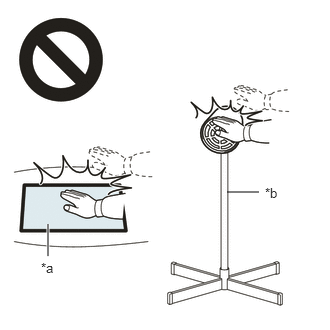

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove any remaining double-sided tape from the vehicle body.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the front pillar upper cover sub-assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install the front pillar upper cover sub-assembly.

1. Using a heat light, heat the vehicle body.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove the release paper from the front pillar upper cover sub-assembly.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Engage the clips to install the front pillar upper cover sub-assembly.

HINT:

Press the front pillar upper cover sub-assembly firmly to install it.



iii.

Remove the protective tape.
