Vehicle Exterior
_114126
EXTERIOR PANELS / TRIM
_0505942
FRONT PILLAR UPPER COVER
A
EXTERIOR PANELS / TRIM FRONT PILLAR UPPER COVER REMOVAL
CAUTION / NOTICE / HINT

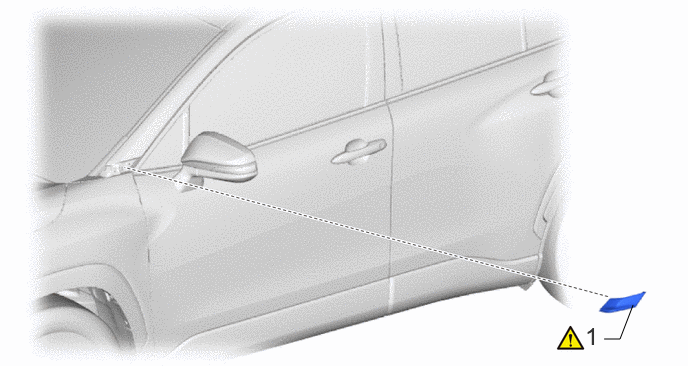

COMPONENTS (REMOVAL)
6.292,3.531 6.458,3.531
6.458,3.531 6.594,3.177
false
6.094,3.354 6.375,3.708
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 | ( 202201,999999,_59,_114126,_0505942,RM100000001ZPGF_02_0001,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
60118
1.REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY
a.
4.771,1.427 4.948,1.052
true
4.594,1.396 4.76,1.573
0.167,0.177
10
true
*a
0.385,0.052 0.604,0.344
0.219,0.292
18
false
i
3.646,0.052 3.865,0.344
0.219,0.292
18
false
ii
| *a | Double-sided Tape | - | - |
i.
Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.
ii.
Disengage the clips and separate the double-sided tape to remove the front pillar upper cover sub-assembly.
