RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505941 QUARTER GARNISH A

EXTERIOR PANELS / TRIM  QUARTER GARNISH  INSTALLATION


CAUTION / NOTICE / HINT

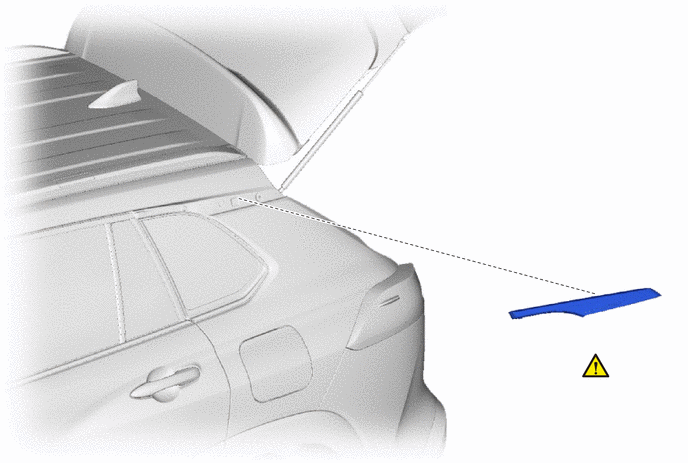

COMPONENTS (INSTALLATION)
B577703
6.281,3.25 6.281,3.583 false 6.542,3.677 6.823,3.969 0.281,0.292 18 false 1 6.396,3.719 6.552,3.917 0.156,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 QUARTER PILLAR COVER SUB-ASSEMBLY 62506C (Click here) - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62506C 1.INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY

a.

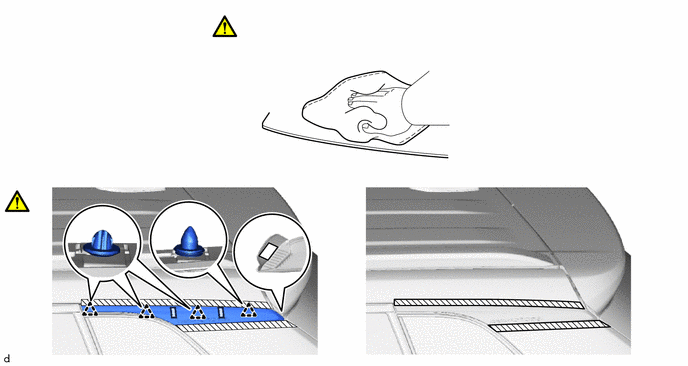

B591516
2.771,2.615 2.677,2.469 true 1.823,3.281 2.427,3.542 2.427,3.542 2.302,3.271 true 2.531,0.125 2.813,0.479 0.281,0.354 18 false i 0.365,1.938 0.646,2.292 0.281,0.354 18 false ii 2.583,2.333 2.75,2.49 0.167,0.156 10 true *a 3.583,1.927 3.865,2.281 0.281,0.354 18 false iii 2.438,3.469 2.604,3.625 0.167,0.156 10 true *a
*a Double-sided Tape - -


i.

Clean the vehicle body.

1. Using a heat light, heat the vehicle body surface.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60 °C (104 to 140 °F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove any remaining double-sided tape from the vehicle body.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the quarter pillar cover sub-assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new quarter pillar cover sub-assembly.

1. Using a heat light, heat the vehicle body.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60 °C (104 to 140 °F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove the release paper from the quarter pillar cover sub-assembly.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Engage the clips to install the quarter pillar cover sub-assembly.

HINT:

Press the quarter pillar cover sub-assembly firmly to install it.



iii.

Remove the protective tape.
