EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)
B618161
1.583,1.146 2.083,1.146 false 2.365,2.219 2.719,2.219 false 2.177,2.115 2.375,2.313 0.198,0.198 10 false *1 1.302,1.052 1.458,1.25 0.156,0.198 10 false ● 1.417,0.958 1.656,1.292 0.24,0.333 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BACK DOOR OUTSIDE GARNISH PROTECTOR 76825 (Click here) - -

*1 BACK DOOR OUTSIDE GARNISH - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

PROCEDURE

Hide 76825 1.INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR

a.

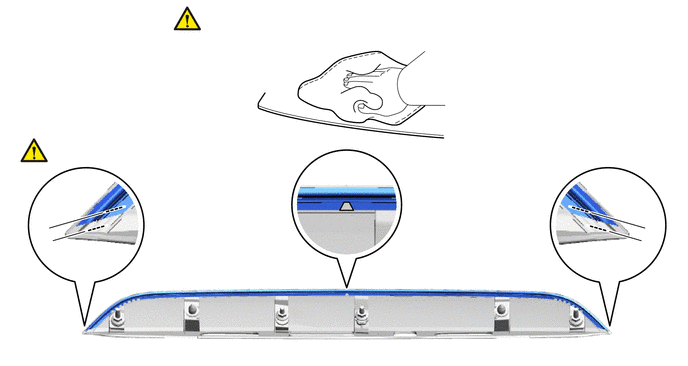

B583273
0.51,2.365 0.646,2.083 false 0.823,2.635 0.563,2.49 false 3.563,2.375 3.604,2.188 true 6.385,2.625 6.688,2.5 false 6.563,2.125 6.708,2.354 false 2.156,0.073 2.438,0.427 0.281,0.354 18 false i 0.552,1.448 0.833,1.802 0.281,0.354 18 false ii 0.667,1.969 0.979,2.167 0.313,0.198 10 false *a 0.875,2.625 1.188,2.823 0.313,0.198 10 false *a 6.188,2.552 6.5,2.75 0.313,0.198 10 false *a 6.385,1.979 6.698,2.177 0.313,0.198 10 false *a 3.438,2.375 3.688,2.583 0.25,0.208 10 true *a
*a Location Line - -


i.

Clean the back door outside garnish.

1. Using a heat light, heat the back door outside garnish surface.

Standard:
Item Temperature Item Temperature
Back Door Outside Garnish 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish excessively.


2. Remove any remaining double-sided tape from the back door outside garnish.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the back door outside garnish protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new back door outside garnish protector.

1. Using a heat light, heat the back door outside garnish.

Standard:
Item Temperature Item Temperature
Back Door Outside Garnish 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the back door outside garnish excessively.


2. Remove the release paper from the back door outside garnish protector.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the back door outside garnish protector as shown in the illustration.

HINT:
·

Make sure that the end of the back door outside garnish protector is between the location lines.

·

Press the back door outside garnish protector firmly to install it.
