Vehicle Exterior
_114126
EXTERIOR PANELS / TRIM
_0505940
BACK DOOR OUTSIDE GARNISH
A
EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH INSTALLATION
CAUTION / NOTICE / HINT

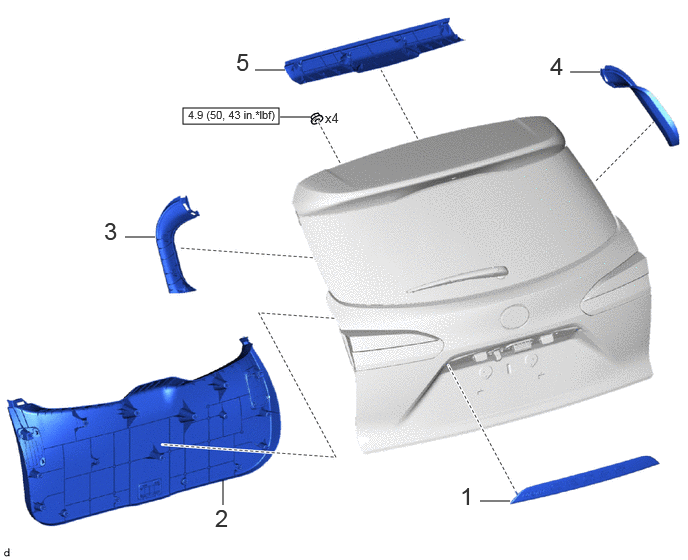

COMPONENTS (INSTALLATION)
1.906,1.125 2.906,1.292
1,0.167
2.656,0.729 2.969,0.729
false
5.938,0.75 6.25,0.75
false
1.302,2.469 1.615,2.469
false
2.323,5 2.323,5.26
false
5,5.219 5.313,5.219
false
2.917,1.219 3.229,1.219
false
3.385,1.146 3.698,1.344
0.313,0.198
10
false
x4
2.458,0.5 2.698,0.781
0.24,0.281
18
false
5
1.083,2.26 1.323,2.542
0.24,0.281
18
false
3
2.24,5.25 2.479,5.531
0.24,0.281
18
false
2
4.792,5.021 5.031,5.302
0.24,0.281
18
false
1
5.729,0.542 5.969,0.823
0.24,0.281
18
false
4
1.958,1.125 2.917,1.292
0.958,0.167
8
false
4.9 (50, 43 in.*lbf)
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY | 76801 | - | - | - |
| 2 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 4 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
CAUTION / NOTICE / HINT
PROCEDURE
76801
1.INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
- Torque:
- 4.9 N*m (50 kgf*cm, 43 in.*lbf)
64780A
2.INSTALL BACK DOOR TRIM PANEL ASSEMBLY
67938A
3.INSTALL BACK DOOR SIDE GARNISH LH
67937B
4.INSTALL BACK DOOR SIDE GARNISH RH
64790B
5.INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
