RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505939 WHEEL OPENING MOULDING(for Rear) A

EXTERIOR PANELS / TRIM  WHEEL OPENING MOULDING(for Rear)  REMOVAL


CAUTION / NOTICE / HINT

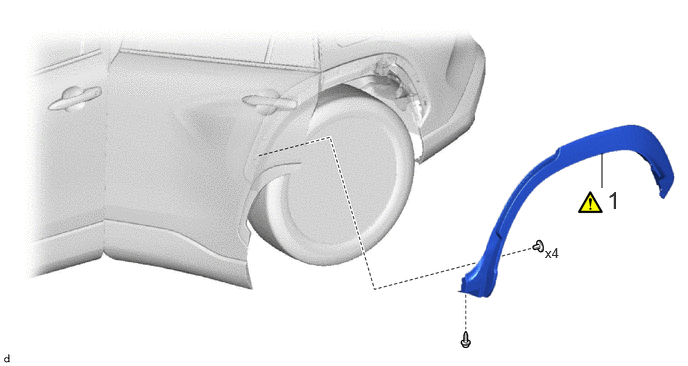

COMPONENTS (REMOVAL)
B622002N03
6.271,1.958 6.271,1.594 false 6.323,1.938 6.604,2.292 0.281,0.354 18 false 1 5.677,2.552 5.958,2.906 0.281,0.354 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 QUARTER OUTSIDE MOULDING SUB-ASSEMBLY 75606B (Click here) - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

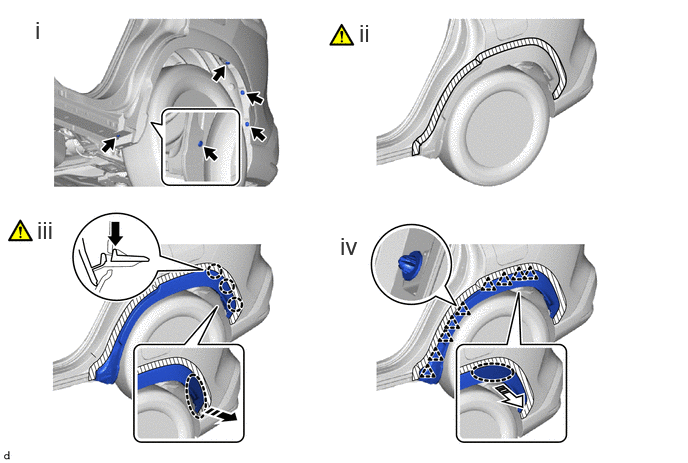

Hide 75606B 1.REMOVE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY

a.
B625556C03
0.365,0.167 0.573,0.448 0.208,0.281 18 false i 3.74,0.198 3.948,0.479 0.208,0.281 18 false ii 0.385,2.25 0.594,2.531 0.208,0.281 18 false iii 3.542,2.417 3.75,2.698 0.208,0.281 18 false iv
V100135

Push
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


i.

Remove the 4 clips and screw.


ii.

Apply protective tape around the quarter outside moulding sub-assembly as shown in the illustration.


iii.

Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

NOTICE:

To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly.



iv.

Disengage the clips to remove the quarter outside moulding sub-assembly as shown in the illustration.
