RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505938 WHEEL OPENING MOULDING(for Front) A

EXTERIOR PANELS / TRIM  WHEEL OPENING MOULDING(for Front)  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)

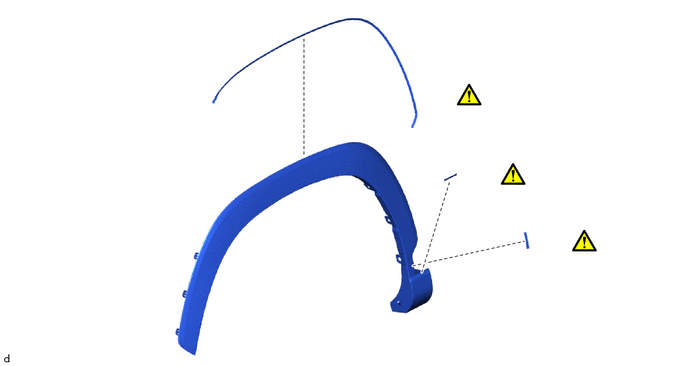

B622001
4.292,1 4.75,1 false 1.615,3.25 1.906,3.25 false 4.75,1.813 5.208,1.813 false 5.5,2.5 5.958,2.5 false 5.51,1.729 5.667,1.927 0.156,0.198 10 false ● 6.26,2.427 6.417,2.625 0.156,0.198 10 false ● 5.198,0.813 5.406,1.083 0.208,0.271 18 false 3 5.063,0.906 5.219,1.104 0.156,0.198 10 false ● 5.646,1.646 5.854,1.917 0.208,0.271 18 false 1 6.396,2.333 6.604,2.604 0.208,0.271 18 false 2 1.427,3.146 1.635,3.365 0.208,0.219 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 5 FRONT WHEEL OPENING EXTENSION PAD 53855B (Click here) - -
2 NO. 3 FRONT WHEEL OPENING EXTENSION PAD 53853 (Click here) - -
3 NO. 4 FRONT WHEEL OPENING EXTENSION PAD 53854 (Click here) - -

*1 FRONT FENDER MOULDING - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 53855B 1.INSTALL NO. 5 FRONT WHEEL OPENING EXTENSION PAD

a.

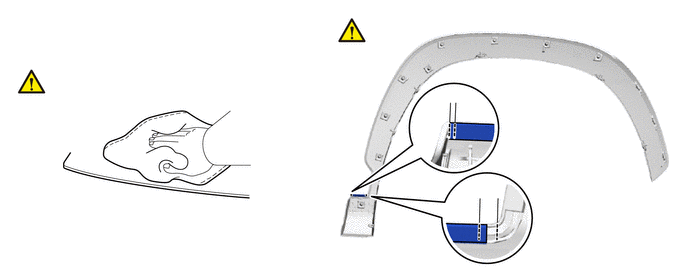

B583060
4.75,1.073 4.896,1.125 false 4.688,1.073 4.531,1.156 false 4.99,2.073 4.833,2.156 false 5.177,2.073 4.979,1.969 false 4.667,2.115 4.885,2.333 0.219,0.219 10 false *a 0.531,0.74 0.802,1.094 0.271,0.354 18 false i 3.885,0.198 4.156,0.552 0.271,0.354 18 false ii 4.958,1.094 5.177,1.313 0.219,0.219 10 false *a 4.385,1.125 4.604,1.344 0.219,0.219 10 false *a 4.813,1.875 5.031,2.094 0.219,0.219 10 false *a
*a Location Line - -


i.

Clean the front fender moulding.

1. Using a heat light, heat the front fender moulding surface.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove any remaining double-sided tape from the front fender moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 5 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 5 front wheel opening extension pad.

1. Using a heat light, heat the front fender moulding.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove the release paper from the No. 5 front wheel opening extension pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 5 front wheel opening extension pad as shown in the illustration.

HINT:
·

Make sure that the end of the No. 5 front wheel opening extension pad is between the location lines.

·

Press the No. 5 front wheel opening extension pad firmly to install it.





Hide 53853 2.INSTALL NO. 3 FRONT WHEEL OPENING EXTENSION PAD

a.

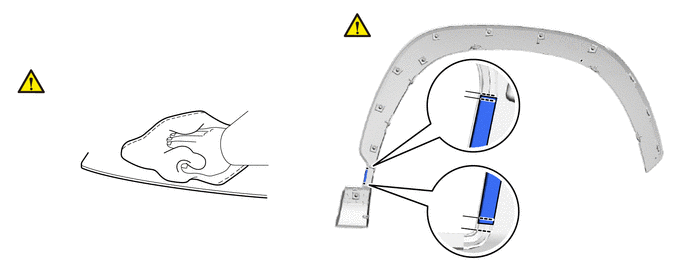

B583059
4.823,2.375 4.667,2.146 4.667,2.146 4.823,2.24 false 4.844,1 4.698,1.094 4.698,1.094 4.844,0.938 false 4.552,1.083 4.771,1.302 0.219,0.219 10 false *a 0.51,0.74 0.792,1.063 0.281,0.323 18 false i 3.917,0.104 4.198,0.427 0.281,0.323 18 false ii 4.5,2.031 4.719,2.25 0.219,0.219 10 false *a
*a Location Line - -


i.

Clean the front fender moulding.

1. Using a heat light, heat the front fender moulding surface.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove any remaining double-sided tape from the front fender moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 3 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 3 front wheel opening extension pad.

1. Using a heat light, heat the front fender moulding.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove the release paper from the No. 3 front wheel opening extension pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 3 front wheel opening extension pad as shown in the illustration.

HINT:
·

Make sure that the end of the No. 3 front wheel opening extension pad is between the location lines.

·

Press the No. 3 front wheel opening extension pad firmly to install it.





Hide 53854 3.INSTALL NO. 4 FRONT WHEEL OPENING EXTENSION PAD

a.

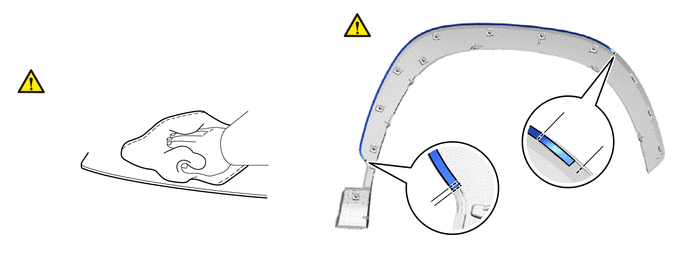

B583058
4.458,1.917 4.5,2.083 true 5.781,1.24 6.073,1.323 6.073,1.323 6.146,1.667 true 4.542,2.135 4.656,2.188 true 4.281,1.781 4.5,2 0.219,0.219 10 false *a 0.521,0.677 0.802,1.042 0.281,0.365 18 false i 3.906,0.073 4.188,0.438 0.281,0.365 18 false ii 4.708,2.146 4.927,2.365 0.219,0.219 10 true *a 6.094,1.219 6.313,1.438 0.219,0.219 10 false *a
*a Location Line - -


i.

Clean the front fender moulding.

1. Using a heat light, heat the front fender moulding surface.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove any remaining double-sided tape from the front fender moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 4 front wheel opening extension pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 4 front wheel opening extension pad.

1. Using a heat light, heat the front fender moulding.

Standard:
Item Temperature Item Temperature
Front Fender Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front fender moulding excessively.


2. Remove the release paper from the No. 4 front wheel opening extension pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 4 front wheel opening extension pad as shown in the illustration.

HINT:
·

Make sure that the end of the No. 4 front wheel opening extension pad is between the location lines.

·

Press the No. 4 front wheel opening extension pad firmly to install it.
