ROOF DRIP SIDE FINISH MOULDING
A
EXTERIOR PANELS / TRIM ROOF DRIP SIDE FINISH MOULDING REMOVAL
CAUTION / NOTICE / HINT

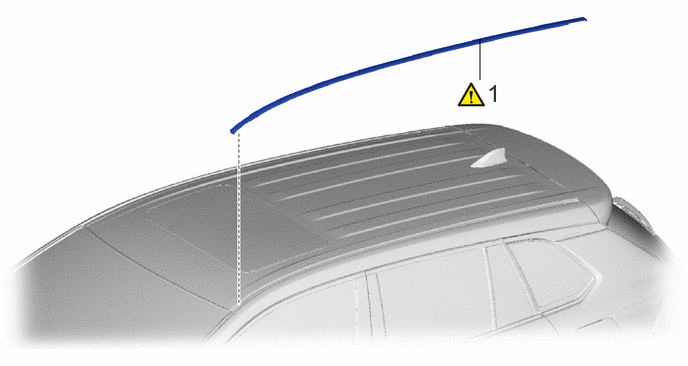

COMPONENTS (REMOVAL)
5,0.406 5,0.833
false
5.073,0.823 5.354,1.177
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | CENTER ROOF DRIP SIDE FINISH MOULDING | 75556C | ( 202201,999999,_59,_114126,_0505937,RM100000001ZPFX_01_0056,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
75556C
1.REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING
a.
4.875,0.854 4.781,0.667
true
6.24,1.594 6.146,1.406
true
0.375,0 0.656,0.354
0.281,0.354
18
false
i
4.042,0 4.323,0.354
0.281,0.354
18
false
ii
4.896,0.76 5.208,0.958
0.313,0.198
10
false
*a
6.271,1.5 6.583,1.698
0.313,0.198
10
false
*a
| *a | Roof Drip Side Finish Moulding Clip | - | - |
i.

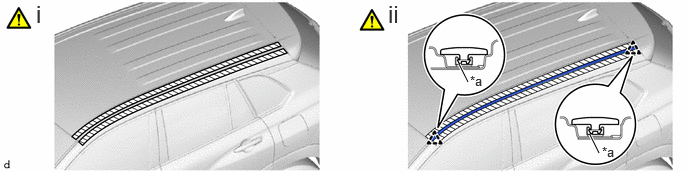

Apply protective tape around the center roof drip side finish moulding as shown in the illustration.
ii.
Disengage the clips to remove the center roof drip side finish moulding.
- NOTICE:
- ·
Do not remove the roof drip side finish moulding clip.
·If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
