RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505936 REAR DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)
B583325
5,1.01 5.26,1.01 false 5.063,2.292 5.323,2.292 false 5.656,0.917 5.813,1.115 0.156,0.198 10 false ● 5.385,2.188 5.583,2.375 0.198,0.188 10 false *1 5.813,0.865 6.063,1.25 0.25,0.385 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR DOOR OUTSIDE MOULDING UPPER PAD 75797 (Click here) - -

*1 REAR DOOR OUTSIDE LOWER MOULDING - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75797 1.INSTALL REAR DOOR OUTSIDE MOULDING UPPER PAD

a.

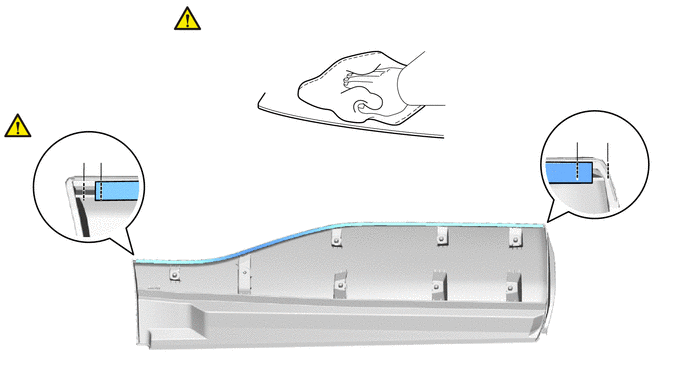

B583050
6.021,1.49 6.354,1.375 6.354,1.375 6.323,1.49 false 0.875,1.698 0.771,1.594 0.771,1.594 1.052,1.698 false 6.396,1.271 6.573,1.458 0.177,0.188 10 false *a 0.594,1.49 0.771,1.677 0.177,0.188 10 false *a 2.156,0.042 2.427,0.323 0.271,0.281 18 false i 0.385,1.156 0.656,1.438 0.271,0.281 18 false ii
*a Location Line - -


i.

Clean the rear door outside lower moulding.

1. Using a heat light, heat the rear door outside lower moulding surface.

Standard:
Item Temperature Item Temperature
Rear Door Outside Lower Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear door outside lower moulding excessively.


2. Remove any remaining double-sided tape from the rear door outside lower moulding.

3. Wipe off any tape adhesive residue with cleaner.


ii.

Install a new rear door outside moulding upper pad.

1. Using a heat light, heat the rear door outside lower moulding.

Standard:
Item Temperature Item Temperature
Rear Door Outside Lower Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear door outside lower moulding excessively.


2. Remove the release paper from the rear door outside moulding upper pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the rear door outside moulding upper pad as shown in the illustration.

HINT:
·

Make sure that the end of the rear door outside moulding upper pad is between the location lines.

·

Press the rear door outside moulding upper pad firmly to install it.
