EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

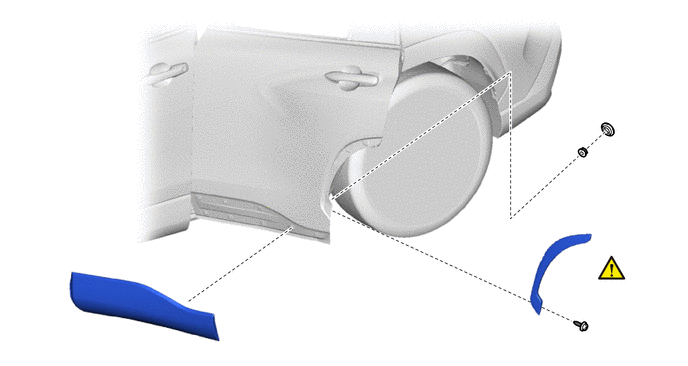

COMPONENTS (INSTALLATION)
B583326
5.833,1.917 6.833,2.083 1,0.167 2.25,3.417 2.563,3.417 false 6.385,1.333 6.698,1.333 false 6.073,1.625 6.333,1.75 6.333,1.75 6.333,1.917 false 5.979,2.531 6.063,2.792 6.063,2.792 6.229,2.792 false 6.76,1.146 7.042,1.5 0.281,0.354 18 false 3 6.521,2.688 6.656,2.875 0.135,0.188 10 false ● 6.635,2.615 6.917,2.969 0.281,0.354 18 false 1 2.625,3.229 2.906,3.583 0.281,0.354 18 false 2 5.885,1.917 6.885,2.083 1,0.167 8 false 5.0 (51, 44 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY 75076 (Click here) - -
2 REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY 75078 - - -
3 HOLE PLUG - - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75076 1.INSTALL REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

a.
B583297
2.594,2.229 2.76,3.083 2.76,3.083 3.323,3.385 true 2.781,3.083 3.323,2.958 true 2.573,3.042 2.885,3.198 0.313,0.156 10 false *a 2.646,0.167 2.854,0.448 0.208,0.281 18 false i 0.333,1.917 0.542,2.198 0.208,0.281 18 false ii 0.875,3.417 1.094,3.698 0.219,0.281 18 true iii 4.354,1.906 4.625,2.208 0.271,0.302 18 false iv
*a Double-sided Tape - -
V113147

Install in this Direction - -


i.

Clean the rear door panel.

1. Using a heat light, heat the rear door panel surface.

Standard:
Item Temperature Item Temperature
Rear Door Panel 40 to 60°C (104 to 140°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear door panel excessively.


2. Remove any remaining double-sided tape from the rear door panel.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the rear door outside moulding sub-assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new rear door outside moulding sub-assembly.

1. Using a heat light, heat the rear door panel surface.

Standard:
Item Temperature Item Temperature
Rear Door Panel 40 to 60°C (104 to 140°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear door panel excessively.


2. Remove the release paper from the rear door outside moulding sub-assembly.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Engage the clips and claw to install the rear door outside moulding sub-assembly.

HINT:

Press the rear door outside moulding sub-assembly firmly to install it.



iii.

Remove the protective tape.


iv.

Install the screw.



Hide 75078 2.INSTALL REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

Hide 3.INSTALL HOLE PLUG
