RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505935 FRONT DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)
B583324
4.958,0.813 5.229,0.813 false 5,2.219 5.271,2.219 false 5.646,0.729 5.802,0.927 0.156,0.198 10 false ● 5.313,2.125 5.552,2.385 0.24,0.26 10 false *1 5.792,0.667 5.99,1.021 0.198,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT DOOR OUTSIDE MOULDING UPPER PAD 75793 (Click here) - -

*1 FRONT DOOR OUTSIDE LOWER MOULDING - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75793 1.INSTALL FRONT DOOR OUTSIDE MOULDING UPPER PAD

a.

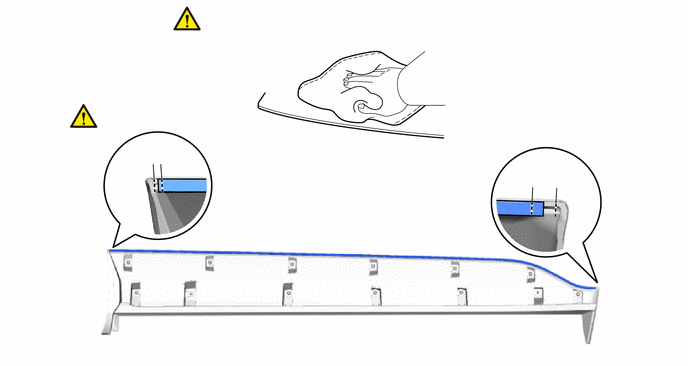

B583046
1.667,1.719 1.521,1.604 1.521,1.604 1.594,1.729 true 5.792,1.958 5.854,1.823 5.854,1.823 5.552,1.948 true 1.354,1.49 1.667,1.646 0.313,0.156 10 false *a 5.896,1.719 6.083,1.896 0.188,0.177 10 false *a 2.125,0.063 2.396,0.396 0.271,0.333 18 false i 1.052,1.063 1.323,1.396 0.271,0.333 18 false ii
*a Location Line - -


i.

Clean the front door outside lower moulding.

1. Using a heat light, heat the front door outside lower moulding surface.

Standard:
Item Temperature Item Temperature
Front Door Outside Lower Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front door outside lower moulding excessively.


2. Remove any remaining double-sided tape from the front door outside lower moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the front door outside moulding upper pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new front door outside moulding upper pad.

1. Using a heat light, heat the front door outside lower moulding.

Standard:
Item Temperature Item Temperature
Front Door Outside Lower Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the front door outside lower moulding excessively.


2. Remove the release paper from the front door outside moulding upper pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the front door outside moulding upper pad as shown in the illustration.

HINT:
·

Make sure that the end of the front door outside moulding upper pad is between the location lines.

·

Press the front door outside moulding upper pad firmly to install it.
