FRONT DOOR OUTSIDE MOULDING
A
EXTERIOR PANELS / TRIM FRONT DOOR OUTSIDE MOULDING REMOVAL
CAUTION / NOTICE / HINT

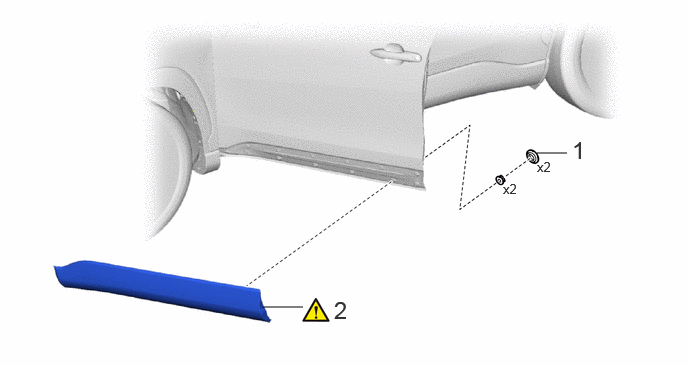

COMPONENTS (REMOVAL)
5.594,1.594 5.906,1.594
false
2.74,3.198 3.156,3.198
false
5.958,1.417 6.24,1.771
0.281,0.354
18
false
1
3.479,3.083 3.76,3.438
0.281,0.354
18
false
2
5.594,1.656 5.844,1.844
0.25,0.188
10
false
x2
5.24,1.885 5.49,2.073
0.25,0.188
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | HOLE PLUG | - | - | - | - |
| 2 | FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY | 75074 | ( 202201,999999,_59,_114126,_0505935,RM100000001ZPFP_01_0005,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE

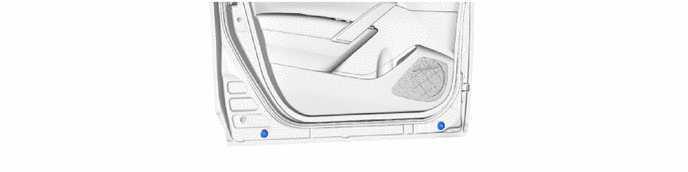

1.REMOVE HOLE PLUG
a.
75074
2.REMOVE FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY
a.
2.167,0.052 2.333,0.313
0.167,0.26
18
true
i
0.354,1.969 0.604,2.302
0.25,0.333
18
false
ii
3.615,1.979 3.865,2.313
0.25,0.333
18
false
iii
|
Remove in this Direction | - | - |

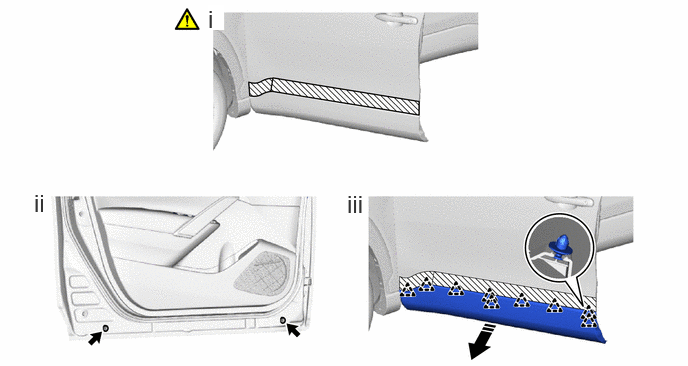

i.
Apply protective tape around the front door outside lower moulding sub-assembly as shown in the illustration.
ii.
Remove the 2 nuts.
iii.
Disengage the clips to remove the front door outside lower moulding sub-assembly as shown in the illustration.
