RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505909 REAR BUMPER(for TFTM Made) A

EXTERIOR PANELS / TRIM REAR BUMPER(for TFTM Made) REASSEMBLY

CAUTION / NOTICE / HINT

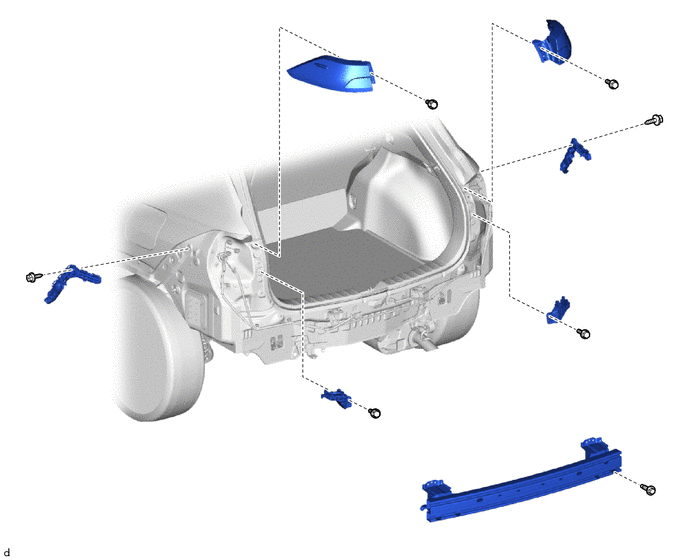

COMPONENTS (REASSEMBLY)

6.375,5.479 7.125,5.646 0.75,0.167 0.5,3.5 0.5,3.167 false 3.75,0.656 3.833,0.5 3.833,0.5 4,0.5 false 3.01,4.125 3.344,4.125 false 5.292,5.25 5.458,5.469 5.458,5.469 5.625,5.469 false 5.927,3.188 6.26,3.188 false 6.156,1.646 6.49,1.646 false 5.938,0.458 6.271,0.458 false 6.75,5.146 6.75,5.479 false 6.344,0.281 6.896,0.635 0.552,0.354 18 false 5 4.073,0.344 4.625,0.698 0.552,0.354 18 false 4 6.563,1.479 6.979,1.885 0.417,0.406 18 false 7 0.438,3.5 0.99,3.854 0.552,0.354 18 false 6 6.313,3.021 6.865,3.375 0.552,0.354 18 false 3 2.802,3.948 3.354,4.302 0.552,0.354 18 false 2 5.698,5.302 6.25,5.656 0.552,0.354 18 false 1 6.833,5.083 7.146,5.281 0.313,0.198 10 false x8 4.573,1.031 4.885,1.229 0.313,0.198 10 false x2 6.458,0.844 6.771,1.042 0.313,0.198 10 false x2 6.438,5.479 7.135,5.74 0.698,0.26 8 false 18 (184, 13) 0.323,2.906 0.635,3.104 0.313,0.198 10 false x2 6.906,1.24 7.156,1.51 0.25,0.271 10 false x2

Procedure		Part Name Code
1	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	52023	-	-	-
2	REAR BUMPER UPPER RETAINER LH	52563A	-	-	-
3	REAR BUMPER UPPER RETAINER RH	52562B	-	-	-
4	REAR COMBINATION LIGHT ASSEMBLY LH	81560	-	-	-
5	REAR COMBINATION LIGHT ASSEMBLY RH	81550	-	-	-
6	REAR BUMPER SIDE RETAINER LH	52576	-	-	-
7	REAR BUMPER SIDE RETAINER RH	52575	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

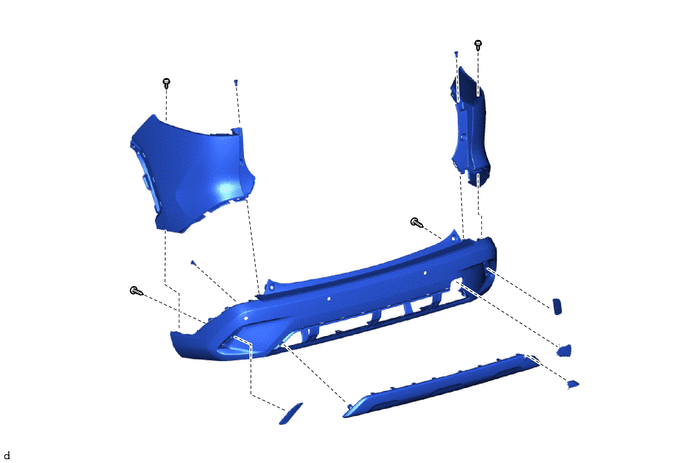

1.49,3.604 1.813,3.604 false 5.938,3.656 6.271,3.656 false 1.031,1.49 1.354,1.49 false 4.667,4.083 4.667,4.417 false 5.833,3.167 6.167,3.167 false 6.021,4 6.354,4 false 5.042,1.25 5.375,1.25 false 2.583,4.396 2.917,4.396 false 5.052,0.396 5.365,0.594 0.313,0.198 10 false x2 1.792,0.802 2.104,1 0.313,0.198 10 false x2 2.104,2.646 2.417,2.844 0.313,0.198 10 false x2 1.302,3.5 1.615,3.698 0.313,0.198 10 false *1 2.385,4.229 2.76,4.542 0.375,0.313 18 false 9 4.604,4.427 4.979,4.74 0.375,0.313 18 false 8 6.344,3.49 6.719,3.802 0.375,0.313 18 false 11 6.427,3.833 6.802,4.146 0.375,0.313 18 false 12 6.24,3 6.615,3.313 0.375,0.313 18 false 10 5.448,1.083 5.823,1.396 0.375,0.313 18 false 14 0.688,1.323 1.063,1.635 0.375,0.313 18 false 13

Procedure		Part Name Code
8	REAR BUMPER BAR	52151E	-	-	-
9	REFLEX REFLECTOR ASSEMBLY LH	81920	-	-	-
10	REFLEX REFLECTOR ASSEMBLY RH	81910	-	-	-
11	NO. 1 REAR BUMPER PLATE	52162B	-	-	-
12	REAR BUMPER PLATE RH	52163A	-	-	-
13	REAR BUMPER UPPER COVER LH	52166A	-	-	-
14	REAR BUMPER UPPER COVER RH	52165A	-	-	-

REAR BUMPER COVER

0.958,3.198 1.042,2.948 1.042,2.948 1.208,2.948 false 3.677,2.417 3.76,2.167 3.76,2.167 3.927,2.167 false 5.646,0.917 5.75,1.083 5.75,1.083 5.917,1.083 false 6.333,2.75 6.333,3.083 false 2.167,0.729 2.167,1.063 false 3.51,1.781 3.594,1.531 3.594,1.531 3.76,1.531 false 0.844,2.573 0.927,2.323 0.927,2.323 1.094,2.323 false 2.021,1.073 2.573,1.427 0.552,0.354 18 false 16 1.177,2.156 1.729,2.51 0.552,0.354 18 false 19 6.365,0.906 6.917,1.26 0.552,0.354 18 false 15 4.344,2 4.896,2.354 0.552,0.354 18 false 18 1.615,2.771 2.167,3.125 0.552,0.354 18 false 18 6.198,3.083 6.75,3.438 0.552,0.354 18 false 17 6.031,2.531 6.344,2.729 0.313,0.198 10 false x4 0.083,0.063 0.458,0.302 0.375,0.24 12 false *A 1.49,2.875 1.646,3.073 0.156,0.198 10 false ● 4.208,2.094 4.365,2.292 0.156,0.198 10 false ● 6.229,1 6.385,1.198 0.156,0.198 10 false ● 3.823,1.365 4.375,1.719 0.552,0.354 18 false 19 5.729,0.854 6.042,1.052 0.313,0.198 10 false x4

Procedure		Part Name Code
15	ULTRASONIC SENSOR CLIP	89348Y	(202201,999999,_59,_114126,_0505909,RM100000001ZPAG_01_0288,)	-	-
16	NO. 6 FLOOR WIRE	82169A	-	-	-
17	KICK DOOR CONTROL SENSOR ASSEMBLY	891B0	-	-	-
18	REAR CORNER ULTRASONIC SENSOR RETAINER	89C48A	(202201,999999,_59,_114126,_0505909,RM100000001ZPAG_01_0286,)	-	-
19	REAR CORNER ULTRASONIC SENSOR	89342	-	-	-

*A	w/ Wire Harness	-	-
●	Non-reusable part	-	-

PROCEDURE

Hide Display 52023 1.INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

Torque:: 18 N*m (184 kgf*cm, 13 ft.*lbf)

Hide Display 52563A 2.INSTALL REAR BUMPER UPPER RETAINER LH

Hide Display 52562B 3.INSTALL REAR BUMPER UPPER RETAINER RH

Hide Display 81560 4.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

Hide Display 81550 5.INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

Hide Display 52576 6.INSTALL REAR BUMPER SIDE RETAINER LH

Hide Display 52575 7.INSTALL REAR BUMPER SIDE RETAINER RH

Hide Display 52151E 8.INSTALL REAR BUMPER BAR

Hide Display 81920 9.INSTALL REFLEX REFLECTOR ASSEMBLY LH

Hide Display 81910 10.INSTALL REFLEX REFLECTOR ASSEMBLY RH

Hide Display 52162B 11.INSTALL NO. 1 REAR BUMPER PLATE

Hide Display 52163A 12.INSTALL REAR BUMPER PLATE RH

Hide Display 52166A 13.INSTALL REAR BUMPER UPPER COVER LH

Hide Display 52165A 14.INSTALL REAR BUMPER UPPER COVER RH

Hide Display 89348Y 15.INSTALL ULTRASONIC SENSOR CLIP (w/ Wire Harness)

NOTICE:: When installing the 4 new ultrasonic sensor clips, heat the rear bumper cover heat light.

Item	Temperature
Rear Bumper Cover	20 to 30°C (68 to 86°F)

CAUTION:

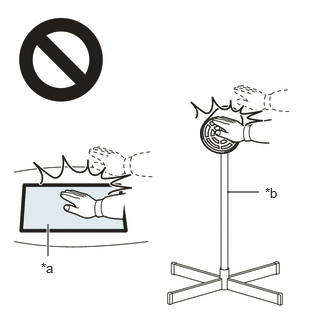

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts, touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the rear bumper cover excessively.

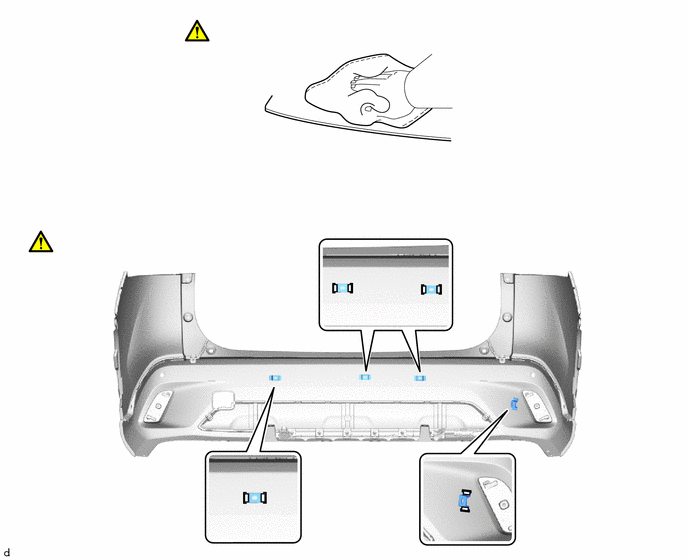

3.479,2.948 3.563,2.833 3.563,2.833 3.646,2.948 true 4.406,2.958 4.49,2.844 4.49,2.844 4.573,2.958 true 2.563,5.24 2.646,5.354 2.646,5.354 2.729,5.24 true 4.802,5.302 4.583,5.156 4.583,5.156 4.813,5.115 true 0.594,2.344 1.146,2.698 0.552,0.354 18 false ii 2.229,0.146 2.781,0.5 0.552,0.354 18 false i 3.5,2.646 3.667,2.813 0.167,0.167 10 true *a 4.417,2.656 4.583,2.823 0.167,0.167 10 true *a 2.563,5.375 2.729,5.542 0.167,0.167 10 true *a 4.396,5.063 4.563,5.229 0.167,0.167 10 true *a

Location Line

Clean the rear bumper cover surface by the below procedure.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove any remaining double-sided tape from the rear bumper cover.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:: ·

Installing the 4 ultrasonic sensor clips with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

ii.

Install 4 new ultrasonic sensor clips by the below procedure.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove the release paper from the 4 ultrasonic sensor clips.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the 4 ultrasonic sensor clips along the location line on the rear bumper assembly as shown in the illustration.

Hide Display 82169A 16.INSTALL NO. 6 FLOOR WIRE (w/ Wire Harness)

Hide Display 891B0 17.INSTALL KICK DOOR CONTROL SENSOR ASSEMBLY (w/ Wire Harness)

Hide Display 89C48A 18.INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Wire Harness)

Click here(

202201,999999,_56,_111969,_0499996,RM100000001Z128_01_0061,)

Hide Display 89342 19.INSTALL REAR CORNER ULTRASONIC SENSOR (w/ Wire Harness)
