RM38T0EC _54 Brake _113942 BRAKE SYSTEM (OTHER) _0505306 VACUUM PUMP(except BOSCH Made) A

BRAKE SYSTEM (OTHER)  VACUUM PUMP(except BOSCH Made)  REASSEMBLY


CAUTION / NOTICE / HINT

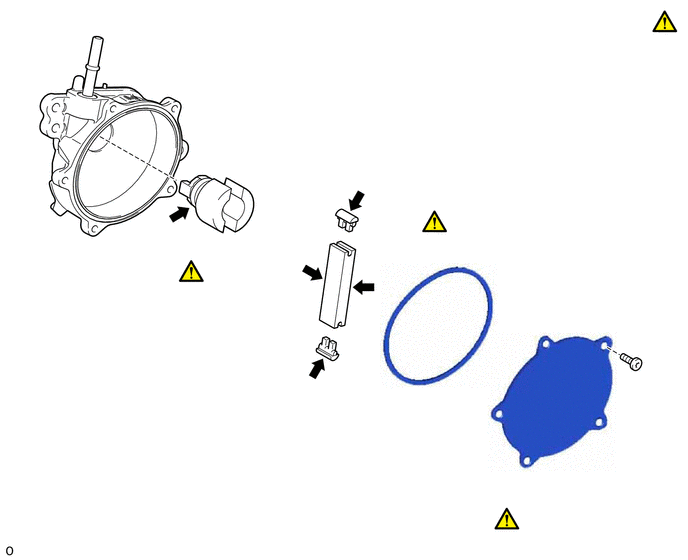

COMPONENTS (REASSEMBLY)
C461335
2.854,1.917 3.927,4 1.073,2.083 5.281,2.74 6.448,2.906 1.167,0.167 5.646,5.396 5.813,5.396 5.813,5.396 5.917,4.656 false 3.927,2.302 4.375,2.302 false 3.208,3.083 3.354,3.083 false 3.167,3.635 3.292,3.635 false 3.333,2.229 3.49,2.229 false 2.094,2.625 2.094,2.292 false 5.115,3.219 5.448,3.219 false 1.885,1.094 2.385,1.094 false 6.281,0.188 6.781,0.188 false 6.448,2.823 6.615,2.823 6.615,2.823 6.615,3.719 false 5.448,5.271 5.729,5.625 0.281,0.354 18 false 4 6.708,3.729 7.021,3.927 0.313,0.198 10 false x5 5.146,2.729 5.302,2.927 0.156,0.198 10 false ● 4.656,2.167 4.938,2.521 0.281,0.354 18 false 3 5.51,3.135 5.844,3.344 0.333,0.208 10 false ●*1 2.917,3.552 3.25,3.74 0.333,0.188 10 false ●*3 2.146,2.688 2.406,3.042 0.26,0.354 18 false 2 2.948,3 3.479,3.208 0.531,0.208 10 false ●*2 2.427,1.021 2.76,1.229 0.333,0.208 10 false *4 5.76,0.052 6.365,0.406 0.604,0.354 18 false 1, 5 5.396,2.75 6.594,2.938 1.198,0.188 8 false 7.5 (76, 66 in.*lbf) 3.073,2.146 3.406,2.333 0.333,0.188 10 false ●*3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CLEAN VACUUM PUMP HOUSING - (Click here) - -
2 VACUUM PUMP ROTOR - (Click here) - -
3 VACUUM PUMP VANE AND VACUUM PUMP VANE CAP - (Click here) - -
4 END COVER 29314A (Click here) - -
5 INSPECT VACUUM PUMP ASSEMBLY - (Click here) - -

*1 VACUUM PUMP COVER O-RING *2 VACUUM PUMP VANE
*3 VACUUM PUMP VANE CAP *4 VACUUM PUMP HOUSING
V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
V100135

Engine oil - -

CAUTION / NOTICE / HINT

HINT:

Refer to the following illustration and check which type is installed to the vehicle.

C449630C01
2.167,3.25 2,3.25 2,3.25 1.479,1.594 true 0.25,0.427 0.625,0.667 0.375,0.24 12 false *A 3.667,0.427 4.042,0.667 0.375,0.24 12 false *B 2.219,3.167 2.531,3.365 0.313,0.198 10 false *a
*A for BOSCH Made *B except BOSCH Made
*a Mark - -



PROCEDURE

Hide 1.CLEAN VACUUM PUMP HOUSING

a.
C461330
2.125,0.042 2.406,0.396 0.281,0.354 18 false i

i.

Clean the inside surface of the vacuum pump housing.



Hide 2.INSTALL VACUUM PUMP ROTOR

a.
C461332
0.375,0.042 1.75,0.396 1.375,0.354 18 false i, ii 4.188,0.021 4.635,0.375 0.448,0.354 18 false iii
V100144

Engine Oil
V113147

Install in this Direction


i.

Clean the vacuum pump rotor.


ii.

Apply engine oil to the areas of the vacuum pump rotor shown in the illustration.


iii.

Install the vacuum pump rotor to the vacuum pump housing.



Hide 3.INSTALL VACUUM PUMP VANE AND VACUUM PUMP VANE CAP

a.
C461368
0.563,1.052 0.896,1.052 false 2.833,0.677 3.167,0.677 false 1.958,1.052 2.104,1.323 2.104,1.323 2.271,1.323 false 0.531,0.073 0.865,0.406 0.333,0.333 18 false i 0.365,0.969 0.677,1.167 0.313,0.198 10 false *1 3.229,0.604 3.542,0.802 0.313,0.198 10 false *1 2.333,1.25 2.646,1.448 0.313,0.198 10 false *2 4.188,0.073 4.635,0.406 0.448,0.333 18 false ii
*1 Vacuum Pump Vane Cap *2 Vacuum Pump Vane


i.

Apply engine oil to a new vacuum pump vane and 2 new vacuum pump vane caps and install the vacuum pump vane caps to the vacuum pump vane.


ii.

Apply engine oil to the vacuum pump vane with the 2 vacuum pump vane caps and install it to the vacuum pump housing.



Hide 29314A 4.INSTALL END COVER

a.
C461333
6.094,2.51 6.427,2.51 false 1.125,3.25 1.458,3.25 false 2.979,3.25 3.313,3.25 false 6.458,2.427 6.771,2.625 0.313,0.198 10 false *1 0.375,0.052 0.656,0.406 0.281,0.354 18 false i 4.313,0.042 4.594,0.396 0.281,0.354 18 false ii 0.354,2.031 0.635,2.385 0.281,0.354 18 false iii 0.906,3.167 1.219,3.365 0.313,0.198 10 false *a 3.354,3.167 3.667,3.365 0.313,0.198 10 false *a
*1 Vacuum Pump Cover O-ring - -
*a Wooden Block - -


i.

Clean the inside surface of the end cover.


ii.

Install a new vacuum pump cover O-ring to the vacuum pump housing.

NOTICE:
·

Wipe off any oil on the end cover installation surface and end cover.

·

Check that no foreign matter is on the vacuum pump cover O-ring or inside the vacuum pump housing.




iii.

Using a T30 "TORX" socket wrench, install the end cover with 5 new screws.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

Hold the pump so that the pump installation surface and fitting parts will not be damaged.

·

As the housing deforms when force is applied, do not secure the housing with a tool such as a vise.

·

Securely fit the T30 "TORX" socket wrench to the screws.

·
C448422
2.958,3.74 2.635,3.573 false 3,3.667 3.24,4 0.24,0.333 10 false *1 0.448,0.313 0.688,0.646 0.24,0.333 10 false *a 0.448,2.583 0.688,2.917 0.24,0.333 10 false *b

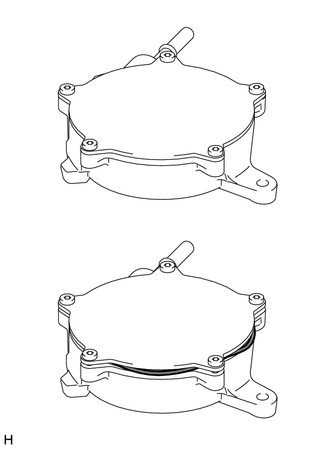

*1 Vacuum Pump Cover O-ring
*a Correct
*b Incorrect


After installing the end cover, check that the vacuum pump cover O-ring is not caught.





Hide 5.INSPECT VACUUM PUMP ASSEMBLY

a.
C461334
2,0.583 2.667,0.583 true 5.635,0.583 6.302,0.583 true 0.354,0.031 0.635,0.385 0.281,0.354 18 false i 0.854,0.167 1.167,0.365 0.313,0.198 10 false *a 4.438,0.167 4.75,0.365 0.313,0.198 10 false *b 2.719,0.51 3.031,0.708 0.313,0.198 10 false *1 6.302,0.5 6.615,0.698 0.313,0.198 10 false *1
*1 Coupling - -
*a Correct *b Incorrect


i.

While looking from the coupling side of the vacuum pump assembly, rotate the coupling clockwise.

Standard:

Rotates without locking.


NOTICE:
·

As the vacuum pump vane cap may become damaged, do not rotate the coupling counterclockwise.

·

Even if rotation fluctuates between heavy and light, it is not a malfunction unless the coupling locks.
