RM38T0EC _53 Suspension _113127 TIRE PRESSURE MONITORING _0503378 TIRE PRESSURE WARNING VALVE A

TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING VALVE  REMOVAL


CAUTION / NOTICE / HINT

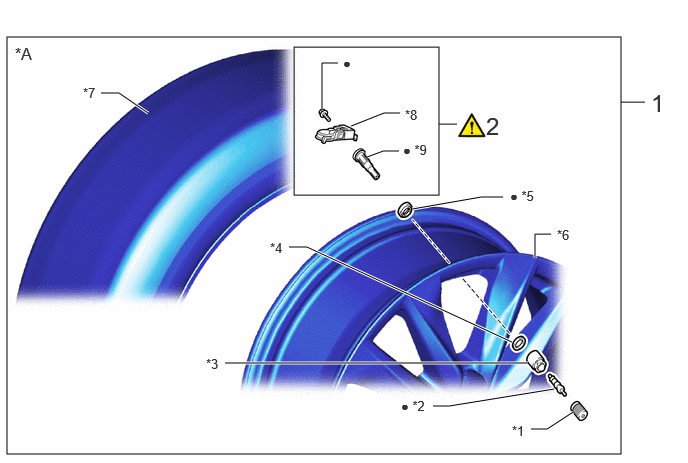

COMPONENTS (REMOVAL)
C501006N02
0.073,0.385 6.469,4.729 6.396,4.344 3.063,0.49 4.573,2.031 1.51,1.542 6.469,1.063 6.719,1.063 true 3.656,1.313 4,1.177 4,1.177 4.167,1.177 true 3.354,1.135 3.354,0.656 3.354,0.656 3.521,0.656 true 4.573,1.292 4.76,1.292 true 5.531,4.469 5.698,4.469 5.698,4.469 5.969,4.292 true 4.51,4.229 4.677,4.229 4.677,4.229 5.771,4.052 true 2.344,3.781 5.5,3.781 true 3.01,2.573 3.198,2.573 3.198,2.573 5.333,3.563 true 1.052,0.969 1.24,0.969 1.24,0.969 1.542,1.177 true 4.292,2.177 5.01,2.052 5.01,2.052 5.24,2.052 true 3.823,1.635 3.99,1.573 3.99,1.573 4.156,1.573 true 5.573,2.688 5.573,2.438 5.573,2.438 5.74,2.438 true 6.781,0.927 7.052,1.219 0.271,0.292 18 false 1 5.063,1.167 5.406,1.458 0.344,0.292 18 false 2 5.333,4.406 5.646,4.604 0.313,0.198 10 false *1 4.177,4.146 4.573,4.344 0.396,0.198 10 false ● *2 2.146,3.708 2.458,3.906 0.313,0.198 10 false *3 2.813,2.5 3.073,2.708 0.26,0.208 10 false *4 5.313,1.958 5.875,2.156 0.563,0.198 10 false ● *5 5.802,2.365 6.115,2.563 0.313,0.198 10 false *6 0.865,0.885 1.198,1.083 0.333,0.198 10 false *7 3.573,0.573 3.833,0.771 0.26,0.198 10 false ● 4.219,1.115 4.531,1.313 0.313,0.198 10 false *8 4.198,1.479 4.594,1.688 0.396,0.208 10 false ● *9 0.156,0.458 0.49,0.656 0.333,0.198 12 false *A

Procedure Part Name Code
Z101186

Z101188

Z101187

1 WHEEL ASSEMBLY - - - -
2 TIRE PRESSURE WARNING VALVE AND TRANSMITTER 42607 (Click here) - -

*A for Type A - -
*1 TIRE VALVE CAP *2 VALVE CORE
*3 NUT *4 WASHER
*5 GROMMET *6 DISC WHEEL
*7 TIRE *8 TIRE PRESSURE MONITOR SENSOR
*9 TUBELESS TIRE VALVE - -
● Non-reusable part - -

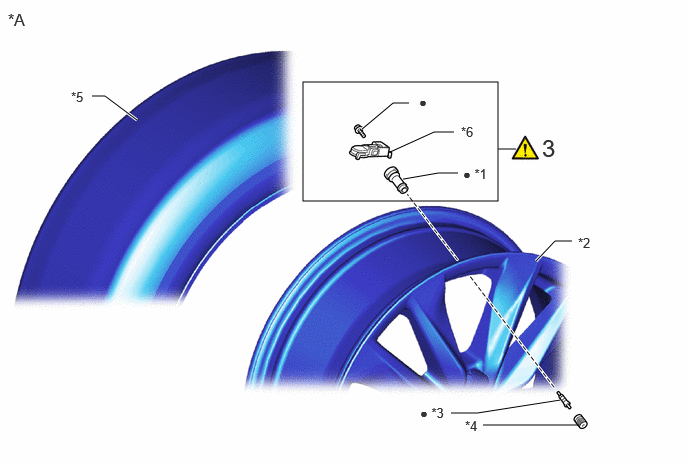

C500671N02
3.156,0.854 5.188,2.094 2.031,1.24 4.729,1.375 4.521,1.375 4.521,1.375 4.063,1.583 false 4.771,1.802 4.563,1.802 4.563,1.802 4.198,1.865 false 5.833,4.167 4.969,4.302 4.969,4.302 4.698,4.302 false 1.427,1.25 1.094,1 1.094,1 0.958,1 true 5.958,2.51 5.781,2.51 5.781,2.51 5.583,2.719 true 4.26,1.073 4.094,1.073 4.094,1.073 3.771,1.344 true 5.375,1.552 5.188,1.552 false 6.031,4.427 5.031,4.427 false 5.646,1.396 5.927,1.75 0.281,0.354 18 false 3 4.365,0.979 4.542,1.188 0.177,0.208 10 false ● 4.823,1.729 5.198,1.906 0.375,0.177 10 false ● *1 0.74,0.927 1.031,1.104 0.292,0.177 10 false *5 4.375,4.219 4.792,4.396 0.417,0.177 10 false ● *3 6.021,2.448 6.396,2.625 0.375,0.177 10 false *2 4.844,4.354 5.125,4.542 0.281,0.188 10 false *4 4.802,1.292 5.177,1.469 0.375,0.177 10 false *6 0.083,0.104 0.417,0.333 0.333,0.229 12 false *A

Procedure Part Name Code
Z101186

Z101188

Z101187

3 TIRE PRESSURE WARNING VALVE AND TRANSMITTER 42607 (Click here) - -

*A for Type B - -
*1 TUBELESS TIRE VALVE *2 DISC WHEEL
*3 VALVE CORE *4 TIRE VALVE CAP
*5 TIRE *6 TIRE PRESSURE MONITOR SENSOR
● Non-reusable part - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning valve and transmitter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Tire pressure warning valve and transmitter
·

ID Registration

·

Initialization

·

Tire Position Identification


Tire Pressure Warning System (Click here)

PROCEDURE

Hide 42607 2.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type A)

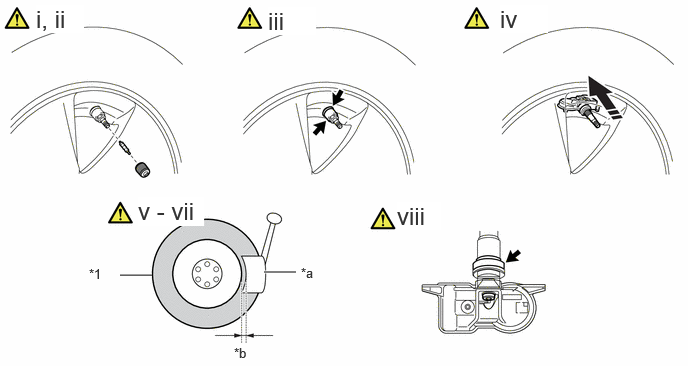

a.
C501804C01
2.75,2.833 3.083,2.833 true 1.25,2.865 1.583,2.865 true 0.927,2.771 1.26,2.969 0.333,0.198 10 false *1 3.135,2.76 3.448,2.917 0.313,0.156 10 false *a 2.438,3.594 2.813,3.76 0.375,0.167 10 false *b 2.792,0.073 3.292,0.365 0.5,0.292 18 true iii 0.375,0.052 0.875,0.344 0.5,0.292 18 true i, ii 5.208,0.052 5.708,0.344 0.5,0.292 18 true iv 1.438,2.052 2.125,2.354 0.688,0.302 18 true v - vii 4.135,2.104 4.594,2.396 0.458,0.292 18 true viii
*1 Tire - -
*a Shoe *b 10 to 20 mm (0.394 to 0.787 in.)


i.

Remove the tire valve cap.

NOTICE:

Keep the removed tire valve cap.



ii.

Remove the valve core to release the air from the tire.

NOTICE:

Make sure that a sufficient amount of air has been released.



iii.

Using a 11 mm deep socket wrench, remove the nut and washer.


iv.

Drop the tire pressure warning valve and transmitter with grommet into the tire.

HINT:

The grommet may remain attached to the rim.



v.

Using a tire remover, remove the tire from the disc wheel.

NOTICE:
·

Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.

·

Set the tire remover shoe as shown in the illustration.




vi.

Take out the tire pressure warning valve and transmitter with grommet from the tire.


vii.

Remove the grommet from the tire pressure warning valve and transmitter.


viii.

Using a T10 "TORX" socket wrench, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.



Hide 42607 3.REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type B)

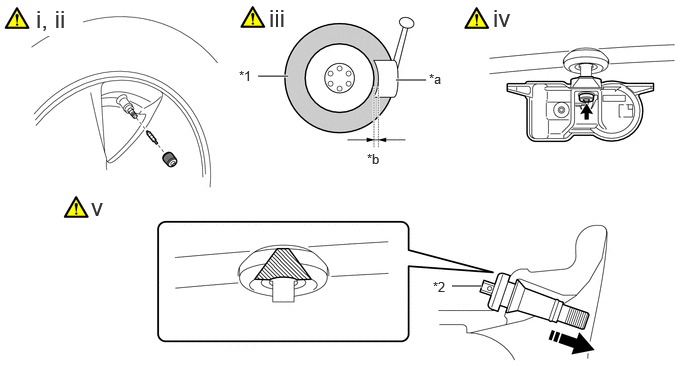

a.
C449981C08
2.688,0.792 3,0.792 true 4.125,0.833 4.438,0.833 true 4.708,2.979 5.021,2.979 true 0.375,0.052 0.865,0.375 0.49,0.323 18 true i, ii 2.49,0.708 2.802,0.906 0.313,0.198 10 false *1 4.469,0.74 4.781,0.938 0.313,0.198 10 false *a 3.823,1.573 4.135,1.771 0.313,0.198 10 false *b 4.51,2.906 4.823,3.104 0.313,0.198 10 false *2 2.802,0.042 3.292,0.365 0.49,0.323 18 false iii 5.135,0.042 5.625,0.365 0.49,0.323 18 false iv 0.948,2.01 1.438,2.333 0.49,0.323 18 false v
*1 Tire *2 Tubeless Tire Valve
*a Shoe *b 10 to 20 mm (0.394 to 0.787 in.)
V100155

Cutting Range - -


i.

Remove the tire valve cap.

NOTICE:

Keep the removed tire valve cap.



ii.

Remove the valve core to release the air from the tire.

NOTICE:

Make sure that a sufficient amount of air has been released.



iii.

Using a tire remover, remove the tire from the disc wheel.

NOTICE:
·

Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.

·

Set the tire remover shoe as shown in the illustration.




iv.

Using a T10 "TORX" socket wrench, remove the bolt.


v.

Cut the tubeless tire valve as shown in the illustration, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
