RM38T0EC _53 Suspension _113127 TIRE PRESSURE MONITORING _0503378 TIRE PRESSURE WARNING VALVE N

TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING VALVE  DISPOSAL


CAUTION / NOTICE / HINT

HINT:

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it properly.


PROCEDURE

Hide 42607 1.DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type A)

a.

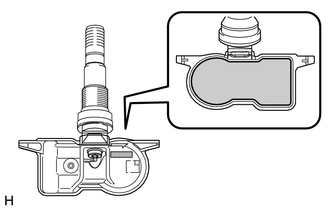

C411115C01
0,0 0,0 false
V100145

Urethane


Remove the urethane that protects the lithium battery and the circuit board.


b.

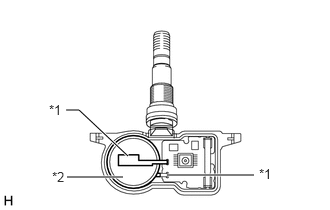

C411118C01
0.688,1.146 0.823,1.146 0.823,1.146 1.333,1.625 true 0.698,1.844 1.281,1.844 true 1.75,1.823 2.646,1.823 true 0.542,1.76 0.854,1.958 0.313,0.198 10 false *2 0.51,1.063 0.823,1.26 0.313,0.198 10 false *1 2.698,1.729 3.01,1.927 0.313,0.198 10 false *1
*1 Terminal
*2 Lithium Battery


Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.


Hide 42607 2.DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type B)

a.
C398231C02
0,0 0,0 false
V100145

Urethane


Remove the urethane that protects the lithium battery and the circuit board.


b.

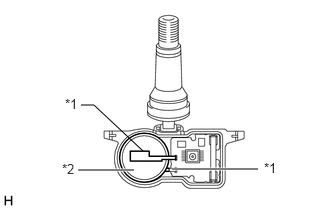

C399403C01
0.844,1.094 0.979,1.094 0.979,1.094 1.49,1.573 false 0.813,1.771 1.396,1.771 true 1.792,1.76 2.688,1.76 true 0.646,1.677 0.958,1.875 0.313,0.198 10 false *2 0.677,1 0.99,1.198 0.313,0.198 10 false *1 2.75,1.667 3.063,1.865 0.313,0.198 10 false *1
*1 Terminal
*2 Lithium Battery


Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.
