STEERING GEAR / LINKAGE  STEERING GEAR  DISASSEMBLY


CAUTION / NOTICE / HINT

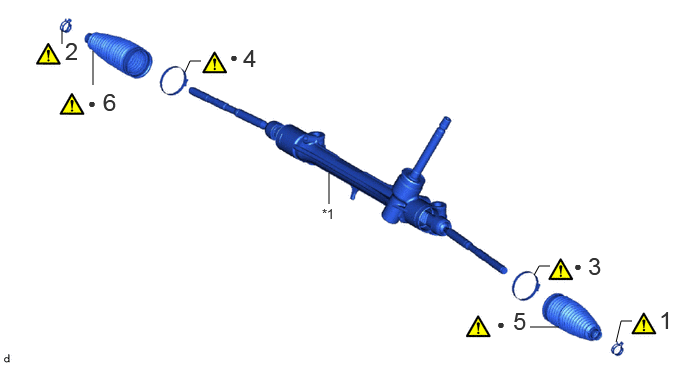

COMPONENTS (DISASSEMBLY)
B576159N01
0.646,0.458 0.646,0.323 false 1.927,0.75 1.979,0.635 1.979,0.635 2.094,0.635 false 0.969,0.885 0.969,0.531 false 3.427,2.125 3.427,1.802 false 5.563,2.865 5.615,2.771 5.615,2.771 5.729,2.771 false 5.823,3.406 5.521,3.406 false 6.417,3.563 6.469,3.344 6.469,3.344 6.583,3.344 false 0.917,0.99 1.031,1.188 0.115,0.198 10 false ● 2.396,0.51 2.51,0.708 0.115,0.198 10 false ● 5.979,2.688 6.094,2.885 0.115,0.198 10 false ● 5.177,3.292 5.292,3.49 0.115,0.198 10 false ● 0.677,0.385 0.865,0.667 0.188,0.281 18 false 2 1.073,0.917 1.26,1.198 0.188,0.281 18 false 6 2.531,0.458 2.719,0.74 0.188,0.281 18 false 4 3.354,2.146 3.573,2.354 0.219,0.208 10 false *1 6.125,2.625 6.313,2.906 0.188,0.281 18 false 3 5.344,3.198 5.531,3.479 0.188,0.281 18 false 5 6.865,3.188 7.052,3.469 0.188,0.281 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 STEERING RACK BOOT CLIP (for LH Side) 45535B (Click here) - -
2 STEERING RACK BOOT CLIP (for RH Side) 45535B (Click here) - -
3 NO. 2 STEERING RACK BOOT CLAMP (for LH Side) 45535A (Click here) - -
4 NO. 2 STEERING RACK BOOT CLAMP (for RH Side) 45535A (Click here) - -
5 NO. 1 STEERING RACK BOOT (for LH Side) 45535 (Click here) - -
6 NO. 1 STEERING RACK BOOT (for RH Side) 45535 (Click here) - -

*1 STEERING GEAR ASSEMBLY - -
● Non-reusable part - -

PROCEDURE

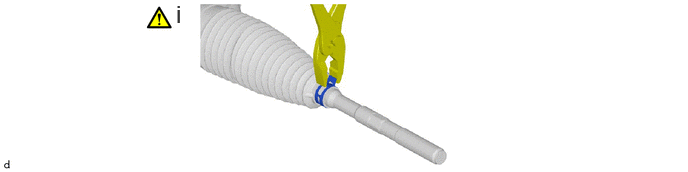

Hide 45535B 1.REMOVE STEERING RACK BOOT CLIP (for LH Side)

a.
B582170N01
1.833,0 2.01,0.281 0.177,0.281 18 false i

i.

Using pliers, remove the steering rack boot clip.



Hide 45535B 2.REMOVE STEERING RACK BOOT CLIP (for RH Side)

a.

Perform the same procedure as for the LH side.

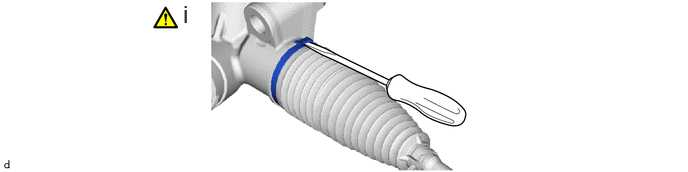

Hide 45535A 3.REMOVE NO. 2 STEERING RACK BOOT CLAMP (for LH Side)

a.
B582171N01
1.906,0 2.188,0.354 0.281,0.354 18 false i

i.

Using a screwdriver, remove the No. 2 steering rack boot clamp.

NOTICE:

Be careful not to damage the No. 1 steering rack boot.




Hide 45535A 4.REMOVE NO. 2 STEERING RACK BOOT CLAMP (for RH Side)

a.

Perform the same procedure as for the LH side.

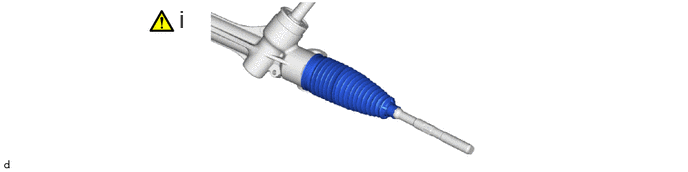

Hide 45535 5.REMOVE NO. 1 STEERING RACK BOOT (for LH Side)

a.
B585865C01
1.865,0.052 2.146,0.406 0.281,0.354 18 false i

i.

Remove the No. 1 steering rack boot.

NOTICE:
·

Check that there is no water, foreign matter or rust inside of the removed No. 1 steering rack boot.

·

If there is no water, foreign matter or rust inside of the No. 1 steering rack boot, pull out the rack bar and check for water, foreign matter or rust.

·

If water or foreign matter in either part, replace them with a new steering gear assembly.

·

In order to avoid water or foreign matter from adhering to the parts, do not touch the parts unless working in a dust-free, indoors environment.





Hide 45535 6.REMOVE NO. 1 STEERING RACK BOOT (for RH Side)

a.

Perform the same procedure as for the LH side.
