HEADLIGHT LEVELING SWITCH
A
LIGHTING (EXT) HEADLIGHT LEVELING SWITCH INSTALLATION
CAUTION / NOTICE / HINT

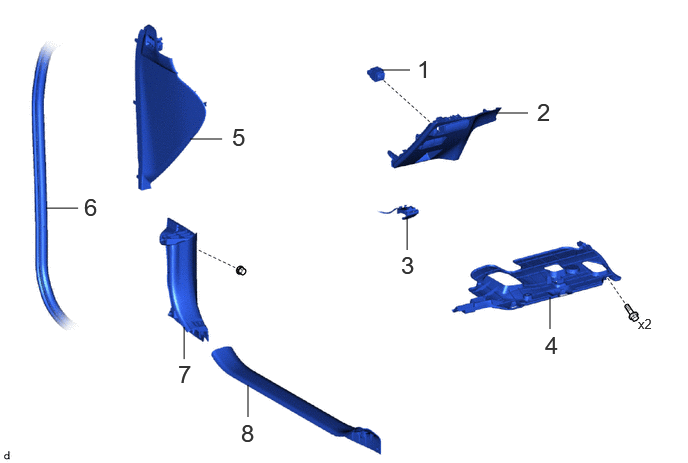

COMPONENTS (INSTALLATION)
0.479,2.167 0.813,2.167
false
1.917,3.74 1.917,3.406
false
2.583,4.344 2.583,4.01
false
4.24,2.604 4.24,2.271
false
5.729,3.427 5.729,3.094
false
3.979,0.729 4.271,0.729
false
1.979,1.448 2.313,1.448
false
5.167,1.177 5.5,1.177
false
2.51,4.365 2.792,4.719
0.281,0.354
18
false
8
1.854,3.75 2.135,4.104
0.281,0.354
18
false
7
0.875,2.01 1.156,2.365
0.281,0.354
18
false
6
2.417,1.281 2.698,1.635
0.281,0.354
18
false
5
5.677,3.448 5.958,3.802
0.281,0.354
18
false
4
4.177,2.615 4.458,2.969
0.281,0.354
18
false
3
5.594,1.021 5.875,1.375
0.281,0.354
18
false
2
4.344,0.573 4.625,0.927
0.281,0.354
18
false
1
6.646,3.292 6.958,3.49
0.313,0.198
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | HEADLIGHT LEVELING SWITCH | 84152 | - | - | - |
| 2 | LOWER INSTRUMENT PANEL FINISH PANEL | 55432B | - | - | - |
| 3 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 4 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 5 | NO. 1 INSTRUMENT SIDE PANEL | 55317E | - | - | - |
| 6 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | 62312B | - | - | - |
| 7 | COWL SIDE TRIM SUB-ASSEMBLY LH | 62112A | - | - | - |
| 8 | FRONT DOOR SCUFF PLATE LH | 67914B | - | - | - |
PROCEDURE
84152
1.INSTALL HEADLIGHT LEVELING SWITCH
55432B
2.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
53601
3.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
55606
4.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
55317E
5.INSTALL NO. 1 INSTRUMENT SIDE PANEL
62312B
6.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
62112A
7.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
67914B
8.INSTALL FRONT DOOR SCUFF PLATE LH
