LIGHTING (EXT)  HEADLIGHT DIMMER SWITCH  INSPECTION

1.354,0.073 1.771,0.323 0.417,0.25 1.583,1 1.167,0.333 true 1.417,1 0.917,0.333 true 2.021,1.01 2.271,0.333 true 1.24,1.865 1.438,1.417 true 1.917,1.896 1.833,1.417 true 2.417,1 3,0.333 true 2.479,1.885 2.229,1.417 true 2.792,1.885 2.417,1.417 true 2.188,1.906 2.031,1.417 true 1.833,1 2.031,0.354 true 1.521,1.885 1.604,1.438 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 1.094,0.135 1.25,0.333 0.156,0.198 10 false H 3.042,0.167 3.281,0.417 0.24,0.25 10 false HU 1.177,1.917 1.333,2.115 0.156,0.198 10 false T 2.771,1.927 3.083,2.125 0.313,0.198 10 false TR 0.76,0.167 1,0.417 0.24,0.25 10 false HF 1.854,1.917 2.167,2.115 0.313,0.198 10 false EL 2.24,0.146 2.552,0.344 0.313,0.198 10 false TL 2.479,1.927 2.792,2.125 0.313,0.198 10 false A 2.135,1.927 2.448,2.125 0.313,0.198 10 false CR 1.896,0.167 2.354,0.365 0.458,0.198 10 false BFG 1.438,0.115 1.896,0.313 0.458,0.198 10 false z17 1.49,1.906 1.75,2.104 0.26,0.198 10 false B

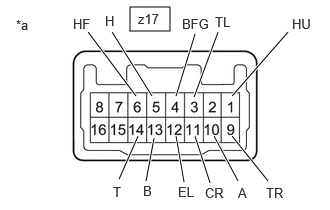

*a	Component without harness connected (Turn Signal Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Light Control Switch

Tester Connection	Condition	Specified Condition
z17-10 (A) - z17-12 (EL)	Light control switch AUTO position	Below 1 Ω
z17-14 (T) - z17-12 (EL)	Light control switch in tail position	Below 1 Ω
z17-5 (H) - z17-12 (EL)	Light control switch in head position	Below 1 Ω

Dimmer Passing Switch

Tester Connection	Condition	Specified Condition
z17-6 (HF) - z17-12 (EL)	Dimmer switch in flash position	Below 1 Ω
z17-1 (HU) - z17-12 (EL)	Dimmer switch in high position	Below 1 Ω

Fog Light Switch

Tester Connection	Condition	Specified Condition
*1: w/ Fog Light
z17-13 (B) - z17-12 (EL)	Fog light switch is rear position	Below 1 Ω
z17-4 (BFG) - z17-12 (EL)	Fog light switch is front position*1	Below 1 Ω

Turn Signal Switch

Tester Connection	Condition	Specified Condition
z17-9 (TR) - z17-12 (EL)	Turn signal switch in neutral position	10 kΩ or higher
z17-3 (TL) - z17-12 (EL)	Turn signal switch in neutral position	10 kΩ or higher
z17-9 (TR) - z17-12 (EL)	Turn signal switch in right turn position	Below 1 Ω
z17-9 (TR) - z17-12 (EL)	Turn signal switch in full right turn position	Below 1 Ω
z17-9 (TR) - z17-11 (CR)	Turn signal switch in full right turn position	Below 1 Ω
z17-11 (CR) - z17-12 (EL)	Turn signal switch in full right turn position	Below 1 Ω
z17-3 (TL) - z17-12 (EL)	Turn signal switch in left turn position	Below 1 Ω
z17-3 (TL) - z17-12 (EL)	Turn signal switch in full left turn position	Below 1 Ω
z17-3 (TL) - z17-11 (CR)	Turn signal switch in full left turn position	Below 1 Ω
z17-11 (CR) - z17-12 (EL)	Turn signal switch in full left turn position	Below 1 Ω

HINT:

·

The left turn or right turn condition indicates a condition in which the turn signal switch will return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated approximately 6.3°).

·

The full left turn or full right turn condition indicates a condition in which the turn signal switch will not return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated 10.5°).

If the result is not as specified, replace the turn signal switch.
