Vehicle Exterior
_112294
LIGHTING (EXT)
_0501108
LICENSE PLATE LIGHT ASSEMBLY
A
LIGHTING (EXT) LICENSE PLATE LIGHT ASSEMBLY INSTALLATION
CAUTION / NOTICE / HINT

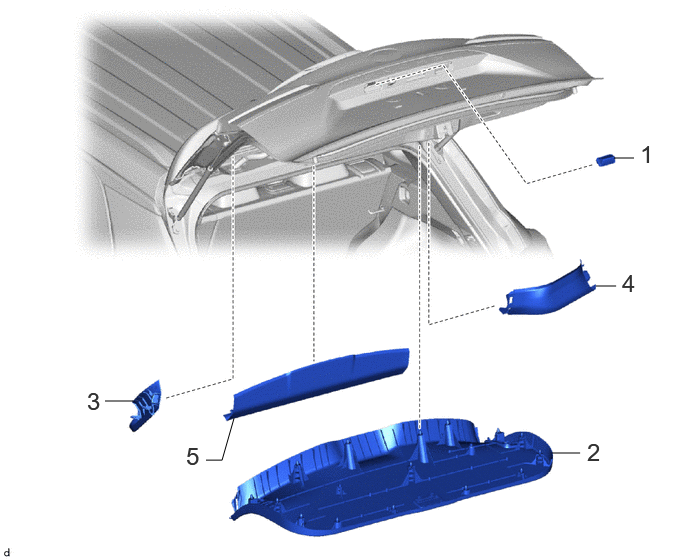

COMPONENTS (INSTALLATION)
6.396,1.646 6.604,1.646
false
6.208,2.979 6.417,2.979
false
2.438,4.354 2.313,4.792
2.313,4.792 2.146,4.792
false
1.094,4.177 1.385,4.177
false
5.75,4.719 6.042,4.719
false
1.938,4.604 2.219,4.958
0.281,0.354
18
false
5
0.906,4.031 1.188,4.385
0.281,0.354
18
false
3
6.115,4.563 6.396,4.917
0.281,0.354
18
false
2
6.479,2.802 6.76,3.156
0.281,0.354
18
false
4
6.667,1.458 6.948,1.813
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | LICENSE PLATE LIGHT ASSEMBLY | 81270 | - | - | - |
| 2 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 4 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81270
1.INSTALL LICENSE PLATE LIGHT ASSEMBLY
64780A
2.INSTALL BACK DOOR TRIM PANEL ASSEMBLY
67938A
3.INSTALL BACK DOOR SIDE GARNISH LH
67937B
4.INSTALL BACK DOOR SIDE GARNISH RH
64790B
5.INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
