RM38T0EC
_59
Vehicle Exterior
_112294
LIGHTING (EXT)
_0501105
REAR LIGHT ASSEMBLY
A
LIGHTING (EXT) REAR LIGHT ASSEMBLY INSTALLATION
CAUTION / NOTICE / HINT

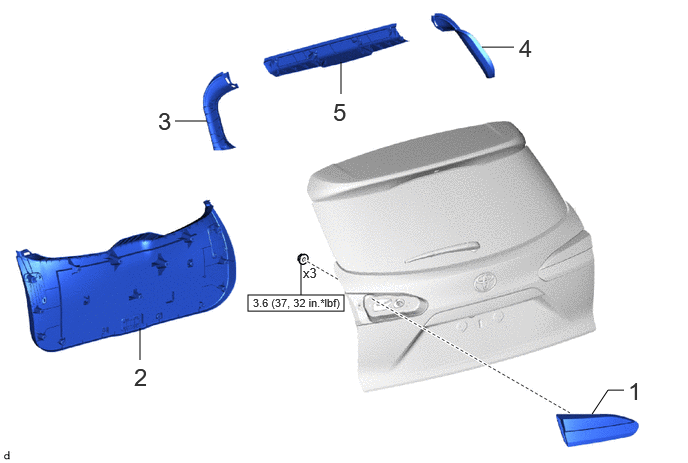

COMPONENTS (INSTALLATION)
2.583,3.073 3.583,3.24
1,0.167
3.135,2.74 3.135,3.073
false
6.5,4.063 6.333,4.063
6.333,4.063 6.167,4.313
false
3.552,0.646 3.552,0.979
false
1.458,3.417 1.458,3.75
false
5.021,0.49 5.354,0.49
false
1.823,1.26 2.156,1.26
false
3.156,2.76 3.385,2.958
0.229,0.198
10
false
x3
2.635,3.083 3.604,3.271
0.969,0.188
8
false
3.6 (37, 32 in.*lbf)
6.542,3.927 6.823,4.208
0.281,0.281
18
false
1
1.396,3.781 1.677,4.063
0.281,0.281
18
false
2
3.469,1.021 3.75,1.302
0.281,0.281
18
false
5
5.406,0.354 5.688,0.635
0.281,0.281
18
false
4
1.646,1.115 1.927,1.396
0.281,0.281
18
false
3
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR LIGHT ASSEMBLY | 81590A | - | - | - |
| 2 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 4 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 5 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81590A
1.INSTALL REAR LIGHT ASSEMBLY
- Torque:
- 3.6 N*m (37 kgf*cm, 32 in.*lbf)
64780A
2.INSTALL BACK DOOR TRIM PANEL ASSEMBLY
67938A
3.INSTALL BACK DOOR SIDE GARNISH LH
67937B
4.INSTALL BACK DOOR SIDE GARNISH RH
64790B
5.INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
