LIGHTING (EXT)  REAR LIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 81591B 1.INSPECT REAR LIGHT LENS AND BODY LH (for Halogen Headlight, TFTM Made)

a.

Check that the rear light lens and body LH.

i.
E475955C07
1.521,0.083 1.927,0.333 0.406,0.25 2.031,1.375 2.427,1.51 true 0.906,1.51 1.354,1.365 true 1.604,0.125 1.917,0.323 0.313,0.198 10 false U51 0.729,1.438 0.927,1.646 0.198,0.208 10 false E 2.5,1.458 2.698,1.667 0.198,0.208 10 false B 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body LH)


Apply auxiliary battery voltage to the rear light lens and body LH and check that the light comes on.

OK:
Tester Connection Specified Condition
U51-1 (B) - Auxiliary battery positive (+)
U51-3 (E) - Auxiliary battery negative (-) 		Rear fog light comes on


If the result is not as specified, replace the rear light lens and body LH.



Hide 81591B 2.INSPECT REAR LIGHT LENS AND BODY LH (for Halogen Headlight, GTMC Made)

a.

Check that the rear light lens and body LH.

i.

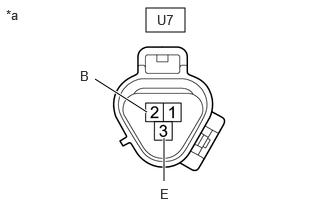

E472567C06
1.521,0.083 1.927,0.333 0.406,0.25 1.708,1.438 1.708,1.885 true 0.99,0.823 1.531,1.167 true 1.635,0.125 1.948,0.323 0.313,0.198 10 false U7 1.667,1.938 1.865,2.146 0.198,0.208 10 false E 0.833,0.708 1.031,0.917 0.198,0.208 10 false B 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body LH)


Apply auxiliary battery voltage to the rear light lens and body LH and check that the light comes on.

OK:
Tester Connection Specified Condition
U7-2 (B) - Auxiliary battery positive (+)
U7-3 (E) - Auxiliary battery negative (-) 		Rear fog light comes on


If the result is not as specified, replace the rear light lens and body LH.



Hide 81591B 3.INSPECT REAR LIGHT LENS AND BODY LH (for LED Headlight, TFTM Made)

a.

Check that the rear light lens and body LH.

i.
E475955C08
1.521,0.083 1.927,0.333 0.406,0.25 1.729,1.49 1.729,1.813 true 2.031,1.375 2.427,1.51 true 0.906,1.51 1.354,1.365 true 1.615,0.125 1.927,0.323 0.313,0.198 10 false U51 1.677,1.854 1.875,2.063 0.198,0.208 10 false B 0.729,1.438 0.927,1.646 0.198,0.208 10 false E 2.5,1.458 2.698,1.667 0.198,0.208 10 false B 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body LH)


Apply auxiliary battery voltage to the rear light lens and body LH and check that the light comes on.

OK:
Tester Connection Specified Condition
U51-2 (B) - Auxiliary battery positive (+)
U51-3 (E) - Auxiliary battery negative (-) 		Tail light comes on
U51-1 (B) - Auxiliary battery positive (+)
U51-3 (E) - Auxiliary battery negative (-) 		Rear fog light comes on


If the result is not as specified, replace the rear light lens and body LH.



Hide 81581H 4.INSPECT REAR LIGHT LENS AND BODY RH (for LED Headlight, TFTM Made)

a.

Check that the rear light lens and body RH.

i.
E475955C09
1.521,0.083 1.927,0.333 0.406,0.25 1.729,1.49 1.729,1.813 true 0.906,1.51 1.354,1.365 true 1.604,0.125 1.917,0.323 0.313,0.198 10 false U50 1.677,1.854 1.875,2.063 0.198,0.208 10 false B 0.729,1.438 0.927,1.646 0.198,0.208 10 false E 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body RH)


Apply auxiliary battery voltage to the rear light lens and body RH and check that the light comes on.

OK:
Tester Connection Specified Condition
U50-2 (B) - Auxiliary battery positive (+)
U50-3 (E) - Auxiliary battery negative (-) 		Tail light comes on


If the result is not as specified, replace the rear light lens and body RH.



Hide 81591B 5.INSPECT REAR LIGHT LENS AND BODY LH (for LED Headlight, GTMC Made)

a.

Check that the rear light lens and body LH.

i.

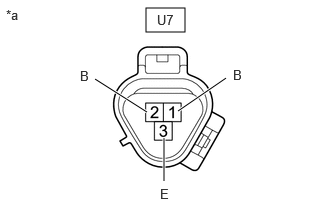

E472567C04
1.521,0.083 1.927,0.333 0.406,0.25 1.854,1.156 2.354,0.813 true 1.708,1.438 1.708,1.885 true 0.99,0.823 1.531,1.167 true 1.635,0.125 1.948,0.323 0.313,0.198 10 false U7 2.427,0.698 2.625,0.906 0.198,0.208 10 false B 1.667,1.938 1.865,2.146 0.198,0.208 10 false E 0.833,0.708 1.031,0.917 0.198,0.208 10 false B 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body LH)


Apply auxiliary battery voltage to the rear light lens and body LH and check that the light comes on.

OK:
Tester Connection Specified Condition
U7-1 (B) - Auxiliary battery positive (+)
U7-3 (E) - Auxiliary battery negative (-) 		Tail light comes on
U7-2 (B) - Auxiliary battery positive (+)
U7-3 (E) - Auxiliary battery negative (-) 		Rear fog light comes on


If the result is not as specified, replace the rear light lens and body LH.



Hide 81581H 6.INSPECT REAR LIGHT LENS AND BODY RH (for LED Headlight, GTMC Made)

a.

Check that the rear light lens and body RH.

i.

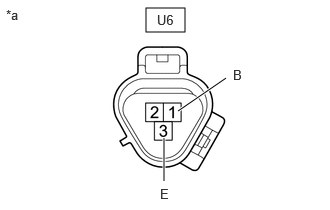

E472567C05
1.521,0.083 1.927,0.333 0.406,0.25 1.854,1.156 2.354,0.813 true 1.708,1.438 1.708,1.885 true 1.635,0.125 1.948,0.323 0.313,0.198 10 false U6 2.427,0.698 2.625,0.906 0.198,0.208 10 false B 1.667,1.938 1.865,2.146 0.198,0.208 10 false E 0.063,0.073 0.375,0.271 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Light Lens and Body RH)


Apply auxiliary battery voltage to the rear light lens and body RH and check that the light comes on.

OK:
Tester Connection Specified Condition
U6-1 (B) - Auxiliary battery positive (+)
U6-3 (E) - Auxiliary battery negative (-) 		Tail light comes on


If the result is not as specified, replace the rear light lens and body RH.
