RM38T0EC
_59
Vehicle Exterior
_112294
LIGHTING (EXT)
_0501105
REAR LIGHT ASSEMBLY
A
LIGHTING (EXT) REAR LIGHT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT

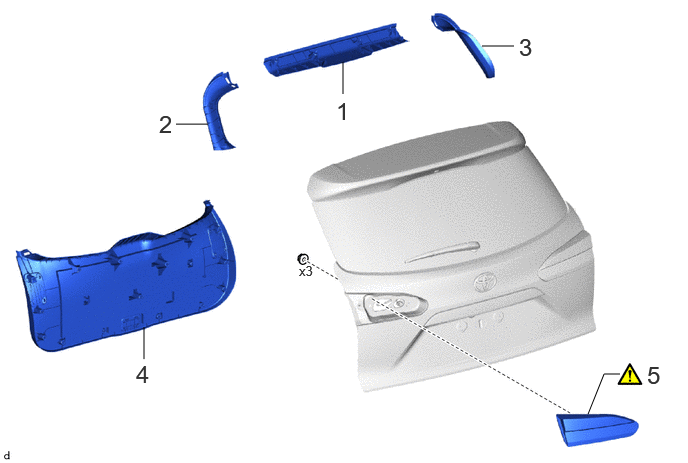

COMPONENTS (REMOVAL)
6.458,3.896 6.292,3.896
6.292,3.896 6.125,4.313
false
5.354,0.479 5.021,0.479
false
2.167,1.292 1.833,1.292
false
3.573,0.646 3.573,0.979
false
1.5,3.406 1.5,3.74
false
3.115,2.74 3.427,2.938
0.313,0.198
10
false
x3
1.417,3.75 1.698,4.104
0.281,0.354
18
false
4
3.5,1.01 3.781,1.365
0.281,0.354
18
false
1
1.656,1.146 1.938,1.5
0.281,0.354
18
false
2
5.406,0.344 5.688,0.698
0.281,0.354
18
false
3
6.74,3.76 7.021,4.115
0.281,0.354
18
false
5
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 5 | REAR LIGHT ASSEMBLY | 81590A | ( 202201,999999,_59,_112294,_0501105,RM100000001Z4XB_01_0072,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
64790B
1.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
67938A
2.REMOVE BACK DOOR SIDE GARNISH LH
67937B
3.REMOVE BACK DOOR SIDE GARNISH RH
a.
Use the same procedure as for the LH side.
64780A
4.REMOVE BACK DOOR TRIM PANEL ASSEMBLY
81590A
5.REMOVE REAR LIGHT ASSEMBLY
a.
0.427,0.052 0.708,0.406
0.281,0.354
18
false
i
3.854,0.031 4.135,0.385
0.281,0.354
18
false
ii
1.531,2.094 2.125,2.396
0.594,0.302
18
true
iii, iv

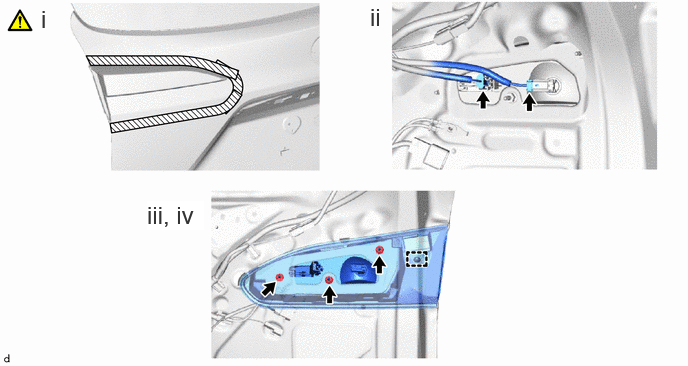

i.
Apply protective tape around the rear light assembly as shown in the illustration.
ii.
Disconnect the 2 connectors.
iii.
Remove the 3 nuts.
iv.
Disengage the pin to remove the rear light assembly.
