LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 1.INSPECT TAIL AND STOP LIGHT LED (for Halogen Headlight, LH Side)

a.

Check that the tail and stop light LED.

i.
E472556C05

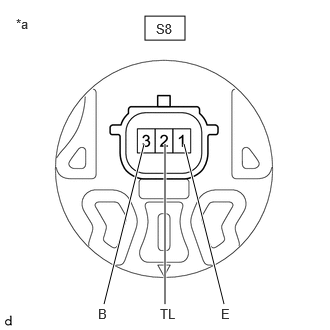

1.51,0.167 1.927,0.417 0.417,0.25 1.083,3.167 1.5,1.5 true 1.719,3.167 1.719,1.5 true 2.333,3.167 1.917,1.5 true 2.302,3.188 2.521,3.354 0.219,0.167 10 false E 1.021,3.188 1.385,3.417 0.365,0.229 10 false B 1.667,3.188 1.958,3.385 0.292,0.198 10 false TL 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.625,0.219 2.083,0.417 0.458,0.198 10 false S8
*a Component without harness connected
(Tail and Stop Light LED)


Apply auxiliary battery voltage to the tail and stop light LED and check that the lights comes on.

OK:
Tester Connection Specified Condition
S8-3 (B) - Auxiliary battery positive (+)
S8-1 (E) - Auxiliary battery negative (-) 		Stop light LED comes on
S8-2 (TL) - Auxiliary battery positive (+)
S8-1 (E) - Auxiliary battery negative (-) 		Tail light LED comes on


If the result is not as specified, replace the tail and stop light LED.



Hide 2.INSPECT TAIL AND STOP LIGHT LED (for Halogen Headlight, RH Side)

a.

Check that the tail and stop light LED.

i.
E472556C06

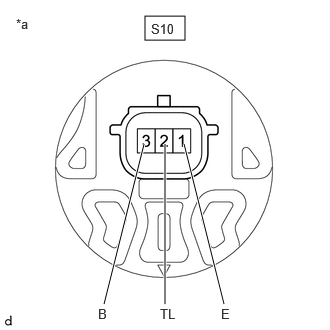

1.51,0.167 1.927,0.417 0.417,0.25 1.083,3.167 1.5,1.5 true 1.719,3.167 1.719,1.5 true 2.333,3.167 1.917,1.5 true 2.302,3.188 2.521,3.354 0.219,0.167 10 false E 1.021,3.188 1.385,3.417 0.365,0.229 10 false B 1.667,3.188 1.958,3.385 0.292,0.198 10 false TL 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.573,0.219 2.031,0.417 0.458,0.198 10 false S10
*a Component without harness connected
(Tail and Stop Light LED)


Apply auxiliary battery voltage to the tail and stop light LED and check that the lights comes on.

OK:
Tester Connection Specified Condition
S10-3 (B) - Auxiliary battery positive (+)
S10-1 (E) - Auxiliary battery negative (-) 		Stop light LED comes on
S10-2 (TL) - Auxiliary battery positive (+)
S10-1 (E) - Auxiliary battery negative (-) 		Tail light LED comes on


If the result is not as specified, replace the tail and stop light LED.



Hide 3.INSPECT STOP LIGHT LED (for LED Headlight, LH Side)

a.

Check that the stop light LED.

i.
E472556C07

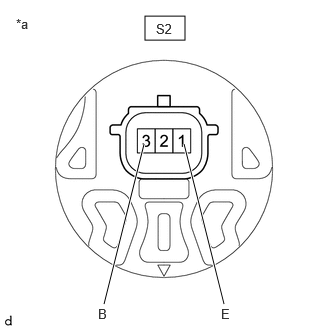

1.51,0.167 1.927,0.417 0.417,0.25 1.083,3.167 1.5,1.5 true 2.333,3.167 1.917,1.5 true 2.302,3.188 2.521,3.354 0.219,0.167 10 false E 1.021,3.188 1.385,3.417 0.365,0.229 10 false B 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.625,0.219 2.083,0.417 0.458,0.198 10 false S2
*a Component without harness connected
(Stop Light LED)


Apply auxiliary battery voltage to the stop light LED and check that the light comes on.

OK:
Tester Connection Specified Condition
S2-3 (B) - Auxiliary battery positive (+)
S2-1 (E) - Auxiliary battery negative (-) 		Stop light LED comes on


If the result is not as specified, replace the stop light LED.



Hide 4.INSPECT STOP LIGHT LED (for LED Headlight, RH Side)

a.

Check that the stop light LED.

i.
E472556C09
1.51,0.167 1.927,0.417 0.417,0.25 1.083,3.167 1.5,1.5 true 2.333,3.167 1.917,1.5 true 2.302,3.188 2.521,3.354 0.219,0.167 10 false E 1.021,3.188 1.385,3.417 0.365,0.229 10 false B 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.625,0.219 2.083,0.417 0.458,0.198 10 false S5
*a Component without harness connected
(Stop Light LED)


Apply auxiliary battery voltage to the stop light LED and check that the light comes on.

OK:
Tester Connection Specified Condition
S5-3 (B) - Auxiliary battery positive (+)
S5-1 (E) - Auxiliary battery negative (-) 		Stop light LED comes on


If the result is not as specified, replace the stop light LED.



Hide 81561D 5.INSPECT REAR COMBINATION LIGHT LENS AND BODY LH (for LED Headlight)

a.

Check that the rear combination light lens and body LH.

i.
E472557C07
1.5,0.156 1.917,0.406 0.417,0.25 1.135,1.344 1.552,0.927 true 2.365,1.375 1.885,0.938 true 1.594,0.198 1.906,0.396 0.313,0.198 10 false S16 0.938,1.292 1.25,1.49 0.313,0.198 10 false TL 2.396,1.313 2.708,1.51 0.313,0.198 10 false E 0.135,0.146 0.448,0.344 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Combination Light Lens and Body LH)


Apply auxiliary battery voltage to the rear combination light lens and body LH and check that the light comes on.

OK:
Tester Connection Specified Condition
S16-2 (TL) - Auxiliary battery positive (+)
S16-1 (E) - Auxiliary battery negative (-) 		Tail light comes on


If the result is not as specified, replace the rear combination light lens and body LH.



Hide 81551D 6.INSPECT REAR COMBINATION LIGHT LENS AND BODY RH (for LED Headlight)

a.

Check that the rear combination light lens and body RH.

i.
E472557C08
1.5,0.156 1.917,0.406 0.417,0.25 1.135,1.344 1.552,0.927 true 2.365,1.375 1.885,0.938 true 1.604,0.198 1.917,0.396 0.313,0.198 10 false S17 0.938,1.292 1.25,1.49 0.313,0.198 10 false TL 2.396,1.313 2.708,1.51 0.313,0.198 10 false E 0.135,0.146 0.448,0.344 0.313,0.198 10 false *a
*a Component without harness connected
(Rear Combination Light Lens and Body RH)


Apply auxiliary battery voltage to the rear combination light lens and body RH and check that the light comes on.

OK:
Tester Connection Specified Condition
S17-2 (TL) - Auxiliary battery positive (+)
S17-1 (E) - Auxiliary battery negative (-) 		Tail light comes on


If the result is not as specified, replace the rear combination light lens and body RH.
