Vehicle Exterior
_112294
LIGHTING (EXT)
_0501104
REAR COMBINATION LIGHT ASSEMBLY
A
LIGHTING (EXT) REAR COMBINATION LIGHT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT

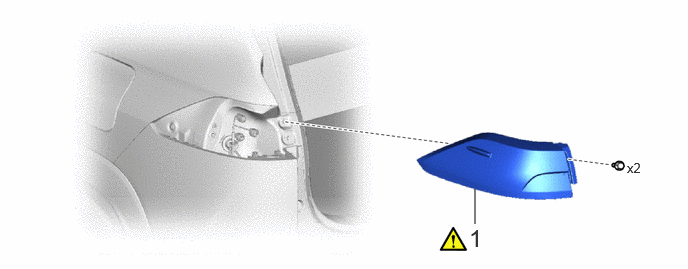

COMPONENTS (REMOVAL)
4.948,2.333 4.948,1.969
false
4.885,2.333 5.198,2.625
0.313,0.292
18
false
1
6.531,1.667 6.844,1.958
0.313,0.292
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | REAR COMBINATION LIGHT ASSEMBLY | 81560 | ( 202201,999999,_59,_112294,_0501104,RM100000001Z4X6_04_0018,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81560
1.REMOVE REAR COMBINATION LIGHT ASSEMBLY
a.
0.167,1.958 7,3.792
6.833,1.833
4.854,1.167 5.135,0.969
true
5.313,1.333 5.427,0.979
true
3.5,3.792 3.5,1.958
false
0.25,2.01 0.552,2.24
0.302,0.229
12
true
*A
3.583,2.031 3.896,2.26
0.313,0.229
12
false
*B
5.208,1.323 5.396,1.5
0.188,0.177
10
true
*a
4.677,1.135 4.875,1.313
0.198,0.177
10
true
*b
0.385,0.104 0.521,0.385
0.135,0.281
18
true
i
2.552,0.792 2.729,1.083
0.177,0.292
18
true
ii
3.938,0.083 4.146,0.365
0.208,0.281
18
true
iii
0.542,1.969 0.75,2.25
0.208,0.281
18
true
iv
3.875,1.969 4.083,2.25
0.208,0.281
18
true
v
| *A | for Halogen Headlight | *B | for LED Headlight |
| *a | Pin | *b | Guide |
|
Remove in this Direction | - | - |

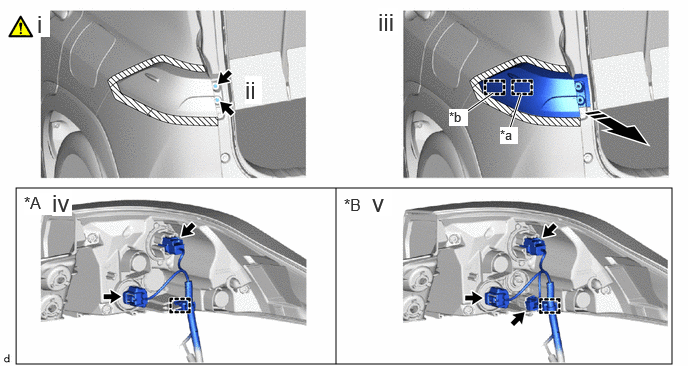

i.
Apply protective tape around the rear combination light assembly as shown in the illustration.
ii.
Remove the 2 screws.
iii.
Disengage the pin and guide to remove the rear combination light assembly as shown in the illustration.
iv.
for Halogen Headlight:
1. Disengage the clamp.
2. Disconnect the 2 connectors.
v.
for LED Headlight:
1. Disengage the clamp.
2. Disconnect the 3 connectors.
