LIGHTING (EXT)
_0501103
SIDE TURN SIGNAL LIGHT ASSEMBLY
A
LIGHTING (EXT) SIDE TURN SIGNAL LIGHT ASSEMBLY INSTALLATION
CAUTION / NOTICE / HINT

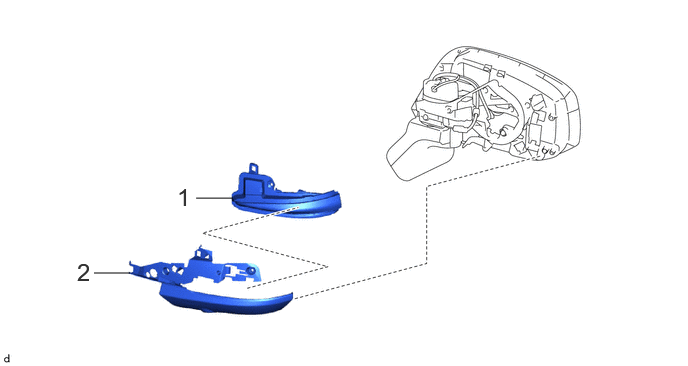

COMPONENTS (INSTALLATION)
2.417,2.063 2.042,2.063
false
1.354,2.844 0.979,2.844
false
1.844,1.906 2.125,2.26
0.281,0.354
18
false
1
0.802,2.688 1.083,3.042
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | SIDE TURN SIGNAL LIGHT ASSEMBLY | 81740 | - | - | - |
| 2 | OUTER MIRROR LOWER COVER | - | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81740
1.INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
2.INSTALL OUTER MIRROR LOWER COVER
