LIGHTING (EXT)  FOG LIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 81220 1.INSPECT FOG LIGHT ASSEMBLY LH

a.

Check that the fog light assembly LH.

i.

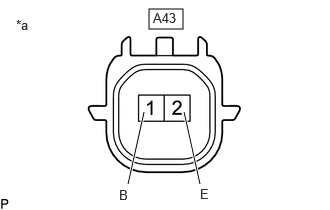

E399393C19
1.552,0.094 1.906,0.302 0.354,0.208 2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 2.083,1.938 2.24,2.135 0.156,0.198 10 false E 1.24,1.948 1.396,2.146 0.156,0.198 10 false B 1.594,0.104 2.052,0.302 0.458,0.198 10 false A43
*a Component without harness connected
(Fog Light Assembly LH)


Apply auxiliary battery voltage to the fog light assembly LH and check that the light illuminates.

OK:
Tester Connection Specified Condition
A43-1 (B) - Auxiliary battery positive (+)
A43-2 (E) - Auxiliary battery negative (-) 		Fog light assembly LH comes on


If the result is not as specified, replace the fog light assembly LH.



Hide 81210A 2.INSPECT FOG LIGHT ASSEMBLY RH

a.

Check that the fog light assembly RH.

i.
E399393C20
1.552,0.094 1.906,0.302 0.354,0.208 2.083,1.917 1.917,1.167 true 1.333,1.917 1.5,1.167 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 2.083,1.938 2.24,2.135 0.156,0.198 10 false E 1.24,1.948 1.396,2.146 0.156,0.198 10 false B 1.594,0.104 2.052,0.302 0.458,0.198 10 false A42
*a Component without harness connected
(Fog Light Assembly RH)


Apply auxiliary battery voltage to the fog light assembly RH and check that the light illuminates.

OK:
Tester Connection Specified Condition
A42-1 (B) - Auxiliary battery positive (+)
A42-2 (E) - Auxiliary battery negative (-) 		Fog light assembly RH comes on


If the result is not as specified, replace the fog light assembly RH.
