LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for LED Headlight)  ADJUSTMENT


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PREPARE VEHICLE FOR HEADLIGHT AIM ADJUSTMENT

a.

Prepare the vehicle:

·

Ensure that the vehicle body is not damaged or deformed around the headlights.

·

Fill the fuel tank.

·

Make sure that the engine oil is filled to the specified level.

·

Make sure that the engine coolant is filled to the specified level.

·

Inflate the tires to the appropriate pressure.

·

Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are in their original positions.

·

Bounce the vehicle at the corners up and down to stabilize the suspension.

·

Sit a person of average weight (75 kg, 165 lb) in the driver's seat.



Hide 2. PREPARE FOR HEADLIGHT AIMING

a.

Adjust the headlight aim in accordance with the headlight aim test machine instructions.


Hide 3. PREPARE FOR HEADLIGHT AIMING

a.
E445542E04
0.677,1.271 1.135,1.469 0.458,0.198 10 false 90° 0.635,1.865 1.635,2.115 1,0.25 10 false 10 m or 3 m

E445543C01
2.219,1.521 1.979,1.26 true 2.229,1.458 2.417,1.635 0.188,0.177 10 true *a
*a Center Mark

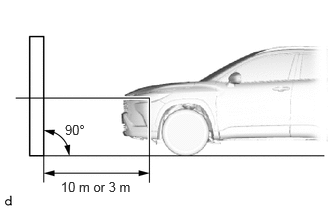

Prepare the vehicle:

·

Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlights can be observed and above which it cannot.

·

Place the vehicle at a 90° angle to a wall.

·

Create a 10 m (32.8 ft.) distance between the vehicle (center marks of the headlights) and the wall.

·

Make sure that the vehicle is on a level surface.

·

Position the front wheels straight ahead.

·

Bounce the vehicle up and down to settle the suspension.


NOTICE:

A distance of 10 m (32.8 ft.) between the vehicle (center marks of the headlights) and the wall is necessary for proper aim adjustment. If sufficient space is not available, secure a distance of exactly 3 m (9.84 ft.) to allow for checking and adjustment of the headlight aim. (The size of the target zone will change with the distance, so follow the instructions in the illustration.)



b.

Prepare a piece of thick white paper (approximately 2 m (6.56 ft.) (height) x 4 m (13.1 ft.) (width)) to use as a screen.


c.

Draw a vertical line down the center of the screen (V line).


d.

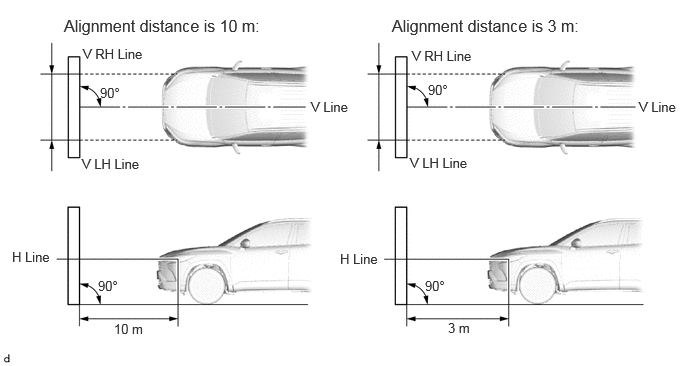

Set the screen as shown in the illustration:

E445544E03
0.667,0.167 2.917,0.417 2.25,0.25 12 false Alignment distance is 10 m: 4.083,0.167 6.333,0.417 2.25,0.25 12 false Alignment distance is 3 m: 0.865,0.479 2.24,0.677 1.375,0.198 10 false V RH Line 4.292,0.5 5.667,0.698 1.375,0.198 10 false V RH Line 0.854,1.625 2.229,1.823 1.375,0.198 10 false V LH Line 4.271,1.615 5.646,1.813 1.375,0.198 10 false V LH Line 1.042,0.885 1.5,1.083 0.458,0.198 10 false 90° 4.458,0.854 4.917,1.052 0.458,0.198 10 false 90° 3.24,1.031 3.74,1.198 0.5,0.167 10 false V Line 6.656,1.031 7.115,1.302 0.458,0.271 10 false V Line 0.125,2.594 0.625,2.76 0.5,0.167 10 false H Line 3.542,2.615 4.042,2.781 0.5,0.167 10 false H Line 1.021,2.896 1.479,3.094 0.458,0.198 10 false 90° 4.427,2.896 4.885,3.094 0.458,0.198 10 false 90° 1.188,3.344 2.104,3.542 0.917,0.198 10 false 10 m 4.667,3.333 5.583,3.531 0.917,0.198 10 false 3 m

HINT:
·

Stand the screen perpendicular to the ground.

·

Align the V line on the screen with the center of the vehicle.




e.
E257183C05
1.177,0.292 1.49,0.448 0.313,0.156 10 *a 1.844,0.302 2.156,0.458 0.313,0.156 10 *b 2.479,0.313 2.792,0.469 0.313,0.156 10 *c 2.969,0.875 3.281,1.031 0.313,0.156 10 *d 0.563,1.708 0.875,1.865 0.313,0.156 10 *e
*a V LH Line
*b V Line
*c V RH Line
*d H Line
*e Ground


Draw base lines (H, V LH, and V RH lines) on the screen as shown in the illustration.

HINT:
E445543C01
2.219,1.521 1.979,1.26 true 2.229,1.458 2.417,1.635 0.188,0.177 10 true *a
*a Center Mark


·

The base lines differ for "low beam inspection" and "high beam inspection".

·

Mark the headlight center marks on the screen.



i.

H Line (Headlight height):

Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the center marks of the headlights.


ii.

V LH Line, V RH Line (Center mark position of left-hand (LH) and right-hand (RH) headlights):

Draw 2 vertical lines so that they intersect the H line at each center mark (aligned with the center marks of the headlights).



Hide 4.INSPECT HEADLIGHT AIMING

a.

Cover the headlight on the opposite side to prevent light from the headlight that is not being inspected from affecting the headlight aiming inspection.

NOTICE:

Do not keep the headlight covered for more than 3 minutes. The headlight lens is made of synthetic resin, which may melt or be damaged due to excessive heat.



b.

Start the engine.


c.

Turn on the headlights and check if the cutoff line for each low beam matches the preferred cutoff line in the illustration.

E234067E44
1.167,2.25 1.333,2.25 1.333,2.25 1.49,1.875 false 4.667,2.25 4.833,2.25 4.833,2.25 5,1.875 false 1.99,1.844 2.323,0.75 2.323,0.75 2.604,0.75 true 5.469,1.844 5.802,0.75 5.802,0.75 6.083,0.75 true 0.917,0.167 3.271,0.688 2.354,0.521 12 false Alignment distance is 10 m: 4.333,0.167 6.615,0.583 2.281,0.417 12 false Alignment distance is 3 m: 0.167,1.5 2,1.75 1.833,0.25 10 false H Line 3.875,1.771 5.708,2.021 1.833,0.25 10 false 30 mm 2.073,2.25 2.667,2.5 0.594,0.25 10 false 99 mm 1.531,2.25 2.063,2.5 0.531,0.25 10 false 99 mm 0.323,1.76 2.156,2.01 1.833,0.25 10 false 99 mm 3.125,1.75 3.677,2 0.552,0.25 10 false 180 mm 6.625,1.719 7.125,1.906 0.5,0.188 10 false 54 mm 5.083,2.24 5.531,2.5 0.448,0.26 10 false 30 mm 5.542,2.24 6.188,2.49 0.646,0.25 10 false 30 mm 1.375,1.281 1.938,1.458 0.563,0.177 10 false 63 mm 4.844,1.281 5.365,1.531 0.521,0.25 10 false 19 mm 0.521,2.167 1.188,2.667 0.667,0.5 10 false Preferred Cutoff Line 4.021,2.167 4.688,2.667 0.667,0.5 10 false Preferred Cutoff Line 3.667,1.5 5.5,1.75 1.833,0.25 10 false H Line 1.302,0.667 3.135,0.917 1.833,0.25 10 false V LH Line 4.802,0.667 6.635,0.917 1.833,0.25 10 false V LH Line 1.302,0.917 3.135,1.167 1.833,0.25 10 false V RH Line 4.802,1 6.635,1.25 1.833,0.25 10 false V RH Line 2.667,0.667 4.5,0.917 1.833,0.25 10 false Point A 6.156,0.667 6.75,1 0.594,0.333 10 false Point A

HINT:
·

Since the low beam headlight and the high beam headlight are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams to make sure.

·

If the alignment distance is 10 m (32.8 ft.):

The low beam cutoff line should be between 63 mm (2.48 in.) and 180 mm (7.09 in.) below the H line as well as 99 mm (3.90 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The low beam cutoff line should be between 19 mm (0.748 in.) and 54 mm (2.13 in.) below the H line as well as 30 mm (1.18 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 10 m (32.8 ft.):

The horizontal line of the preferred low beam cutoff line is 99 mm (3.90 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The horizontal line of the preferred low beam cutoff line is 30 mm (1.18 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.




d.

Turn on the high beams and check if the center of intensity for each high beam matches the preferred center of the intensity in the illustration.

E235330E58
1.99,1.594 2.26,0.583 2.26,0.583 2.406,0.583 true 5.479,1.604 5.76,0.594 5.76,0.594 5.896,0.594 true 1.167,0.083 3.229,0.448 2.063,0.365 12 false Alignment distance is 10 m: 4.667,0.083 6.729,0.448 2.063,0.365 12 false Alignment distance is 3 m: 1.302,0.531 1.958,0.844 0.656,0.313 10 false V LH Line 0.51,1.51 0.938,1.813 0.427,0.302 10 false H Line 5.667,2.188 6.125,2.5 0.458,0.313 10 false 30 mm 4.875,2.198 5.333,2.427 0.458,0.229 10 false 30 mm 2.167,2.198 2.75,2.448 0.583,0.25 10 false 99 mm 1.365,2.198 1.948,2.448 0.583,0.25 10 false 99 mm 4,1.51 4.427,1.813 0.427,0.302 10 false H Line 6.604,1.771 7.083,2.083 0.479,0.313 10 false 30 mm 6.615,1.385 7.094,1.698 0.479,0.313 10 false 21 mm 3.135,1.75 3.719,1.917 0.583,0.167 10 false 99 mm 3.146,1.406 3.729,1.563 0.583,0.156 10 false 70 mm 2.479,0.51 3.688,0.917 1.208,0.406 10 false Center of Intensity 5.948,0.521 7.125,1.115 1.177,0.594 10 false Center of Intensity 1.302,0.823 1.958,1.188 0.656,0.365 10 false V RH Line 4.802,0.521 5.458,0.833 0.656,0.313 10 false V LH Line 4.802,0.813 5.458,1.177 0.656,0.365 10 false V RH Line

HINT:
·

Since the low beam headlight and the high beam headlight are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams to make sure.

·

If the alignment distance is 10 m (32.8 ft.):

The high beam center of intensity should be within 70 mm (2.76 in.) above and 99 mm (3.90 in.) below the H line as well as 99 mm (3.90 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The high beam center of intensity should be within 21 mm (0.827 in.) above and 30 mm (1.18 in.) below the H line as well as 30 mm (1.18 in.) left or right of the V LH or V RH line.




Hide 5.ADJUST HEADLIGHT AIMING

a.

Adjust the aim vertically:

i.

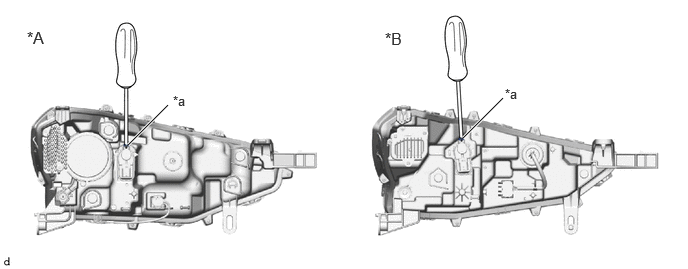

Adjust the aim of each headlight to the specified range by turning each aiming screw (A) with a screwdriver.

E475940C01
1.333,1.51 1.75,1.094 true 4.823,1.438 5.24,1.021 true 0.281,0.292 0.656,0.531 0.375,0.24 12 false *A 4.01,0.302 4.385,0.542 0.375,0.24 12 false *B 1.802,0.969 2.115,1.167 0.313,0.198 10 false *a 5.26,0.896 5.573,1.094 0.313,0.198 10 false *a
*A for TFTM Made *B for GTMC Made
*a Aiming Screw (A) - -


NOTICE:

The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.


HINT:
·

Since the low beam headlight and the high beam headlight are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams to make sure.

·

If it is not possible to correctly adjust headlight aim, check the headlight unit and headlight unit lens installation.

·

Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.





b.

Adjust the aim horizontally:

i.

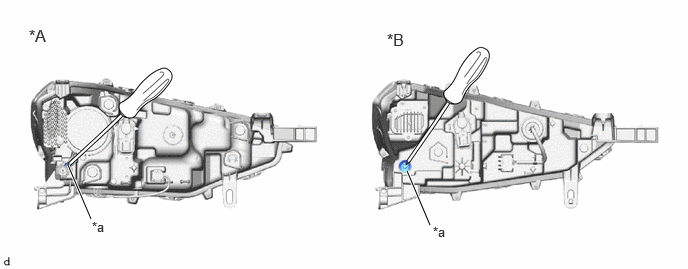

Adjust the aim of each headlight to the specified range by turning each aiming screw (B) with a screwdriver.

E475941C01
0.708,1.719 0.948,2.281 true 4.24,1.781 4.479,2.344 true 0.302,0.271 0.677,0.51 0.375,0.24 12 false *A 4.031,0.313 4.406,0.552 0.375,0.24 12 false *B 0.958,2.281 1.271,2.479 0.313,0.198 10 false *a 4.51,2.333 4.823,2.531 0.313,0.198 10 false *a
*A for TFTM Made *B for GTMC Made
*a Aiming Screw (B) - -


NOTICE:

The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.


HINT:
·

Since the low beam headlight and the high beam headlight are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams to make sure.

·

If it is not possible to correctly adjust headlight aim, check the headlight unit and headlight unit lens installation.

·

Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.
