HEADLIGHT ASSEMBLY(for Halogen Headlight)
A
LIGHTING (EXT) HEADLIGHT ASSEMBLY(for Halogen Headlight) REASSEMBLY
CAUTION / NOTICE / HINT

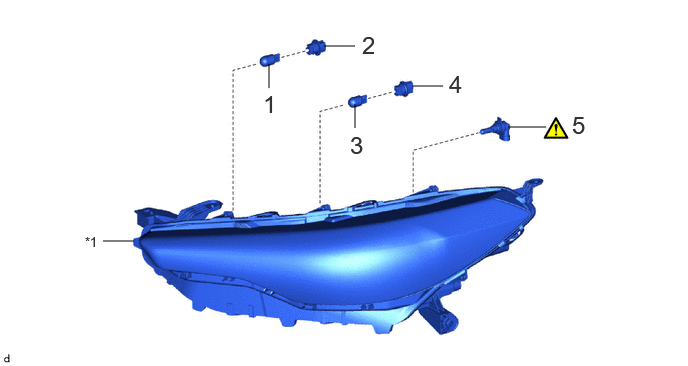

COMPONENTS (REASSEMBLY)
1.073,2.51 1.396,2.51
false
5.292,1.323 5.688,1.323
false
4.292,0.896 4.615,0.896
false
3.375,0.479 3.698,0.479
false
3.698,1.083 3.698,1.333
false
2.802,0.667 2.802,0.917
false
0.885,2.438 1.198,2.635
0.313,0.198
10
false
*1
2.74,0.938 3.073,1.24
0.333,0.302
18
false
1
3.771,0.323 4.104,0.625
0.333,0.302
18
false
2
3.646,1.365 3.979,1.667
0.333,0.302
18
false
3
4.677,0.729 5.01,1.031
0.333,0.302
18
false
4
5.958,1.156 6.292,1.458
0.333,0.302
18
false
5
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT TURN SIGNAL LIGHT BULB | 81510D | - | - | - |
| 2 | FRONT TURN SIGNAL LIGHT SOCKET | 81515B | - | - | - |
| 3 | DAYTIME RUNNING LIGHT BULB | 81510J | - | - | - |
| 4 | DAYTIME RUNNING LIGHT SOCKET | - | - | - | - |
| 5 | NO. 1 HEADLIGHT BULB | 81110B | ( 202201,999999,_59,_112294,_0501097,RM100000001Z4WL_05_0068,)
|
- | - |
| *1 | HEADLIGHT UNIT ASSEMBLY | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81510D
1.INSTALL FRONT TURN SIGNAL LIGHT BULB
81515B
2.INSTALL FRONT TURN SIGNAL LIGHT SOCKET
81510J
3.INSTALL DAYTIME RUNNING LIGHT BULB
4.INSTALL DAYTIME RUNNING LIGHT SOCKET
81110B
5.INSTALL NO. 1 HEADLIGHT BULB
|
|
|
