MIRROR (EXT)
_0501091
OUTER REAR VIEW MIRROR COVER
A
MIRROR (EXT) OUTER REAR VIEW MIRROR COVER REMOVAL
CAUTION / NOTICE / HINT

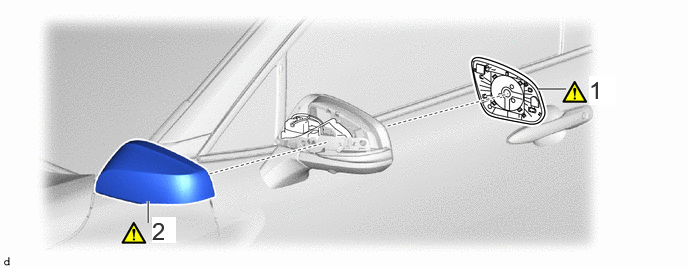

COMPONENTS (REMOVAL)
5.604,0.927 5.896,0.927
true
1.542,2.094 1.542,2.323
true
1.583,2.26 1.833,2.531
0.25,0.271
18
true
2
6.135,0.792 6.417,1.094
0.281,0.302
18
true
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | OUTER MIRROR | 87961 | ( 202201,999999,_59,_112292,_0501091,RM100000001Z4W1_01_0020,)
|
- | - |
| 2 | OUTER MIRROR COVER | 87945 | (202201,999999,_59,_112292,_0501091,RM100000001Z4W1_01_0010,)
|
- | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
87961
1.REMOVE OUTER MIRROR
87945
2.REMOVE OUTER MIRROR COVER
a.
0.385,0.042 0.667,0.396
0.281,0.354
18
false
i
4.083,0.063 4.271,0.344
0.188,0.281
18
true
ii
|
Place Hands Here |
|
Remove in this Direction |

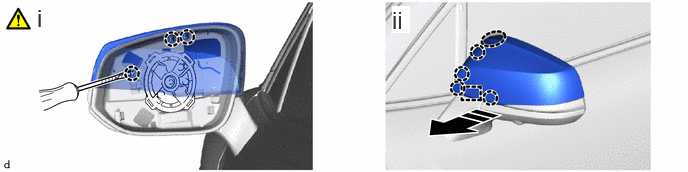

i.
Using a screwdriver with its tip wrapped in protective tape, disengage the claws.
ii.
Disengage the claws to remove the outer mirror cover as shown in the illustration.
