MIRROR (EXT)
_0501090
OUTER REAR VIEW MIRROR GLASS
G
MIRROR (EXT) OUTER REAR VIEW MIRROR GLASS INSPECTION
PROCEDURE
87961
1.INSPECT OUTER MIRROR LH
a.
Check the operation of the mirror heater.
i.
0.552,0.875 1.802,1.125
true
0.552,1.771 1.813,1.594
true
0.219,0.146 0.531,0.344
0.313,0.198
10
false
*a
0.365,0.781 0.521,0.979
0.156,0.198
10
false
1
0.375,1.698 0.531,1.896
0.156,0.198
10
false
2

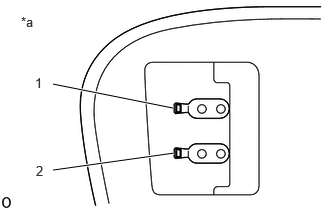

| *a | Component without harness connected
(Outer Mirror LH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 25°C 7.5 to 9.1 Ω
If the result is not as specified, replace the outer mirror LH.
87931
2.INSPECT OUTER MIRROR RH
a.
Check the operation of the mirror heater.
i.
1.667,1.115 2.875,0.885
true
1.667,1.583 2.885,1.75
true
2.698,0.198 3.01,0.396
0.313,0.198
10
false
*a
2.969,0.771 3.281,0.969
0.313,0.198
10
false
1
2.969,1.677 3.281,1.875
0.313,0.198
10
false
2
| *a | Component without harness connected
(Outer Mirror RH) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - 2 25°C 7.5 to 9.1 Ω
If the result is not as specified, replace the outer mirror RH.
