RM38T0EC _59 Vehicle Exterior _112292 MIRROR (EXT) _0501090 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT) OUTER REAR VIEW MIRROR GLASS REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

5.625,0.958 5.885,0.958 true 6.135,0.802 6.313,1.104 0.177,0.302 18 true 1

Procedure		Part Name Code
1	OUTER MIRROR	87961	(202201,999999,_59,_112292,_0501090,RM100000001Z4VY_01_0006,)	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

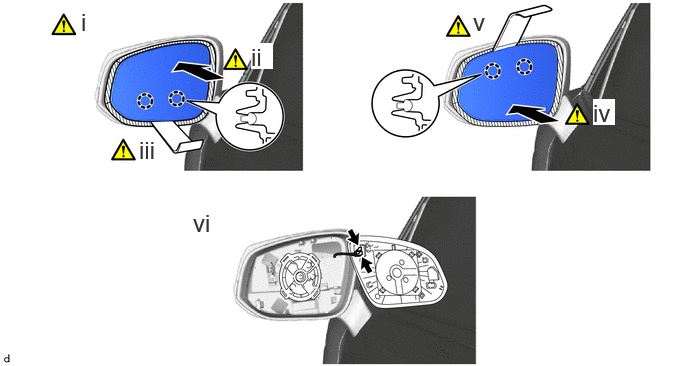

Hide Display 87961 1.REMOVE OUTER MIRROR

0.844,0.083 1.125,0.438 0.281,0.354 18 false i 2.615,0.448 2.844,0.719 0.229,0.271 18 true ii 1.448,1.417 1.688,1.656 0.24,0.24 18 false iii 6.177,1.031 6.406,1.302 0.229,0.271 18 true iv 4.927,0.083 5.115,0.344 0.188,0.26 18 false v 2.01,2.177 2.563,2.531 0.552,0.354 18 false vi

Push

Apply protective tape to the area as shown in the illustration.

ii.

Push the upper part of the mirror surface and tilt it.

NOTICE:: Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

iii.

Using a moulding remover D, disengage the claws on the lower part of the outer mirror.

iv.

Push the lower part of the mirror surface and tilt it.

NOTICE:: Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

Using a moulding remover D, disengage the claws on the upper part of the outer mirror to remove the outer mirror.

vi.

Disconnect the 2 connectors.
