RM38T0EC _58 Vehicle Interior _112291 INTERIOR PANELS / TRIM _0501086 FRONT CONSOLE BOX A

INTERIOR PANELS / TRIM FRONT CONSOLE BOX DISASSEMBLY

CAUTION / NOTICE / HINT

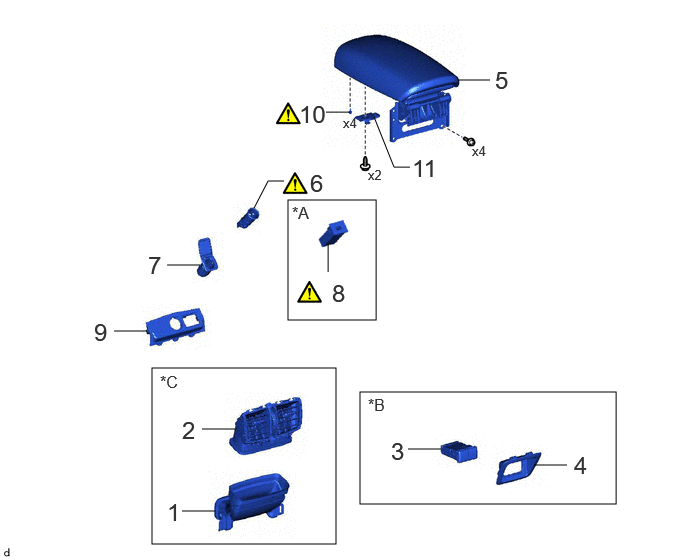

COMPONENTS (DISASSEMBLY)

3.75,4.083 6.417,5.25 2.667,1.167 3,2.083 3.917,3.333 0.917,1.25 1.583,3.833 3.5,5.667 1.917,1.833 4.25,4.677 4.594,4.677 false 5.563,4.844 5.906,4.844 false 2.104,4.469 2.448,4.469 false 1.896,5.323 2.24,5.323 false 1.188,3.448 1.531,3.448 false 1.74,2.76 2.083,2.76 false 2.646,2.167 2.792,1.885 2.792,1.885 2.958,1.885 false 3.417,2.542 3.417,2.833 false 3.396,1.167 3.646,1.167 false 3.896,1.219 4.104,1.74 4.104,1.74 4.271,1.74 false 4.771,0.833 5.104,0.833 false 1.74,5.188 2.021,5.542 0.281,0.354 18 false 1 1.896,4.333 2.177,4.688 0.281,0.354 18 false 2 0.979,3.313 1.438,3.667 0.458,0.354 18 false 9 4.073,4.552 4.302,4.896 0.229,0.344 18 false 3 5.979,4.698 6.208,5.042 0.229,0.344 18 false 4 3.458,2.906 3.74,3.26 0.281,0.354 18 false 8 3.229,1.76 3.51,2.115 0.281,0.354 18 false 6 1.542,2.615 1.823,2.969 0.281,0.354 18 false 7 3.115,1.042 3.542,1.438 0.427,0.396 18 false 10 5.156,0.688 5.594,1.042 0.438,0.354 18 false 5 4.292,1.604 4.719,2 0.427,0.396 18 false 11 3.833,1.74 4.115,2.01 0.281,0.271 10 false x2 4.917,1.49 5.167,1.698 0.25,0.208 10 false x4 3.573,1.198 3.823,1.406 0.25,0.208 10 false x4 3.833,4.115 4.208,4.354 0.375,0.24 12 false *B 3.042,2.115 3.417,2.354 0.375,0.24 12 false *A 1.667,3.875 2.042,4.115 0.375,0.24 12 false *C

Procedure		Part Name Code
1	NO. 3 CONSOLE BOX DUCT	58863C	-	-	-
2	CONSOLE BOX REGISTER ASSEMBLY	58860A	-	-	-
3	NO. 2 USB CHARGER SOCKET	85532C	-	-	-
4	NO. 2 CONSOLE REAR END PANEL	58924A	-	-	-
5	CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY	58905	-	-	-
6	NO. 1 POWER OUTLET SOCKET ASSEMBLY	85530	(202201,999999,_58,_112291,_0501086,RM100000001Z4VJ_01_0104,)	-	-
7	NO. 1 POWER OUTLET SOCKET COVER	85535B	-	-	-
8	USB CHARGER SOCKET	85532	(202201,999999,_58,_112291,_0501086,RM100000001Z4VJ_01_0106,)	-	-
9	REAR CONSOLE BOX	58911H	-	-	-
10	CONSOLE COMPARTMENT DOOR CUSHION	58959B	(202201,999999,_58,_112291,_0501086,RM100000001Z4VJ_01_0094,)	-	-
11	CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY	58908A	-	-	-

*A	for USB Single Charger Socket	*B	for USB Double Charger Socket
*C	w/ Rear Air Duct	-	-

PROCEDURE

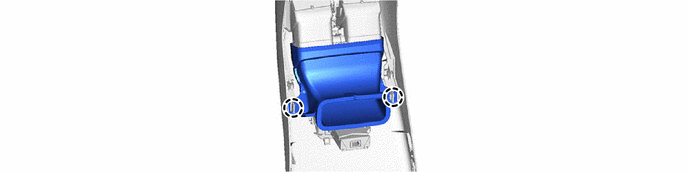

Hide Display 58863C 1.REMOVE NO. 3 CONSOLE BOX DUCT (w/ Rear Air Duct)

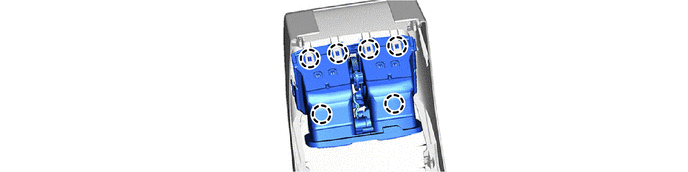

Hide Display 58860A 2.REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Rear Air Duct)

Hide Display 85532C 3.REMOVE NO. 2 USB CHARGER SOCKET (for USB Double Charger Socket)

Click hereVehicle Interior>POWER OUTLETS (INT)>POWER OUTLET SOCKET>REMOVAL202201,999999,_58,_112290,_0501083,RM100000001Z4VB_01_0043,

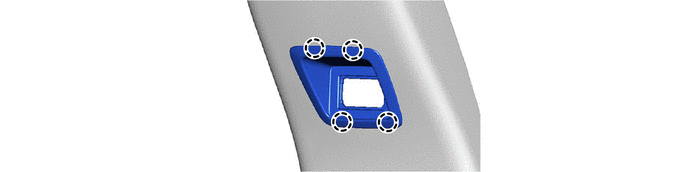

Hide Display 58924A 4.REMOVE NO. 2 CONSOLE REAR END PANEL (for USB Double Charger Socket)

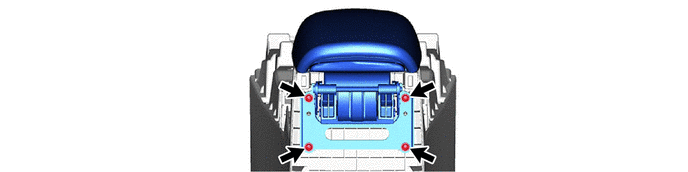

Hide Display 58905 5.REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

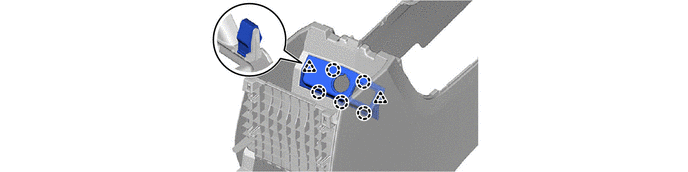

Hide Display 85530 6.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

Click here(

202201,999999,_58,_112290,_0501083,RM100000001Z4VB_01_0031,)

Hide Display 85535B 7.REMOVE NO. 1 POWER OUTLET SOCKET COVER

Click hereVehicle Interior>POWER OUTLETS (INT)>POWER OUTLET SOCKET>REMOVAL202201,999999,_58,_112290,_0501083,RM100000001Z4VB_01_0032,

Hide Display 85532 8.REMOVE USB CHARGER SOCKET (for USB Single Charger Socket)

Click here(

202201,999999,_58,_112290,_0501083,RM100000001Z4VB_01_0042,)

Hide Display 58911H 9.REMOVE REAR CONSOLE BOX

Hide Display 58959B 10.REMOVE CONSOLE COMPARTMENT DOOR CUSHION

0.375,0.031 0.708,0.292 0.333,0.26 18 false i

Remove in this Direction

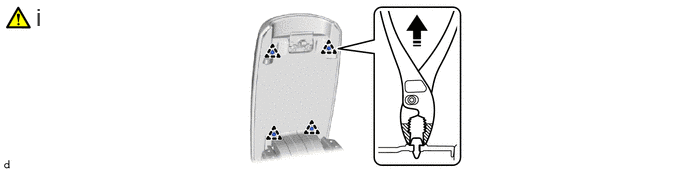

Using pliers with its tip wrapped with protective tape, disengage the clips to remove the 4 console compartment door cushions as shown in the illustration.

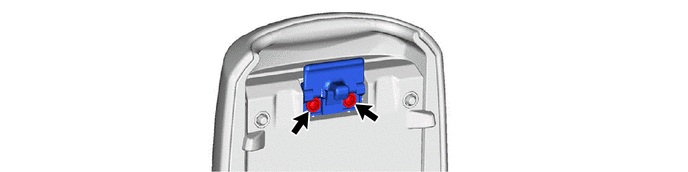

Hide Display 58908A 11.REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
