LIGHTING (INT)  REAR DOOR COURTESY SWITCH  INSPECTION

2.781,1.344 3.198,1.594 0.417,0.25 1.146,1.271 0.698,1.542 true 0.167,0.167 0.49,0.469 0.323,0.302 10 false *a 0.542,1.51 0.865,1.813 0.323,0.302 10 false *b 2.854,1.385 3.313,1.583 0.458,0.198 10 false O31

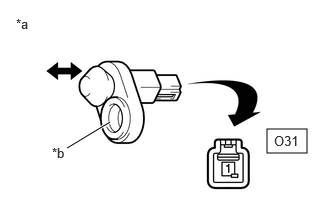

*a	Component without harness connected (Rear Door Courtesy Light Switch Assembly LH)
*b	Switch Body

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O31-1 - Switch body	Not pushed (ON)	Below 1 Ω
O31-1 - Switch body	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace the rear door courtesy light switch assembly LH.

2.792,1.333 3.208,1.583 0.417,0.25 1.135,1.26 0.688,1.531 true 0.167,0.167 0.49,0.469 0.323,0.302 10 false *a 0.521,1.49 0.844,1.792 0.323,0.302 10 false *b 2.875,1.365 3.333,1.563 0.458,0.198 10 false O34

*a	Component without harness connected (Rear Door Courtesy Light Switch Assembly RH)
*b	Switch Body

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
O34-1 - Switch body	Not pushed (ON)	Below 1 Ω
O34-1 - Switch body	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace the rear door courtesy light switch assembly RH.
