LIGHTING (INT)  BACK DOOR COURTESY SWITCH  INSPECTION

1.708,3.385 2.104,3.615 0.396,0.229 2.073,4.063 2.438,4.448 true 2.219,1.125 2.625,1.479 true 2.229,3.042 2.635,3.396 true 1.896,4.073 1.896,4.427 true 1.302,4.49 1.719,4.073 true 1.125,3.51 1.438,3.708 0.313,0.198 10 false *c 0.583,0.135 0.896,0.333 0.313,0.198 10 false *a 0.625,1.948 0.938,2.146 0.313,0.198 10 false *b 2.688,1.417 3,1.615 0.313,0.198 10 true *d 2.698,3.313 3.01,3.51 0.313,0.198 10 true *d 2.49,4.385 3.104,4.583 0.615,0.198 10 false ACT+ 1.76,4.438 2.375,4.635 0.615,0.198 10 false ACT- 1.01,4.417 1.417,4.594 0.406,0.177 10 false D+ 1.813,3.406 2.125,3.604 0.313,0.198 10 false U4

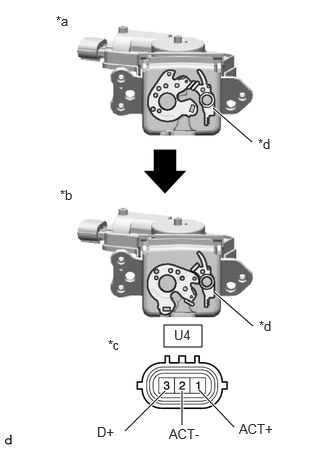

*a	Unlock
*b	Lock
*c	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*d	Latch

Move the back door lock with courtesy light switch assembly to the lock position.

1.5,2.146 1.885,2.375 0.385,0.229 0.906,3.083 1.5,2.833 true 1.917,2.833 2.469,3.042 true 0.948,0.917 1.177,1.125 0.229,0.208 10 true *b 1.688,0.917 1.917,1.125 0.229,0.208 10 true *c 0.958,2.375 1.188,2.583 0.229,0.208 10 false *a 1.771,1.917 2,2.125 0.229,0.208 10 true *b 0.938,1.917 1.167,2.125 0.229,0.208 10 true *c 0.646,3.063 0.875,3.271 0.229,0.208 10 false M+ 2.542,2.99 2.771,3.198 0.229,0.208 10 false M- 1.583,2.177 2.042,2.375 0.458,0.198 10 false U18

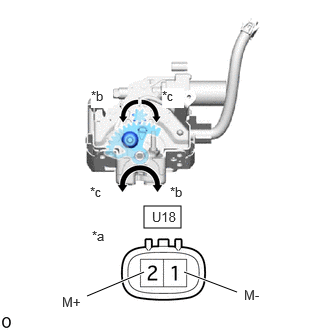

*a	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*b	Close Operation Direction
*c	Open Operation Direction

Apply auxiliary battery voltage and check the operation of the closer motor.

OK:

Tester Connection	Condition	Specified Condition
U18-1 (M-) - U18-2 (M+)	U18-1 (M-) → Auxiliary battery positive (+) U18-2 (M+) → Auxiliary battery negative (-)	Open Operation
U18-1 (M-) - U18-2 (M+)	U18-2 (M+) → Auxiliary battery positive (+) U18-1 (M-) → Auxiliary battery negative (-)	Close Operation

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

1.51,2.021 1.938,2.281 0.427,0.26 1.927,2.781 2.333,2.646 true 1.063,2.677 1.51,2.792 true 1.792,0.396 2.01,0.615 2.01,0.615 2.26,0.615 true 1.969,0.115 2.281,0.313 0.313,0.198 10 false *e 1.573,0.073 1.885,0.271 0.313,0.198 10 false *d 0.698,0.375 1.01,0.573 0.313,0.198 10 false *c 0.219,1.115 0.531,1.313 0.313,0.198 10 false *b 2.406,2.552 2.865,2.75 0.458,0.198 10 false CLS 0.896,2.594 1.354,2.792 0.458,0.198 10 false E 0.146,0.615 1.063,0.813 0.917,0.198 10 false 37°26' 0.948,0.208 1.865,0.406 0.917,0.198 10 false 37°23' 2.323,0.542 3.24,0.74 0.917,0.198 10 false 13°43' 1.115,1.969 1.427,2.167 0.313,0.198 10 false *a 1.604,2.063 2.063,2.26 0.458,0.198 10 false U17

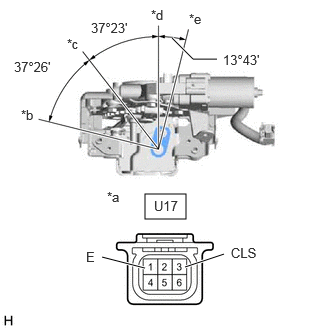

*a	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*b	Open Position
*c	Half-latch Position
*d	Full-latch Position
*e	Overstroke Position

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U17-3 (CLS) - U17-1 (E)	Open position	Below 1 Ω
U17-3 (CLS) - U17-1 (E)	Open position → Half-latch position	Below 1 Ω → 10 kΩ or higher
U17-3 (CLS) - U17-1 (E)	Half-latch position	10 kΩ or higher
U17-3 (CLS) - U17-1 (E)	Full-latch position	10 kΩ or higher
U17-3 (CLS) - U17-1 (E)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

1.531,2.01 1.948,2.25 0.417,0.24 1.125,3.115 1.51,2.948 true 1.073,2.552 1.531,2.781 true 1.792,0.396 2.01,0.615 2.01,0.615 2.26,0.615 true 1.969,0.115 2.281,0.313 0.313,0.198 10 false *e 1.573,0.073 1.885,0.271 0.313,0.198 10 false *d 0.698,0.375 1.01,0.573 0.313,0.198 10 false *c 0.219,1.115 0.531,1.313 0.313,0.198 10 false *b 0.823,3.073 1.281,3.271 0.458,0.198 10 false CTY 0.927,2.469 1.385,2.667 0.458,0.198 10 false E 0.177,0.729 1.094,0.927 0.917,0.198 10 false 37°26' 0.99,0.198 1.906,0.396 0.917,0.198 10 false 37°23' 2.323,0.542 3.24,0.74 0.917,0.198 10 false 13°43' 0.875,2.073 1.188,2.271 0.313,0.198 10 false *a 1.615,2.031 2.073,2.229 0.458,0.198 10 false U17

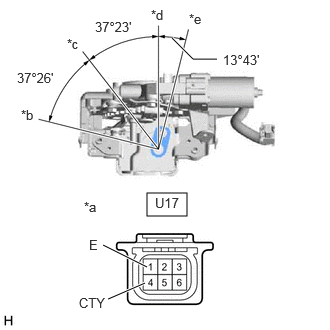

*a	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*b	Open Position
*c	Half-latch Position
*d	Full-latch Position
*e	Overstroke Position

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U17-1 (E) - U17-4 (CTY)	Open position	Below 1 Ω
U17-1 (E) - U17-4 (CTY)	Half-latch position	Below 1 Ω
U17-1 (E) - U17-4 (CTY)	Half-latch position → Full-latch position	Below 1 Ω → 10 kΩ or higher
U17-1 (E) - U17-4 (CTY)	Full-latch position	10 kΩ or higher
U17-1 (E) - U17-4 (CTY)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

1.51,2.01 1.917,2.292 0.406,0.281 1.719,2.719 2.083,2.333 2.083,2.333 2.354,2.333 true 1.083,2.667 1.51,2.771 true 1.792,0.396 2.01,0.615 2.01,0.615 2.26,0.615 true 1.969,0.115 2.281,0.313 0.313,0.198 10 false *e 1.573,0.073 1.885,0.271 0.313,0.198 10 false *d 0.698,0.375 1.01,0.573 0.313,0.198 10 false *c 0.219,1.115 0.531,1.313 0.313,0.198 10 false *b 2.448,2.25 2.906,2.448 0.458,0.198 10 false FSW 0.948,2.594 1.406,2.792 0.458,0.198 10 false E 0.167,0.76 1.083,0.958 0.917,0.198 10 false 37°26' 0.969,0.167 1.885,0.365 0.917,0.198 10 false 37°23' 2.323,0.542 3.24,0.74 0.917,0.198 10 false 13°43' 0.802,2.083 1.115,2.281 0.313,0.198 10 false *a 1.594,2.073 2.052,2.271 0.458,0.198 10 false U17

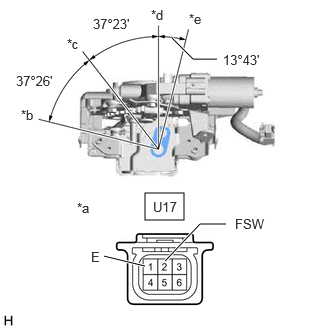

*a	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*b	Open Position
*c	Half-latch Position
*d	Full-latch Position
*e	Overstroke Position

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U17-2 (FSW) - U17-1 (E)	Open position	10 kΩ or higher
U17-2 (FSW) - U17-1 (E)	Open position → Half-latch position	10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
U17-2 (FSW) - U17-1 (E)	Half-latch position	10 kΩ or higher
U17-2 (FSW) - U17-1 (E)	Half-latch position → Full-latch position	10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
U17-2 (FSW) - U17-1 (E)	Full-latch position	10 kΩ or higher
U17-2 (FSW) - U17-1 (E)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

1.49,2.052 1.885,2.26 0.396,0.208 1.021,2.635 1.458,2.708 true 1.927,2.885 2.354,3.01 true 2.396,2.99 2.854,3.188 0.458,0.198 10 false OPN 0.885,2.542 1.344,2.74 0.458,0.198 10 false E 0.958,2.25 1.271,2.448 0.313,0.198 10 false *a 1.031,0.469 1.344,0.667 0.313,0.198 10 false *b 1.563,2.083 2.021,2.281 0.458,0.198 10 false U17

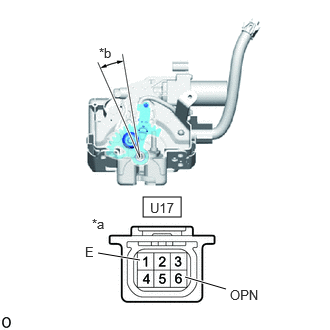

*a	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)
*b	Sector Gear in Neutral Position

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
U17-6 (OPN) - U17-1 (E)	Sector gear in neutral position (Sector switch on)	Below 1 Ω
U17-6 (OPN) - U17-1 (E)	Sector gear not in neutral position (Sector switch off)	10 kΩ or higher

If the result is not as specified, replace the back door lock with courtesy light switch assembly.
