RM38T0EC _58 Vehicle Interior _112288 LIGHTING (INT) _0501077 AMBIENT LIGHT A

LIGHTING (INT)  AMBIENT LIGHT  REMOVAL


CAUTION / NOTICE / HINT

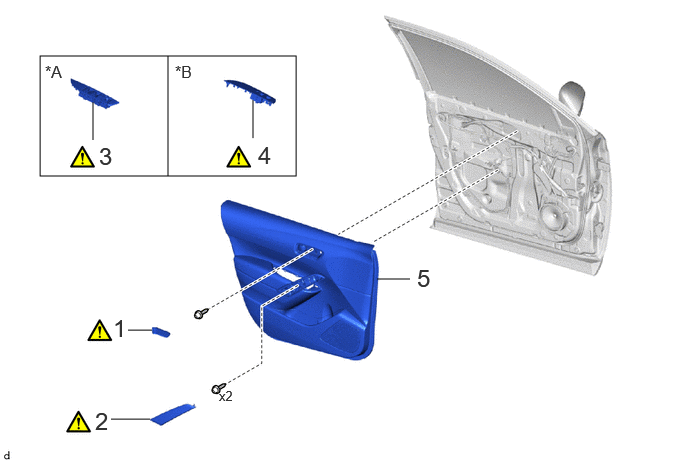

COMPONENTS (REMOVAL)
E472754N01
0.417,0.583 3.083,1.833 2.667,1.25 1.75,1.833 1.75,0.583 false 1.333,3.438 1.583,3.438 false 0.969,1.063 0.969,1.458 false 1.156,4.365 1.563,4.365 false 2.635,1.042 2.635,1.438 false 3.927,2.906 4.271,2.906 false 0.469,0.646 0.844,0.885 0.375,0.24 12 false *A 1.823,0.646 2.198,0.885 0.375,0.24 12 false *B 1.177,3.271 1.458,3.625 0.281,0.354 18 false 1 0.99,4.24 1.271,4.594 0.281,0.354 18 false 2 1.031,1.479 1.313,1.833 0.281,0.354 18 false 3 2.688,1.469 2.969,1.823 0.281,0.354 18 false 4 4.344,2.75 4.625,3.104 0.281,0.354 18 false 5 2.281,4.042 2.594,4.24 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT DOOR INSIDE HANDLE BEZEL PLUG 69284F (Click here) - -
2 DOOR ASSIST GRIP COVER 74646 (Click here) - -
3 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - (Click here) - -
4 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - (Click here) - -
5 FRONT DOOR AMBIENT LIGHT (FRONT DOOR TRIM BOARD SUB-ASSEMBLY) 67602 - - -

*A for Driver Side *B for Front Passenger Side

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 3.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Z101186

Click here(Click here)

Hide 4.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Z101186

Click here(Click here)
